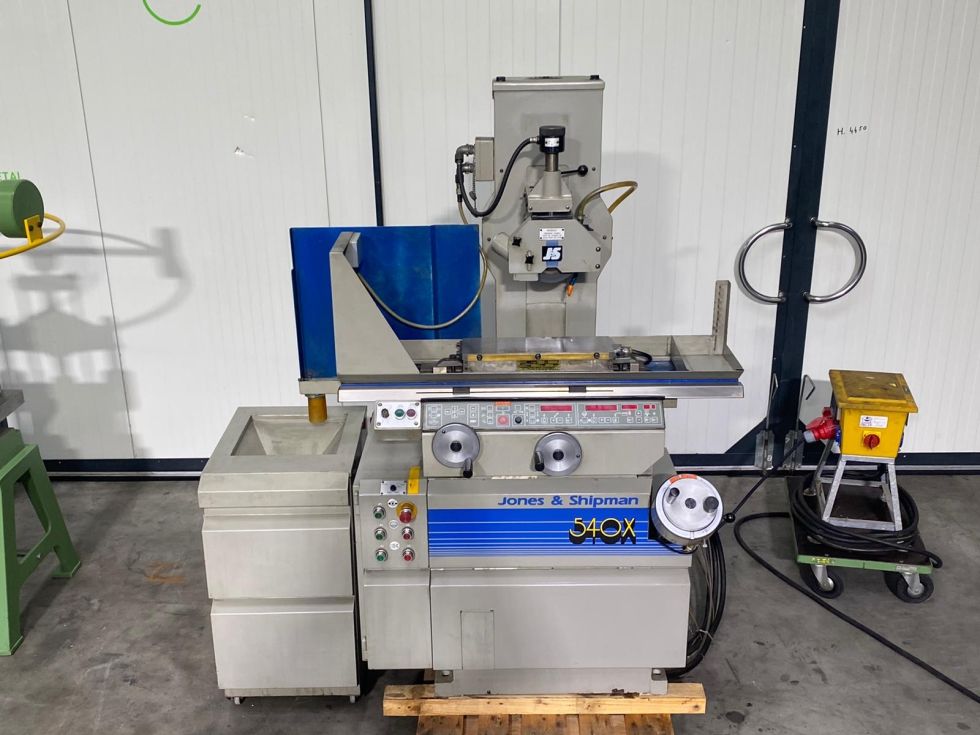

Surface grinder JONES & SHIPMAN - 540X

Auto cyclus with down feed
Coolant system
Digital read out system positioning axis
Digital read out system feed rate / rapid

X - Travel:              470mm
Y - Travel:              171mm
Z - Travel:              400mm
Table Length:            450mm
Table Width:             150mm
Table load:              100
Feed rate X-Axis:        25000mm/min.
Feed rate Z-Axis:        5000mm/min.
Grinding stone dimensions:200 x 19 x 31,75mm
Power:                   1,5kW
Speeds:                  2640Rpm
Cooling system:          Yes
Length:                  2000mm
Width:                   1200mm
Height:                  1800mm
Weight:                  1200kg
