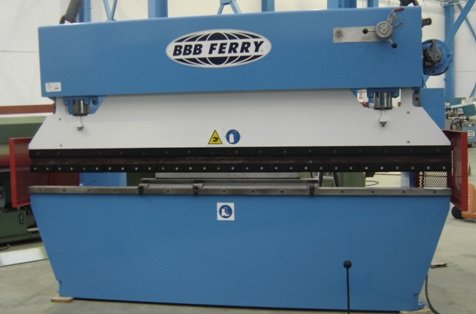

Plegadora hydraulics Ajial of 3.000x50t
|
Details of manufacture
Balanced mechanic: Is indispensable, can not damage and does not need maintenance.
- Guide of steel cromado hard and rectified: Friction on Celeron, does not need maintenance.
- The quality of the folded depends on the rigidity of the elements that constitute the machine. Two pieces of the same section under the action of a same strength F, the fatigue multiplies by 2 and the arrow x4 any one that was the resistance of the sheet used, therefore the table normalised AJIAL chooses the most favourable section.
Regulation of speed of folded:
Speed of approximation with 2 models of course:
- Sensitiva for regulations and unitary pieces
- Automatic for works in series
slow Speed of folded that avoids the “latigazo” and the “contrapliegue”
- Precision: In each cylinder a tope mechanical synchronised pre-regulale, is protected of all abrasive agent outside, lubrificado automatically and under pressesure, guaranteeing the precision of unemployment to 2/100mm constant Career, exact and faithful value penetration of the punzón in the matrix give resltados regular in all the works. Under each support of table exists a regulation of parallelism micrométrica.
Parallelism: Parallelism table-trancha rigorous in the low deadlock and folded exact thanks to the precision of unemployment in the low deadlock.
- Controls with pre-screens of career visualised: allow simple regulations and centralised
|
|
Main technical characteristics
|
| Length of folded
Length between totals
Strength of work regulable
Neck of swan
Strength of shrinking
Career regulable
Width of table
Distance table-trancha
Height table-floor
Speed of approximation
Speed of work
Speed of Rise
It improves engine
Deposit of oil
Length
Width
Height
Weight |
3.050 mm
2.500 mm
0-50 tms
400 mm
8 tms
7 - 100 mm
100 mm
300 mm
850 mm
50 mm/seg.
9 mm/seg.
57 mm/seg.
5.5 cv
100 l
3.200 mm
1.750 mm
2.040 mm
4.000 kgs.
|
