Hydraulics cutting cutting shears ajial of 3000x4mm

Geographic location
Spain / Griñón (Madrid)
View phone
ClassificationHydraulic ironworkers
NameHydraulics cutting cutting shears Ajial of 3000x4mm
Customer reference2748
Incorrect year
Details
hydraulics Cutting cutting cutting shears Ajial of 3.000x4mm

Main   technical characteristics
Length of cutting Thickness maximo Angulo Of cutting It improves engine Number of cuttings by minute Distance between totals Trip of the tope Profuncidad Neck of swan Weight Dimensions   (largoxanchoxalto)

3.100 mm.

4 mm.

1º30´

7,5 cv.

20-30

3.250 mm.

800 mm.

310 mm.

4.6 tms.

3.680x1.820x1.340 mm.
Comments
  • Tope rear motorised
  • System of regulation of the thickness of   cutting
  • Manual of instructions

CONFIGURATION   OF THE MACHINE
  • System of pisador of hydraulics sheet allows the   perfect subjection of materials and is synchronised with the control of upper   blade
  • Pressesure of the pisadores with automatic increase in   function of the power of cut
  • Guided absolute without game without need of grease   and periodic regulation.
  • Robust topes rear that allow to fall the sheet   freely
  • Simplicity and efficiency in the adjust of blades   allows fast adjustments and insurance.
  • Lighting of the line of cut
                                                                    -  Movement   pendular of the upper blade allows to enter in a noticeably vertical plane   the 2 lines of attack to obtain a clean cut.

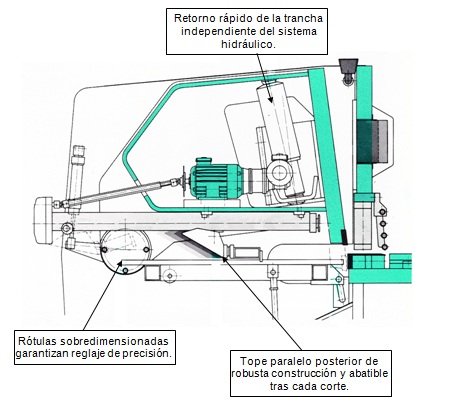

System of cut Ajial-Beyeler

StatusSegunda mano
Information last updated21/01/2019 15:08:58
