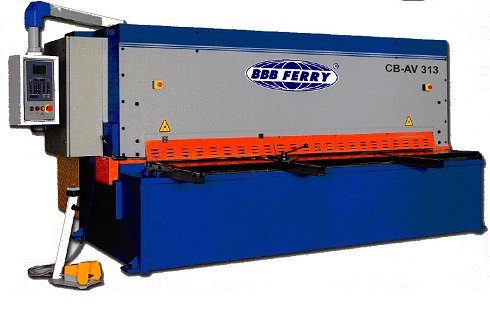

hydraulics Cutting cutting cutting shears of vertical cutting CNC FERRY CB-AV 613
|
| The concept of hydraulics cutting cutting shears of VARIABLE ANGLE bases mainly in the option to open or close the angle of cut in function of the thickness of the sheet. It is especially indicated for workshops where work thicknesses very diverse of usual form and mainly when it use in fine materials where the apply an angle of cut of 0,5º allows to cut throw narrow with a minimum revirado.
Another no present option in machines of cut pendular, is the possibility to cut sheets of upper thickness to the nominal of the machine, always in inferior lengths to the total |
|
|
|
technical Characteristics
|
| Length of cutting
Thickness máx. Of cutting (steel)
Thickness máx. Of cutting (inox)
Length of the tope
Angle of cutting
Number of pisadores
Number of cuttings
Power of engine
Separation of blades
Neck of swan
Weight |
6.100 mm
13 mm
8 mm
1.000 mm
0.5-2º
25
6-11 min
22 kw
0,05-1,5
350 mm
31 t
|
|
Configuration of the machine
|
| Frame and upper body
Previously to the welding, the sheet mechanises by means of a mandrinado of the sides and body of the machine. Afterwards it proceeds to his welding and again remandrina with what achieves delete the tensions produced by the soldeo. When mechanising in an alone positioning or palisade, reaches a perfect parallelism that results basic for the final result of the product.
With a process of exact manufacture to the previous, keeps like base a common robustness in all the machine. For the subjection of the bridge and avoid flexiones, the sheets that form the vertex of the basculante remain joined by an envolvente of the length of the machine with what achieve to do an alone body of extraordinary rigidity doing impossible the flexiones in the central part, so usual in other constructions. It achieves like this a perfect cut in all the length |
Control Cybelec DNC-60
- Separation of automatic blades from CNC.
- Hydraulics variation of the angle of cutting.
- Five pre–programmings according to quality or type of material.
- Memory of pieces.
- Automatic correction of the tope back.
- Programming and automatic trip of different measures of cut on a piece.
- Option of exit RS-232 and memory flash.
- Contador of pieces (total and partial).
- Multi Language.
- Screen LCD bicolor 75x13
|
|
| Tope backside of automatic trip until 1000mm with husillos to balls
The precision on this element is paramount, this cutting cutting shears incorporates a tope back with two groups composed of individual form by guide and husillo to balls that guarantee a perfect trip with a precise measure for ever.
The transversal bar that conforms the support of the sheet comes rectified with possibility of mechanical regulation by sectors correcting if it was the case the unfit that the hits of the sheet can arrive to ocasionar.
The useful route of this tope arrives to 1000 mm where by means of a mechanical device elevates the sufficient to allow the step of the sheet and effect
A cut to upper depth. In this case the reference effects by
The leading console that would give the measure wished. Also it incorporates a system of retracción that avoids the deformation and brush during the cut. The trip and programming effects of automatic form. (See separated CONTROL CYBELEC DNC 60 G)
|
| Regulation of separation of automatic blades:
To attain a cut without rebabas is necessary to adjust the separation of upper and inferior blades in function of the thickness and material to cut. In the range CB-AV realizar of automatic form
|
| Table of balls:
To facilitate slide of the sheet in all the length of the machine. |
| Line of cut lit |
|
Console of escuadrar milimetrada with tope abatible
In the left part where the angle of cut is more enclosed comes mounted the console of escuadrar. |
|
| Two leading supports of sheet
For the ones of greater width the machine has of two supplementary consoles situated in the centre and right extreme of the machine that bear all the sheet. |
| Contador of pieces |
| Length of cut regulable from cnc |

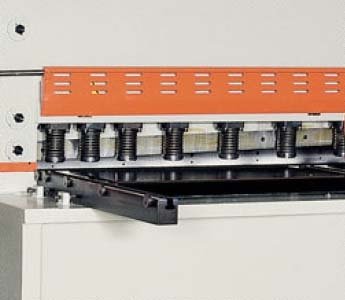

| Pisadores hydraulics of sheet:
They descend hidráulicamente what allows a tighten regulable according to the thickness and hardness of the sheet to cut. In the part that contacts with the material has of a arandela of teflon to avoid lines and marks in sheets pulidas. The recovery is also regulable. By reasons of hygiene the machine protects in the frontal part with a metallic grille. It can open in a stretch of 1 metres to enter sheets traced and facilitate the cut that has to do after closing the grille and reiniciar the course |
| Rejilla leading abatible |
| electrical Installation and Norms CE:
The electrical picture is mounted with elements of market of the best quality, with the ideal components to incorporate the compound hygiene by the photoelectric cells, unemployments of emergency and other elements demanded by the normative CE. The backside is also protected with the inclusion of lateral doors until the length of the tope
|
|
|---|
