Plegadora hydraulics ajial of 5.000x200t cnc 2 axles

Geographic location
Spain / Griñón (Madrid)
View phone
ClassificationCNC press brakes

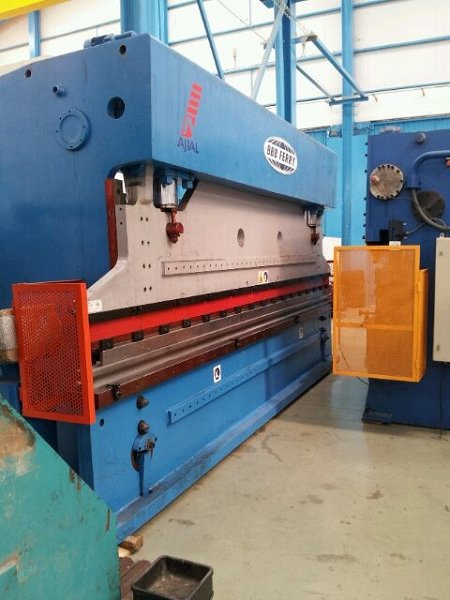

NamePlegadora Hydraulics Ajial of 5.000x200t CNC 2 axles
Customer reference2438
Incorrect year
DetailsPlegadora Hydraulics Ajial of 5.000x170t CNC 2 axles Characteristic technical:
  • free Step between totals: 4.100
  • Length of table:5.050mm
  • Power in tonnes (regulable):170t
  • Power of shrinking: 24t
  • Career regulable: 7-250mm
  • Neck of swan: 300mm
  • Wide of table: 190mm
  • Distance table-trancha: 500mm
  • Speed of work: 6.8mm/seg
  • Speed of rise: 18mm/seg
  • Improves of engine: 15cv
  • Dimensions (largoxanchoxalto): 5.160x1.630x2.920mm
  • Weight: 19t
  • Deposit of oil: 330l
  • Normative of hygiene
CNC 1 axis Quality of folded ensured with system COLLY: The quality of the folded depends on the rigidity of the elements that constitute the machine. Two pieces of the same section under the action of a same strength F, the fatigue multiplies by 2 and the arrow x4 any one that was the resistance of the sheet used, therefore the plegadora Ajial integrates:
  •  Table normalised AJIAL manufactured with the most favourable section according to the Theory of the Flexión to minimise the maximum possible this effect.
  • Balanced mechanic: it Is indispensable for the precision of the folded, can not damage and does not need maintenance.
  • Guides in steel cromado hard rectified.
  • Friction on Celeron, does not need maintenance.
Regulation of speed of folded: Speed of approximation with 2 models of course:
  • Sensitiva for regulations and unitary pieces.
  • Automatic for works in series.
Slow speed of folded that avoids the “latigazo” and the contrapliegue. Precision: In each cylinder a tope mechanical synchronised pre-regulale, is protected of all abrasive agent outside, lubrificado automatically and under pressesure, guaranteeing the precision of unemployment to 2/100mm. Constant career, exact and faithful value penetration of the punzón in the matrix give regular results in all the works. Under each support of table exists a regulation of parallelism micrométrica. Parallelism Parallelism table-trancha rigorous in the low deadlock and folded exact thanks to the precision of unemployment in the low deadlock. Controls with pres-screens of career visualised: This type of control allow to realizar the regulations of a simple form and centralised.
StatusSegunda mano
Information last updated21/01/2019 15:08:58
