Rebordeadora sdk8

Geographic location
Spain / Griñón (Madrid)
View phone
ClassificationBeading machines
NameRebordeadora SDK8
Customer reference4114
Incorrect year

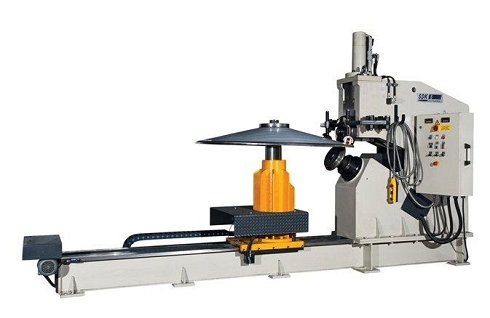

DetailsRebordeadora SDK8 The rebordeadora SDK8 is a machine of robust construction contrived to obtain the bottoms of deposits and cisternas. This machine can cut and realizar the edge of the same piece so only with a small change of the tool that mounts in his cabezal. Rebordeadora Of bottoms of very simple handle and big provision, ideal to finish cisternas, silos, deposits and pressesure vessels. Characteristic technical:
  • Maximum diameter of dish: 4.500m
  • Minimum diameter of dish: 720mm
  • Irradiate maximum of the rebordeado: 100mm
  • maximum Thickness of material (ironinging): 8mm
  • maximum Thickness of material (inox): 5mm
  • adjustable Speed: 0,35-0,68 m / min
  • Improves engine: 11kw
  • total Length: 4.600mm
  • total Width: 1.250mm
  • total Height: 2.700mm
  • Weight: 4.400kgs
standard Equipment:
  • A game of rollers of rebordeado included. (R25)
  • A game of blades of included cut.
  • Two speeds of rotation of the car.
  • The rollers of rebordeado accionan by means of motors hydraulics independent joined up to reductores of planetary speed
  • Can realizar so much cover flat like topped (Chinese hat), with a simple change of the tool of rebordeado.
  • Adjustable background height hidráulicamente so much flat or topped.
  • The operation of cutting realizar in the same head that the rebordeado, so only change  the tools by blades of cutting.
Optional accessories:
  • Rollers to widen.
  • RB: 50mm
  • RB: 75mm
  • RB: 100mm
  • Game of blades of cut

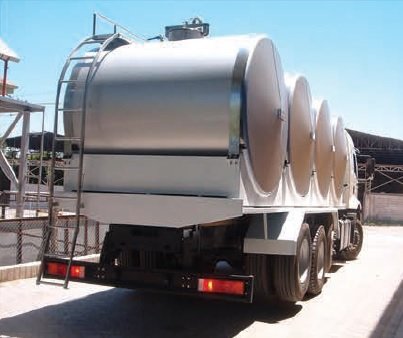

Example of works realizar:
StatusSegunda mano
Information last updated21/01/2019 15:08:58
