| Classification | Band saws |
|---|---|
| Name | It band saws for cut of panels Opus 1500SL |
| Customer reference | 4007 |
| Incorrect year | |
| Details |

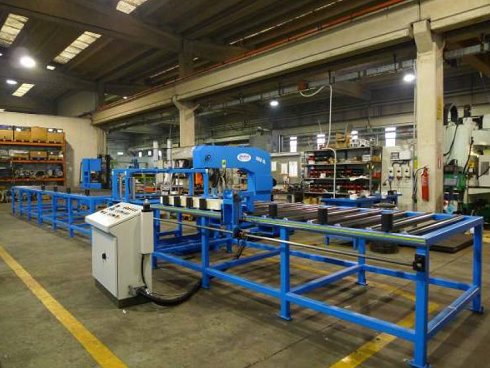

Sierra of strip for cut of panels Opus 1500SL
The machine OPUS 1500SL is manufactured in steel electrosoldado and normalised. It is a machine with mobile arch. Characteristic technical:Neck column: 1400mm Diameter of the steering wheels: 500mm Number of steering wheels: 3 Maximum thickness: 600mm Route of the arch: 1000mm Wide strip: 20mm Length strip: 5.670mm Speed strip: 20-120mt/min Improves main engine: 4Kw Improves hydraulics engine: 0,75 kw Height of gone out pieces Aprox.: 1000mm Details of manufacture:The arch is realizar in steel electrosoldado and normalised. Inside the arch there are 3 steering wheels:

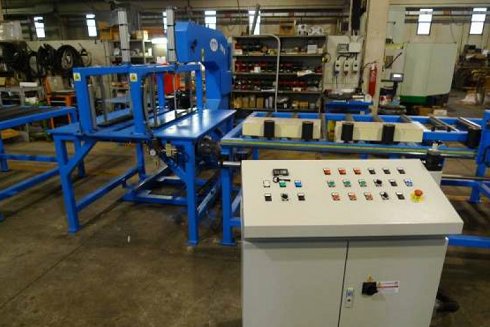

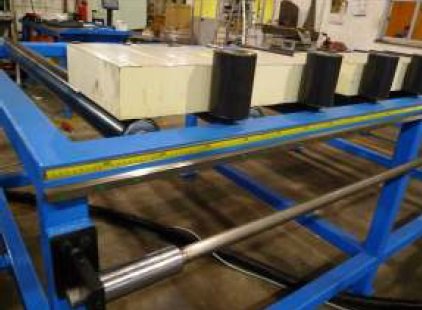

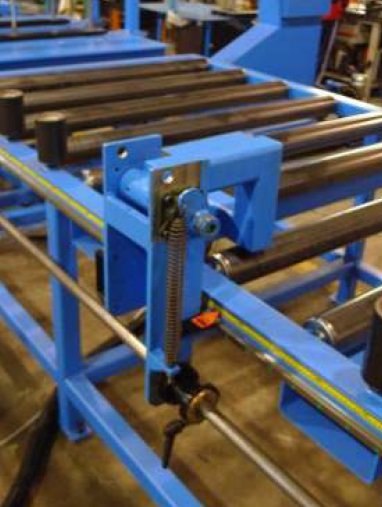

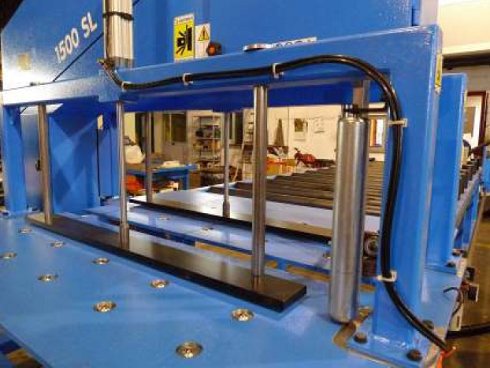

The engine of the strip is accionado by an inverter. The speed can modify in the remote control (mt/min). The steering wheels are protected by solid cover with finals of career of hygiene that avoid that it realizar any dangerous movement while you cover them are open. The arch glides on two linear guides, accionadas by a hydraulics cylinder. The speed of advance can adjust by means of the hydraulics regulator. In the base of the machine finds the hydraulics deposit. The table is done of steel and is fixed. It is instrumented with screws of nivelación, on her situate two mordazas pneumatics vertical and spheres that help to the operario to move the material in position. The strip guides in two positions: one under the table (inferior guide) and the another on an arm regulable (upper guide). Both are done with in function of the thickness to cut. Both are done with plates of adjustable hard metal. The arm guides upper scrolls up and downwards. Can regulate by means of a manual steering wheel. This semi-automatic saw is controlled by PLC LOGO Siemens. The auxiliary voltage is to 24VAC, of agreement to the norms CE on this subject. The electrical cupboard comes refrigerated by means of ventilation forced. The signpost of control is done with pulsadores of Telemecanique (level of protection IP65) The signpost of control is in an ergonomic position in the frontal part of the machine. The hydraulics tank has a capacity of 15 litres. The bomb is of fixed flow. The hydraulics group is situated inside the base of the machine The group electrovalves mounted on the tank is of the type Duplomatic. In the same position there is regulatory of pressesure and pressesure gauges for the different functions of the machine. Included accessories in machine:
|
| Status | Segunda mano |
| Information last updated | 21/01/2019 15:08:58 |
