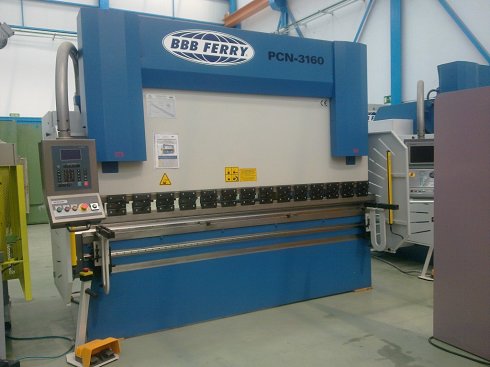

| Details | Plegadora Electronic Ferry PCN 3160 to 3 axles (And1 - And2 - X)
Characteristic technical:
- Length of folded: 3.100 mm.
- Distance between totals: 2.550 mm.
- Improves of machine: 160 tms.
- Neck of swan: 400 mm.
- Career of the cylinder: 180 mm.
- Distance table-trancha: 429 mm.
- Visited tope rear: 800 mm.
- Height of work: 900 mm.
- Speed of approximation (adjustable): 0-11 mm/seg.
- Speed of work (adjustable): 10 mm/seg.
- Speed of shrinking: 90 mm/seg.
- Improves of engine 15 kw.
- Capacity deposit of oil 185 l.
- Dimensions:
- Wide total: 2.150nmm
- Wide of table: 220mm
- Wide of machine: 1.570mm
- Long total: 4.550mm
- High total: 2.650mm.
- Weigh approximated 9,5 tms.
Other details:
- numerical Control CYBELEC DNC 60 PS with exit RS-232:
- Memory of punchers and matrices (20 matrices, 30 punchers)
- Memory of 999 programs of 13 folded each one
- 99 options of repetition by fold
- Big precision of positioning with adjust of speed, pressesure and parallelism
- Adjust of the speed of work and of the fast speed
- independent Correction of the axles and-1, and-2
- Retracción of the axis x automatic or programmable
- Time of wait under programmable pressesure
- Adjust of the career in the pagina main of the control
- Point of the change of slow fast/speed regulable with programming (point mutate)
- Sequences of folded programmable
- Information in screen of the position of the material (obverse-reverso)
- Possibility to effect folded curvados with the introduction of the radius and step wished
- Keyboard of membrane with luminous warnings
- Rs-232 for extraction equipment equipment of data
- automatic Conversion of different systems of measure
- Axles and-1, and-2 synchronised by means of encoder linear with a precision of 0,01 mm.
- 5 bridas by metre with blocaje fast for support of punzón
- Punchers treated to 140 kgs. Stretches of 835 mm to all the length of the machine
- 1 punzón equal to the previous fractionated in several stretches with bigornias lateral
- Matrix with 4 mouths width 60 mm in stretches of 835 mm to all the length of the machine
- Table cashier autocentrante: it allows to adapt and centre fast and effectively the matrices, optimising the timepos died of adjust.
- Neck of standard swan of 400 mm
- Two leading supports of sheet deslizantes.
- Normative of hygiene by curtains
|
|---|
