Plegadora electronica ferry pcn-6200 of 6.000x200t

Geographic location
Spain / Griñón (Madrid)
View phone
ClassificationCNC press brakes
NamePlegadora electronica Ferry PCN-6200 of 6.000x200t
Customer reference739
Incorrect year

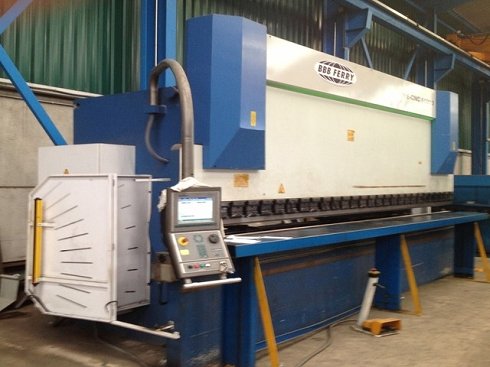

DetailsPlegadora electronica Ferry PCN-6200 of 6.000x200t The plegadora electronic Ferry PCN, is a machine of big provision and precision. This model of plegadora builds with robust freamers and all his elements are synchronised, allowing facilitate and simplify the folded. Plegadora Electronic to 3 axles Ferry PCN 6000x300t technical Characteristics:
  • Length of folded: 6.100 mm.
  • Distance between totals: 5.100 mm.
  • Improves of machine: 200 tms.
  • Neck of swan: 400 mm.
  • Career of the cylinder: 250 mm.
  • Distance table-trancha: 520 mm.
  • Visited tope rear: 800 mm.
  • Height of work: 1.000 mm.
  • Speed of approximation (adjustable): 0-11mm/seg.
  • Speed of work (adjustable): 8mm/seg.
  • Speed of shrinking: 90 mm/seg.
  • Improves of engine: 20 kw.
  • Capacity deposit of oil: 185 l.
  • Wide total: 2.450mm
  • Wide of table: 300mm
  • Wide of machine: 1.800mm
  • Long total: 7.500mm
  • High total: 3.050mm
  • approximate Weight 29 tms.
Other details:
  • numerical Control CYBELEC DNC 60 PS with exit RS-232:
  • Memory of punchers and matrices (20 matrices, 30 punchers)
  • Memory of 999 programs of 13 folded each one
  • 99 options of repetition by fold
  • Big precision of positioning with adjust of speed, pressesure and parallelism
  • Adjust of the speed of work and of the fast speed
  • independent Correction of the axles and-1, and-2
  • Retracción of the axis x automatic or programmable
  • Time of wait under programmable pressesure
  • Adjust of the career in the pagina main of the control
  • Point of the change of slow fast/speed regulable with programming (point mutate)
  • Sequences of folded programmable
  • Information in screen of the position of the material (obverse-reverso)
  • Possibility to effect folded curvados with the introduction of the radius and step wished
  • Keyboard of membrane with luminous warnings
  • Rs-232 for extraction equipment equipment of data
  • automatic Conversion of different systems of measure
  • Axles and-1, and-2 synchronised by means of encoder linear with a precision of 0,01 mm.
  • 5 bridas by metre with blocaje fast for support of punzón
  • Punchers treated to 140 kgs. Stretches of 835 mm to all the length of the machine
  • 1 punzón equal to the previous fractionated in several stretches with bigornias lateral
  • Matrix with 4 mouths width 60 mm in stretches of 835 mm to all the length of the machine
  • Table cashier autocentrante: it allows to adapt and centre fast and effectively the matrices, optimising the timepos died of adjust.
  • Neck of standard swan of 400 mm
  • Two leading supports of sheet deslizantes.
  • Normative of hygiene by curtains
StatusSegunda mano
Information last updated21/01/2019 15:08:58
