Hydraulics cutting cutting shears mebusa ch-3054/s

Geographic location
Spain / Griñón (Madrid)
View phone
ClassificationIronworkers

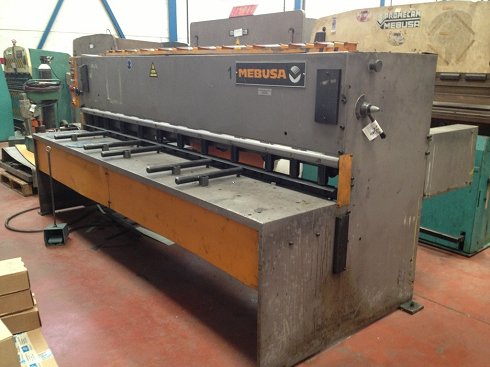

NameHydraulics cutting cutting shears Mebusa CH-3054/S
Customer reference2468
Incorrect year
DetailsHydraulics cutting cutting shears Mebusa CH-3054/S Characteristic technical: Length of cutting: 3.050mm Thickness of cutting: 4mm Angle of cutting: 1.5º Number of cuttings: 30 to 100 you cut/min Visited of tope: 725mm Neck of swan: 60mm It improves engine: 7.5cv Dimensions (long x wide x high): 3.875 x 1.875 x 1.530mm Weight aprox.: 3.900mm Other details:
  • Big capacity of cut for special thicknesses: the specific design of the cutting cutting shears Mebusa allows the cut of upper thicknesses to the nominal of the length of the machine. The strength of cut is increased by a special device of subjection, guaranteeing the robustness and precision in any operation and doing that so much frame like board bear efforts with maximum thicknesses.
  • With any need that can pose has an effective solution in Mebusa since it has of a wide range of accessories and adaptable standard equipment to the cutting cutting shears.
  • Regulation of game/angle between blades: The new generation of cutting cutting shears Mebusa suppresseses practically the defects of albeo, arrow or curvado. For the models until thicknesses of 4mm the regulation is exclusively of game of cut by parallel slide of the board and for thicknesses of 6 to 10mm the regulation can be so much of game as of angle.
  • Rigidity of the frame: The special design of the frame Mebusa grantiza to the group a stable base and a robustness to all proof.
  • Tope Rear independent of the upper board: the fixation of the tope rear to the table that joins the two totals avoids that this bear the reactions of the cizallado, that prejudice the precision and cause the atascamiento of throw them of little width.
  • Guided without wear: The cutting cutting shears Mebusa have a guided of the upper board of exclusive conception that allows a perfect alignment in all the points of the line of cutting. This guided longitudinal deletes the deslizaderas or other pieces of friction and  does not need any entertainment.
  • Independent hydraulics group: The hydraulics group incorporates to the left side of the cutting cutting shears like an autonomous element, facilitating the manejabilidad in the works of entertainment and freeing the backside to incorporate, if it was necessary: peripherals of evacuation and/or storage.
Hydraulics cutting cutting shears Mebusa of 3000x4mm
StatusSegunda mano
Information last updated11/03/2024 15:15:18
