Plegadora of hydraulics compensation mebusa 203 of 3.000x200t

Geographic location
Spain / Griñón (Madrid)
View phone
ClassificationCNC press brakes

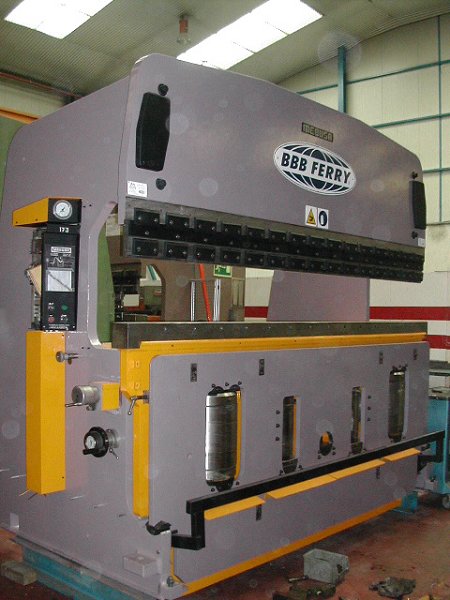

NamePlegadora Of hydraulics compensation Mebusa 203 of 3.000x200t
Customer reference2098
Incorrect year

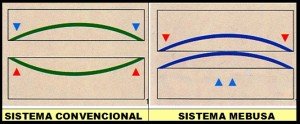

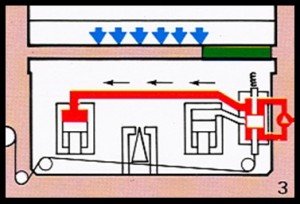

DetailsPlegadora Of hydraulics compensation Mebusa 203 of 3.000x200t The plegadora hydraulics Mebusa is one of the best machines that have manufactured in Spain and in all Europe. Has an exclusive system of folded known like Promecam that avoids the flexión of the sheet for a better finishing of the folds, that contributes without need of table of compensation of folded a quality inigualable. Besides, this system of folded has of other elements that differentiate it of the rest and turn it into only, like the regulator of pressesure: it allows to give pressesure to the folded, achieving open more or less the folds without need to move the ironinging of sheet to fold. Plegadora Of hydraulics compensation Mebusa PH-203 of 3.000x200t technical Characteristics: ? Length of folded: 3.100mm ? Power of folded: 200t ? It improves engine: 20cv ?Length of taleros: 3.150mm ?Neck of swan: 400mm Distance between totals: 2.600mm ?Length: 3.250mm ? Width: 1.950mm ? Height: 2.950mm ? Weight: 12t Details of the system of folded Promecam: SYSTEM OF FOLDED MEBUSA-PROMECAM is the result of more than 50 years of experience in the manufacture of machines of folded of precision.  It allows to obtain perfect finishings thanks to his only system of push central. The conventional system of folded presents big angular difference head office whereas the system MEBUSA minimises the deformations of the boards by means of a distribution of the efforts and a partial compensation with angular difference reduced. System of folded antiflexión Mebusa-Promecam PARALLELISM guaranteeed by means of integral systems of balanced hydraulics:

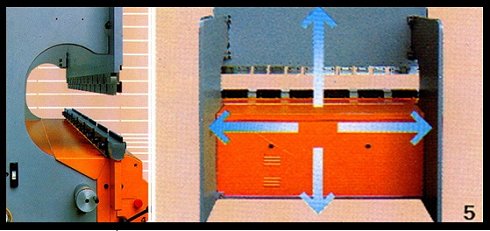

Structural design of the machine with big length in passing between totals and wide neck of swan takes advantage of the maximum useful space to allow folded of big depth and/or development. GUIDED OF PRECISION in longitudinal and transversal sense ensures a perfect alignment. Universal tooling PROMECAM
StatusSegunda mano
Information last updated21/01/2019 15:08:58
