Plegadora hydraulics mebusa ph-9030 tuned like new

Geographic location
Spain / Griñón (Madrid)
View phone
ClassificationCNC press brakes

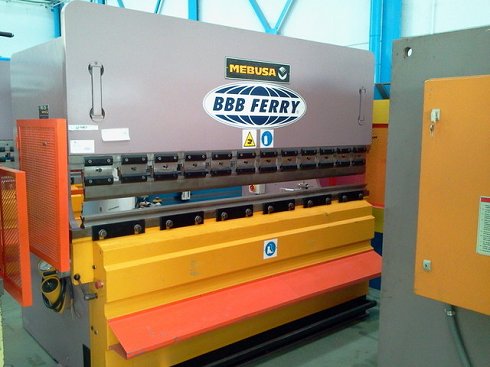

NamePlegadora Hydraulics Mebusa PH-9030 tuned like new
Customer reference2059
Incorrect year
DetailsPlegadora Hydraulics Mebusa PH-9030 of 3.000x90t tuned like new The plegadora hidraulica Mebusa is one of the best machines that have manufactured in Spain and in all Europe. Has an exclusive system of folded known like Promecam that avoids the flexión of the sheet for a better finishing of the folds, that contributes without need of table of compensation of folded a quality inigualable. Besides, this system of folded has of other elements that differentiate it of the rest and turn it into only, like the regulator of pressesure: it allows to give pressesure to the folded, achieving open more or less the folds without need to move the ironinging of sheet to fold. Characteristic technical: Length of folded: 3.100mm Power of folded: 90t It improves engine: 5,5cv Length of boards: 3.100mm Neck of swan: 400mm Career of cylinder: 100mm Distance between totals: 2.660mm Speed of work: 7mm/seg Speed of approximation: 45mm/seg Speed of shrinking: 80mm/seg. Total length: 3.350mm ? Width: 1.650mm ? Height: 2.235mm ? Weight: 5,1t Details of the system of folded Promecam: SYSTEM OF FOLDED MEBUSA-PROMECAM is the result of more than 50 years of experience in the manufacture of machines of folded of precision.  It allows to obtain perfect finishings thanks to his only system of push central. The conventional system of folded presents big angular difference head office whereas the system MEBUSA minimises the deformations of the boards by means of a distribution of the efforts and a partial compensation with angular difference reduced.

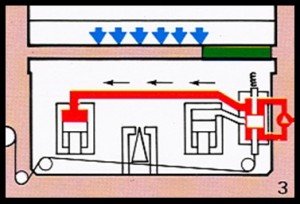

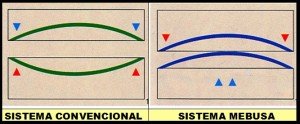

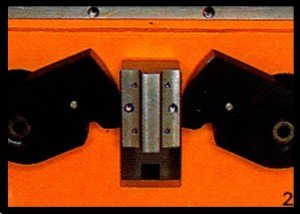

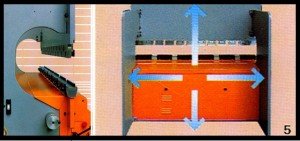

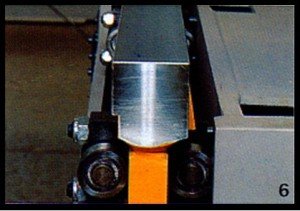

System of folded antiflexión Mebusa-Promecam PARALLELISM guaranteeed by means of integral systems of balanced mechanical (2) or hydraulics (3): System of mechanical parallelism Mebusa System of hydraulics parallelism Mebusa-Promecam Structural design of the machine with big length in passing between totals and wide neck of swan takes advantage of the maximum useful space to allow folded of big depth and/or development. GUIDED OF PRECISION in longitudinal and transversal sense ensures a perfect alignment. Universal tooling PROMECAM
StatusSegunda mano
Information last updated21/01/2019 15:08:58
