Hydraulics cutting cutting shears ferry cbe 3106

Geographic location
Spain / Griñón (Madrid)
View phone
ClassificationIronworkers

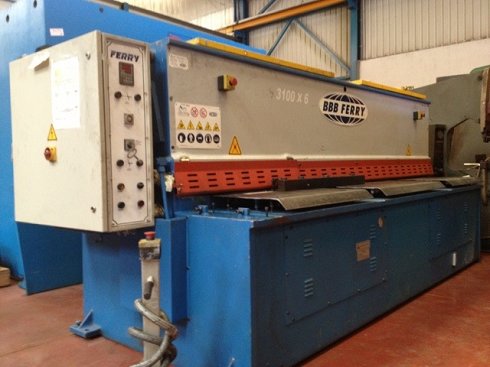

NameHydraulics cutting cutting shears Ferry CBE 3106
Customer reference1415
Incorrect year
DetailsHydraulics cutting cutting shears Ferry CBE 3106 of 3.100x6mm with tope posicionador electronic. Characteristic technical: Length of cutting: 3.100mm maximum Thickness of cutting (ironinging): 6mm maximum Thickness of cutting (inox): 3mm Length of the tope: 1.000mm Angle of cutting: 1,2º Number of cuttings: 18 Number of cuttings special speed: 22 Power of engine: 11cv Weight: 5.5t Configuration of the machine:
  • Console of escuadrar milimetrada with tope abatible and two consoles milimetradas additional
  • Regulation of separation of blades of 1 to 6 mm to avoid cuttings imerfectos or rebaba in the finishings.
  • Table of balls
  • Line of cut lit
  • Contador of pieces
  • Length of cutting regulable
norms ce Details of manufacture: CONTROL CN FOR THE TOPE The machine incorporates a control ELGO model P-9521 that allows preseleccionar the measure of cut wished and of automatic form position it. Also it includes the possibility to effect a number of cuttings to a measure and of automatic form change to another. (See details in brochure or instructions). REGULATION OF BLADES To attain a cut without rebabas is necessary to adjust the separation of upper and inferior blade. This achieves moving a crowbar situated in the side of the machine on a toothed segment that by means of a small twist referenciado by a cover with the measures, allows to adjust the separation to tenor of the thickness and resistance of the material. PISADORES Descend hidráulicamente what allows a tighten regulable according to the thickness and hardness of the sheet to cut. In the part that contacts with the material has of an arandela of teflon to avoid lines and marks in sheets pulidas. The recovery is also regulable. PLACE OF WORK In the left part where the angle of cut is more enclosed comes mounted the console of escuadrar.  For the ones of greater width the machine has of two supplementary consoles situated in the centre and right extreme of the machine that bear all the sheet. To facilitate his slide incorporates in all the length of the machine a table of balls. ELECTRICAL INSTALLATION And NORMS OF SECURITY The electrical picture this mounted with elements of market of the best quality, with the ideal components to incorporate the rule of compound hygiene by lateral grilles, photoelectric cells, unemployments of emergency and other elements demanded. When effecting the cut by means of pulsación to pedal and for treating of a pneumatics support (but fast that the hydraulics) these bars escamotean under the ramp of slide and allow a perfect evacuation. The device rearms automatically except suppressesion by part of the operator when cutting thicknesses that require us this help.
StatusSegunda mano
Information last updated21/01/2019 15:08:58
