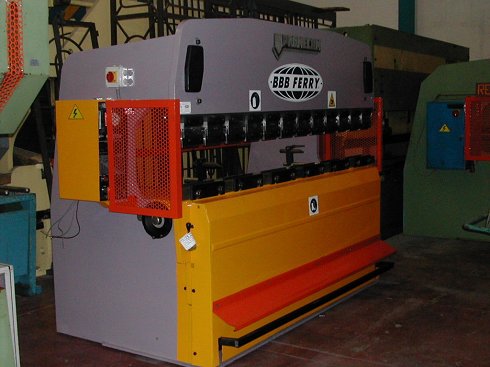

Plegadora hydraulics mebusa ph-4020 of 2.000x40t

Geographic location
Spain / Griñón (Madrid)
View phone
ClassificationCNC press brakes
NamePlegadora Hydraulics Mebusa PH-4020 of 2.000x40t
Customer reference1377
Incorrect year
DetailsPlegadora Hydraulics Mebusa PH-4020 of 2.000x40t
Characteristic technical
Forces of foldedPower of engine Length maxima of   folded Neck of swan Cursa Distance between   totals Velociadd Of   aproximacion Speed of work Speed of shrinking Length Width Height Weigh

40 tms.

5,5 cv.

2.085 mm.

200 mm.

100 mm.

1.690 mm.

45 mm/seg.

17 mm/seg.

80 mm/seg.

2.050 mm.

1.135 mm.

1.965 mm.

3 tms

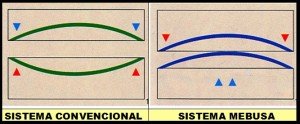

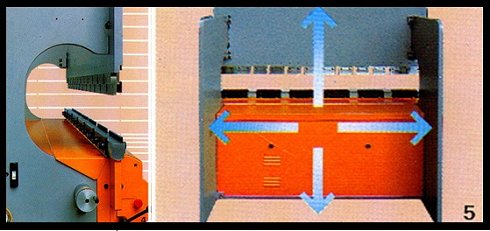

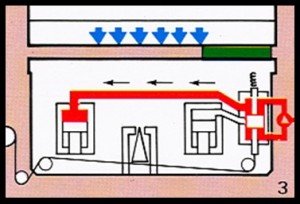

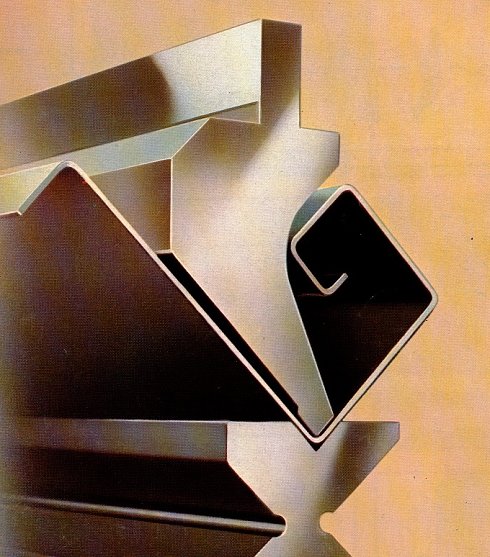

Details of the system of folded Promecam: SYSTEM OF FOLDED MEBUSA-PROMECAM is the result of more than 50 years of experience in the manufacture of machines of folded of precision.  It allows to obtain perfect finishings thanks to his only system of push central. The conventional system of folded presents big angular difference head office whereas the system MEBUSA minimises the deformations of the boards by means of a distribution of the efforts and a partial compensation with angular difference reduced. System of folded antiflexión Mebusa-Promecam PARALLELISM guaranteeed by means of integral systems of balanced hydraulics: Structural design of the machine with big length in passing between totals and wide neck of swan takes advantage of the maximum useful space to allow folded of big depth and/or development. GUIDED OF PRECISION in longitudinal and transversal sense ensures a perfect alignment. Universal tooling PROMECAM
StatusSegunda mano
Information last updated21/01/2019 15:08:58
