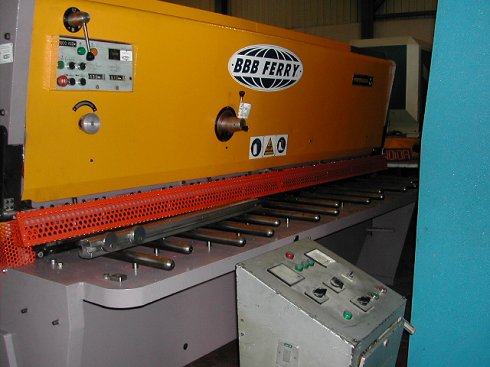

Hydraulics cutting cutting shears mebusa 3000x10/15mm tuned like new.

Geographic location
Spain / Griñón (Madrid)
View phone
ClassificationIronworkers
NameHydraulics cutting cutting shears Mebusa 3000x10/15mm tuned like new.
Customer reference1057
Incorrect year

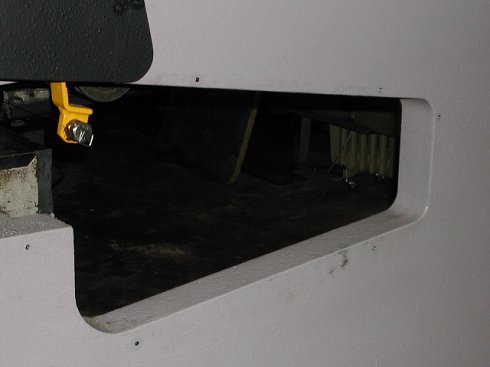

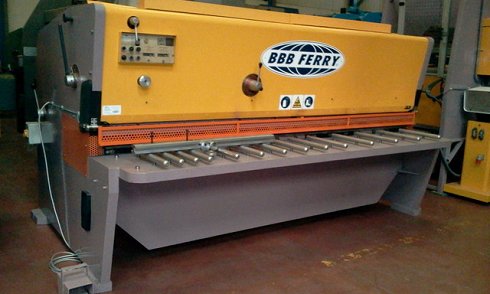

DetailsHydraulics cutting cutting shears Mebusa BRG 3000x10/15mm tuned like new. The hydraulics cutting cutting shears Mebusa with system of cutting BRG is the best machine that to manufactured for the uninterruptible cut of ironinging. His rigidity and sobredimensionada manufacture, allows to increase the capacity of the thickness of cut until 50% diminishing the long of sheet to cut. For example, the model Mebusa BRG 3000x10/15mm, has capacity of useful cutting to 3.100mm of 10mm, however can increase to 15mm the thickness if we bend the upper blade and reduce the length of cut to 1.500mm. Other important points of this big machine and that differentiate it of the rest, is his system of topes double, that allow to realizar cuttings of until 1.000mm without that the material coilsione with them. His big neck of swan of 500mm, allows to do cuttings in sheets of greater length that his freamers, operation that has to realizar with great caution and by qualified personnel as it requires to move the lateral protections of the machine. Example of reconstruction of cutting cutting shears Mebusa Characteristic technical:
  • Length of cutting: 3.100mm
  • maximum Thickness of cutting: 10/15
  • supplementary Capacity of cutting: 15x1.200mm
  • Cadence of cuttings/min.: 28/61
  • Variation angle of cutting: 0.25º - 1.5º
  • Number of pisadores: 16
  • Depth of cutting: 1.000mm
  • Neck of swan: 500mm
  • Length: 3.550mm
  • Width: 2.180mm
  • Height: 1.900mm
  • approximate Weight: 9.460kgs.

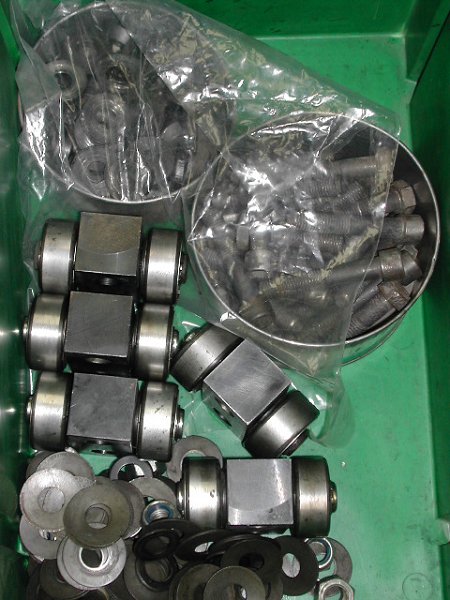

Details of manufacture: Rigidity: Frame mecano-soldier, of steel of high quality indeformable. The inferior board supports on the totals by skate that they form DOUBLE-ENTITLE, avoiding so it work any welding. This principle applies also to the upper board and to the frontal plate doing that the efforts are very delivered and deleting any risk of deformation  of the frame. Guided without wear neither manutencion: Threads of rollers widely dimensionados ensure the guided of the mobile board (carry-blade) on all his length, and absorb the reactions of the cut. They do not exist sliding pieces or of friction. Blades: upper and inferior Blade of 4 cuttings with fast regulation and independent of the angle of cutting. They allow to obtain clean cuttings and escuadrados any one that was the thickness (0.5-20mm) and the quality of the material. The inclination of the mobile board allows the withdrawal of the just upper blade after the line of cutting. Square of controls:
  1. Command sensitivo, allows to regulate the descent, immobilisation or promotion of the mobile board.
  2. Preselector   Of cycle, allows the automatic cycle or hit to hit.
  3. Explains hits.
  4. Instantaneous control of regulation of the game between the blades.
  5. Instantaneous control of the angle of cutting.
  6. Regulation of the course and cadence of cutting.
  7. Frontal control of regulation of the tope rear
  8. Control of elevation of the tope rear

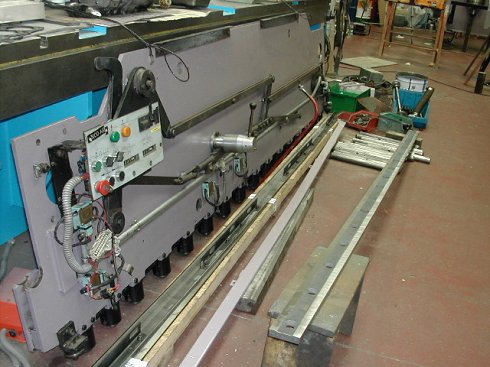

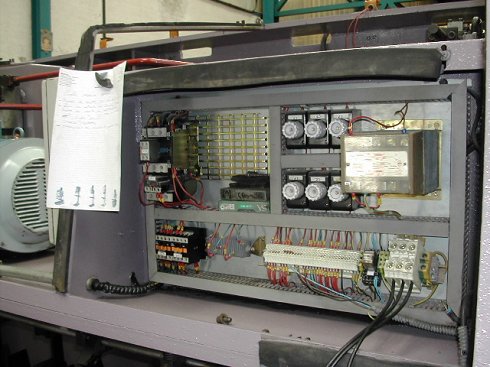

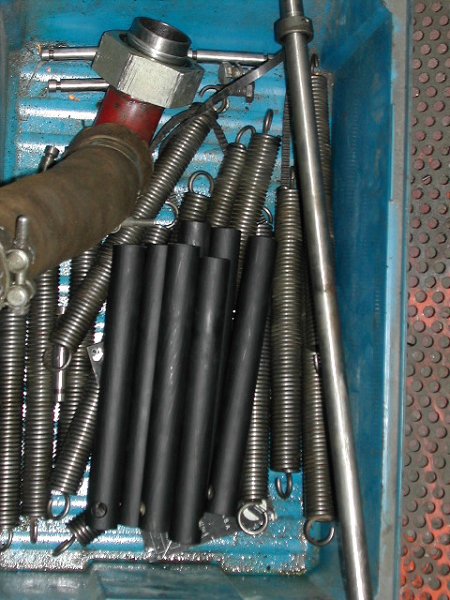

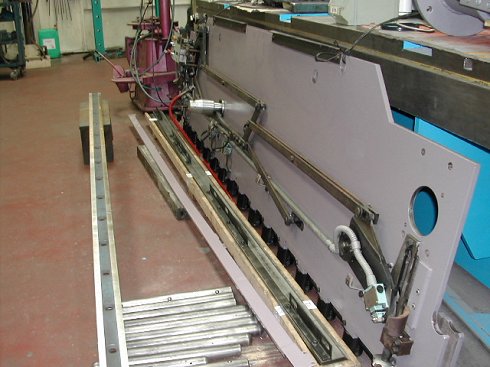

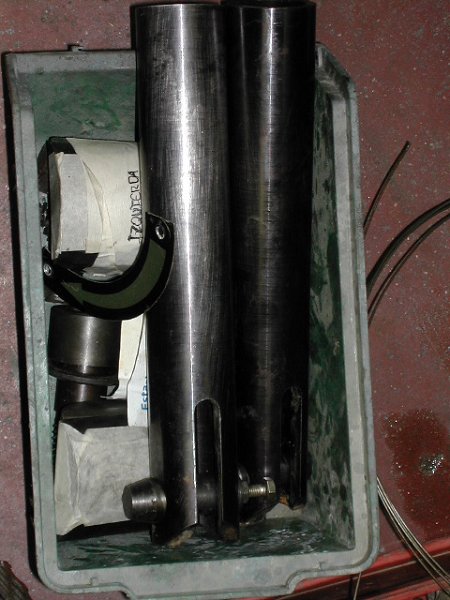

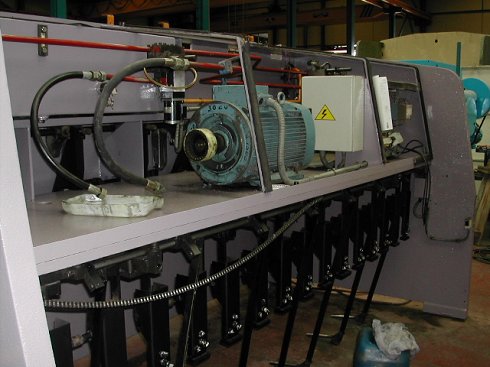

Pisadores hydraulics independent: Widely dimensionados allow a tighten forceful avoiding any risk of slide of the sheet. The pressesure is automatic in function of the effort of the cizallado. Thanks to his automatic aperture in function of the angle of cut deletes the possibility to enter a thick sheet for an angle of feeble cutting. Table of work: Situated under the line of cut allows the maintenance of the sheets of comfortable form. They are instrumented of bars in steel cromado hard with a disposal that protects the blades preventing the introduction of useful between the blades. Details of the tuned of hydraulics cutting cutting shears Mebusa BRG 3100x10/15mm:          Download technical index card
StatusSegunda mano
Information last updated21/01/2019 15:08:58
