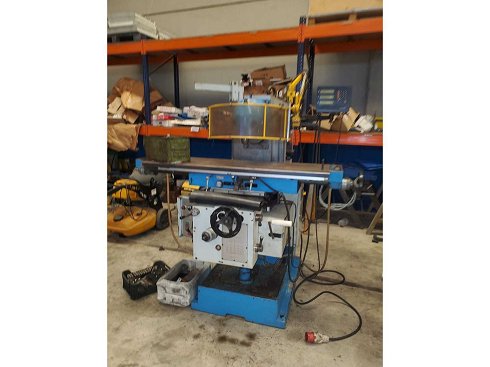

Manual mill with Heidenhain DRO Table size: 1450 × 320 mm T-slots: 5 × 16 H-7 Distance between T-slots: 62 mm Table swivel: ±45° Longitudinal travel: 1130 mm Cross travel: 300 mm Vertical travel: 500 mm Distance spindle center to table: 500 mm Spindle taper: ISO-40 / ISO-50 Number of spindle speeds: 12 Spindle speed range: 35–1500 rpm Distance spindle axis to ram: 135 mm Universal head taper: ISO-50 Universal head speeds: 38–1440 rpm Manual ram travel: 650 mm Number of feeds: 12 Longitudinal and cross feed range: 10–510 mm/min Vertical feed range: 4–200 mm/min Rapid longitudinal/cross feed: 2500 mm/min Rapid vertical feed: 1000 mm/min Main motor power: 5.5 kW Feed motor power: 1.5 kW Coolant pump motor power: 0.09 kW Net weight: 2450 kg Gross shipping weight: 2650 kg Packing dimensions: 1820 × 1750 × 2100 mm
