| Classification | Plunge electrical discharge machining |
|---|---|
| Name | Máquina ECM (tratamiento electroquímico de metales) |
| Customer reference | 47897 |
| Brand | PEM |
| Model | 800 |
| Incorrect year | |

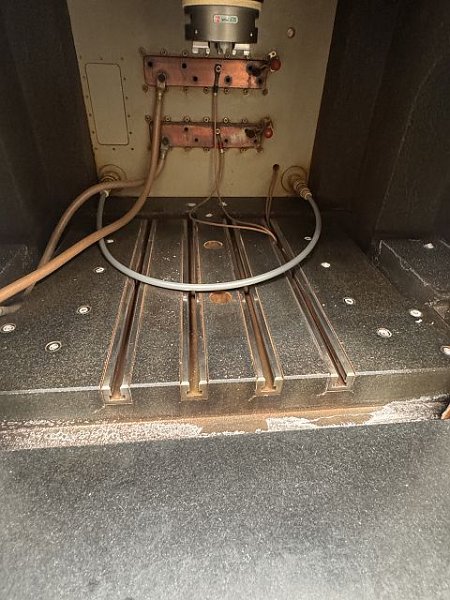

| Details | CONTROLS Control CNC ESPECIFICACIONES TÉCNICAS current generation (max): 3600 A Table-size : 660 mm Table-size : 540 mm Working head: electr.clamping surf.: 375 mm .. x: 545 mm DIMENSIONES / PESO espacio requerido -izquierdo/derecha-: 2200 mm espacio requerido -delante/atrás-: 2560 mm Altura total: 2870 mm The precision electrochemical metal machining (PECM) process is the further development of electrochemical countersinking. High-precision tools can also be machined from super alloys (Inconel, Hastelloy, etc.) and PM steels without process-related tool wear. Natural granite machine frame Working area 800 mm x 640 mm (W x D) Machine table 660 mm x 540 mm (W x D) Maintenance-free precision work axis with direct drive Fixture attachment via 6 T-slot rails (M10) in the machine table Real-time system for process control and short-circuit detection Standard PC keyboard, mouse and touchscreen Water-cooled, modular generator up to 3,600 A Automatic electrolyte preparation system - PEM Mechanik - PEM Control - PEM Power - PEM Aqua |
| Status | Segunda mano |
| Information last updated | 28/04/2026 21:00:03 |
