| Classification | Plunge electrical discharge machining |
|---|---|
| Name | Máquina de Electroerosión |
| Customer reference | 46903 |
| Brand | AGIE |

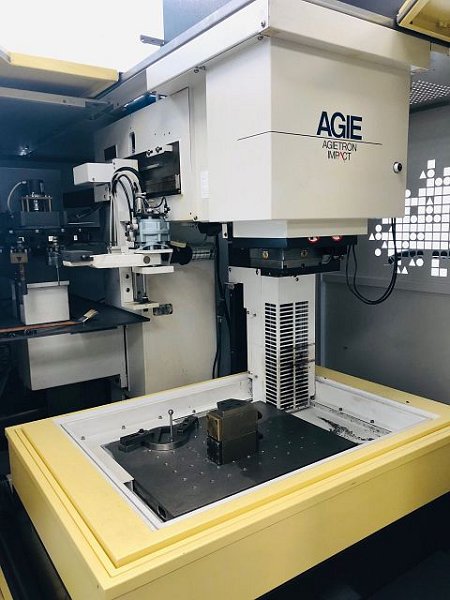

| Model | AGIETRON IMPACT 2 |
| Incorrect year | |

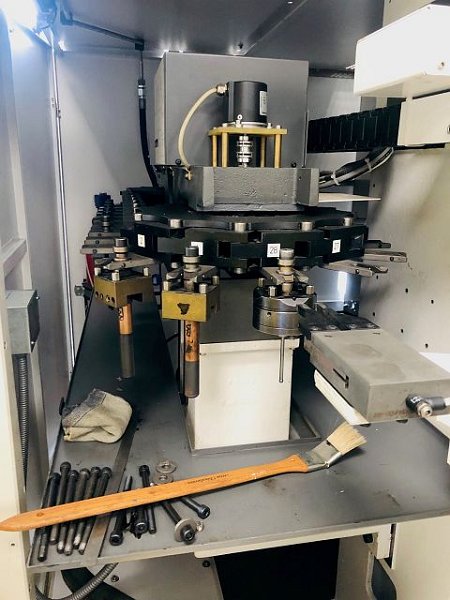

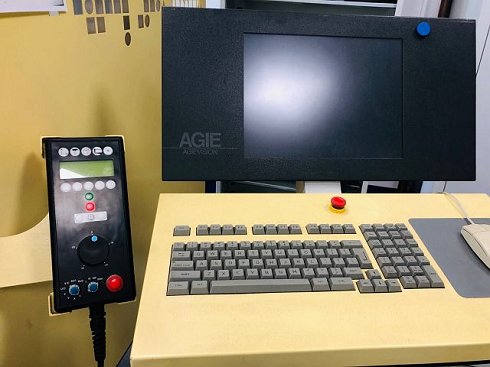

| Details | CONTROLS Control CNC ESPECIFICACIONES TÉCNICAS Case size: 860 mm .. x: 620 mm Adjustment of x-axis: 350 mm Adjustment of y-axis: 250 mm Erosion stroke: 350 mm Max. dist. table-electr.clamp.surf.: 520 mm DATOS DE CONEXIÓN ELÉCTRICOS Potencia de conexión: 8.3 kVA Tensión de conexión: 400 V Frecuencia de la red: 50 Hz DIMENSIONES / PESO espacio requerido -izquierdo/derecha-: 2700 mm espacio requerido -delante/atrás-: 1900 mm Altura total: 2600 mm Peso total aprox.: 3000 kg Description - Work container can be lowered - C axis for rotation, indexing and erosion - AGIEVISION control incl. TECTRON, AGIESETUP 2D - USER SEQUENCE, SPACETRACK, AGIEPATH with GEOEDITOR - Electrode changer 28 times - Incl. EROWA pneumatic chuck |
| Status | Segunda mano |
| Information last updated | 20/04/2026 21:00:03 |
