Correanayak vh-plus 3000 n-mg - m-20050211 [en reconstrucción]

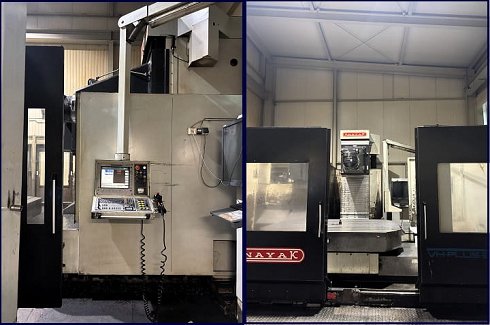

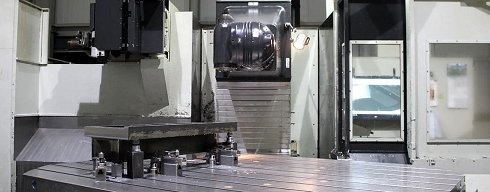

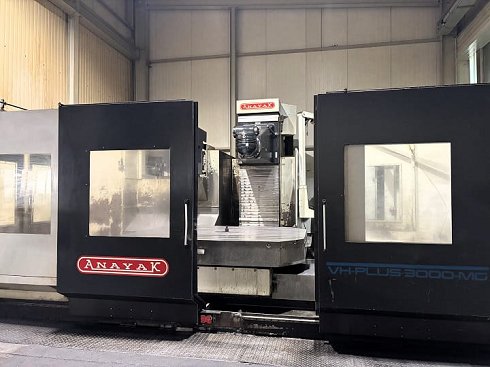

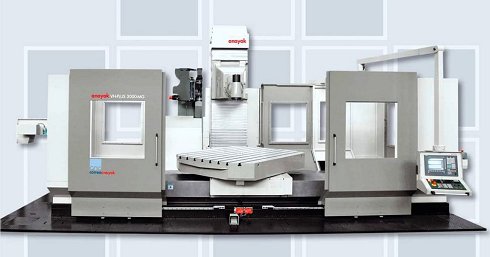

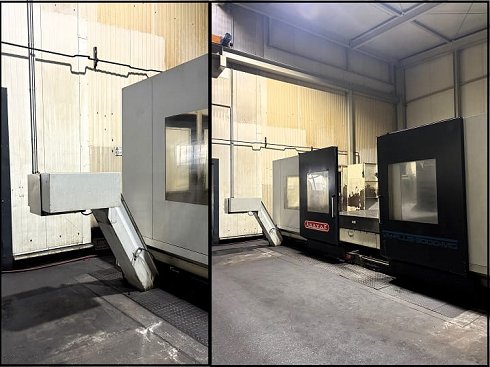

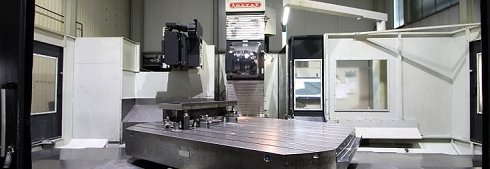

Correanayak VH-PLUS 3000 N-MG

Geographic location
España / Burgos (Burgos)
ClassificationBed-type milling machine
NameCORREANAYAK VH-PLUS 3000 N-MG - M-20050211 [En reconstrucción]
Customer referencecorreanayak-vh-plus-3000-n-mg---m-20050211
BrandCorreanayak
ModelVH-PLUS 3000 N-MG
Incorrect year2005
Details
Reconstruida
2026
Control numérico
TNC-i530
Dimensiones
  • Dimensiones mesa: 2.500 x 2.000 mm
  • Construcción de la mesa: Giratoria continua con bloqueo directo
  • Número ranuras T: 9
  • Dimensiones ranuras T: 22 mm
Recorridos
  • Recorrido longitudinal X: 3.000 mm
  • Recorrido vertical Y: 1.500 mm
  • Recorrido transversal Z: 1.300 mm
  • Capacidad vertical (VC): -5 / 1.295 mm
Cabezal
  • Automático indexado Ortogonal 90º– Cuerpos B & C (1º)
  • Amarre herramienta: Hidráulico
  • Cono: ISO 50 (DIN 69871) / Tirante: DIN 69872
  • Gama de velocidades: 20 - 5.000 r.p.m
  • Potencia mandrino: 30 kW
Avances
  • Avances rápidos (X,Y,Z): 20.000 mm/min
Pesos
  • Peso máximo sobre mesa: 13.000 kg
  • Peso aproximado de máquina: 39.000 kg
  • Dimensiones aproximadas máquina: 7.980 x 8.000 x 3.750 mm
Accesorios
  • Carenado: Periférico sin techo

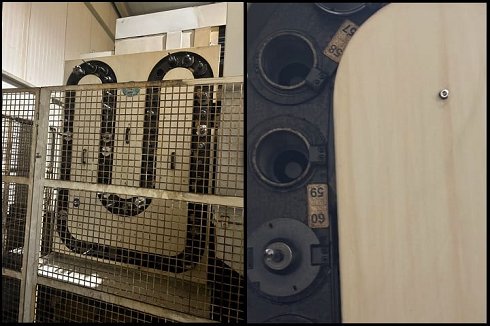

  • Cambiador automático de herramientas: ATC-60
  • Evacuador de virutas: 1 longitudinal trasero
  • Volante electrónico: HR-410
  • Taladrina: Externa e interna alta presión a través del mandrino
  • Filtro taladrina: Banda de papel
Condiciones de venta
  • Garantía: Repuestos mecánicos 6 meses
  • Precio y condiciones de venta: Consultar
Más información
Fresadora CORREANAYAK VH-PLUS 3000 N-MG– Retrofitting por CORREA Service
StatusSegunda mano
