MAEGERLE MGC-L 560

Geographic location
Países Bajos / Babberich
View phone
ClassificationMiscellaneous grinding machines
NameProfile grinder MAEGERLE - MGC-L 560
Customer referenceProfile grinder MAEGERLE - MGC-L 560 Surface, Profile grinding machine 5600 mm
BrandMAEGERLE
ModelMGC-L 560
Incorrect year2008
Details

CNC gear rack grinding machine

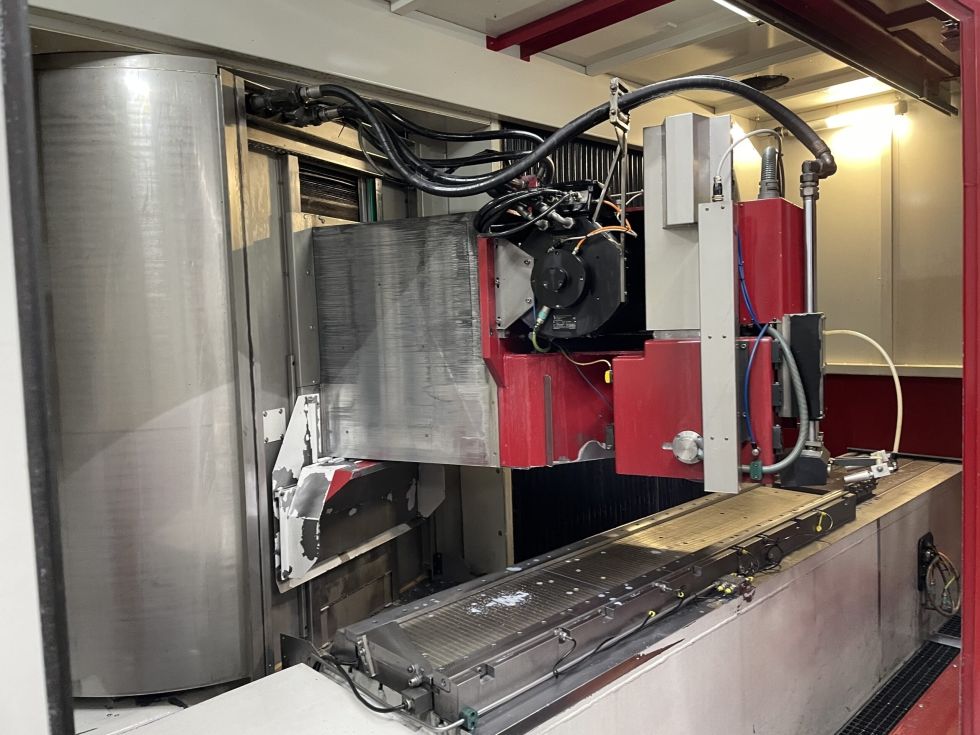

Automatic grinding head
B-Axis Grinding head ca 20 gr swivel
ARO - KKS coolant tank 8000 L ( size 4400 x 1900 x 2200)
Pendel opperation ( double table)
Dresser automatic
Table dresser

X - Travel:              5500mm
Y - Travel:              650mm
Z - Travel:              750mm
Table Length:            5500mm
Table Width:             750mm
Feed rate X-Axis:        20000mm/min.
Feed rate Z-Axis:        20000mm/min.
Grinding stone dimensions:600 x 300mm
Power:                   115kW
Speeds:                  8000Rpm
Cooling system:          Yes
Feed rate Y-Axis:        20000mm/min.
Length:                  10700mm
Width:                   4700mm
Height:                  3800mm
Weight:                  42000kg

StatusSegunda mano
Information last updated08/01/2026 7:32:50
