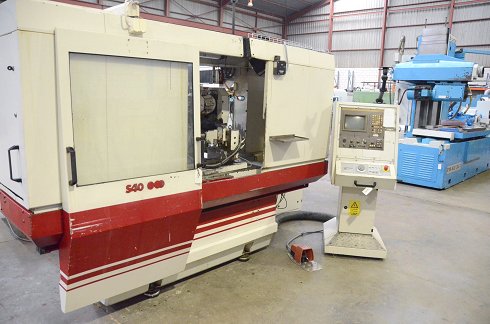

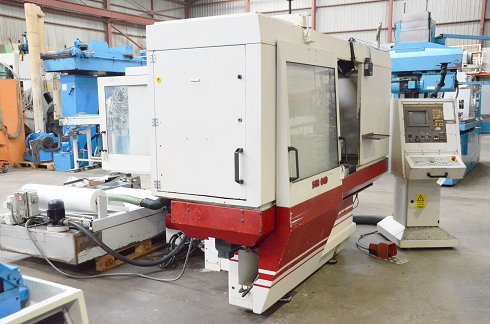

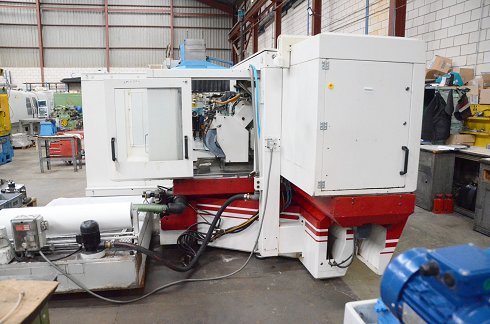

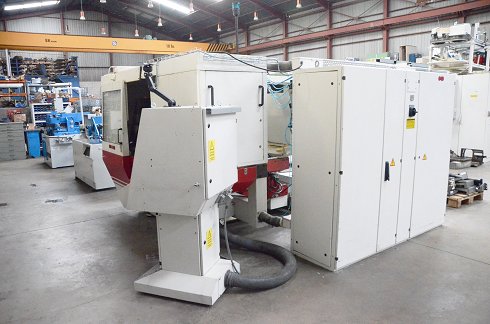

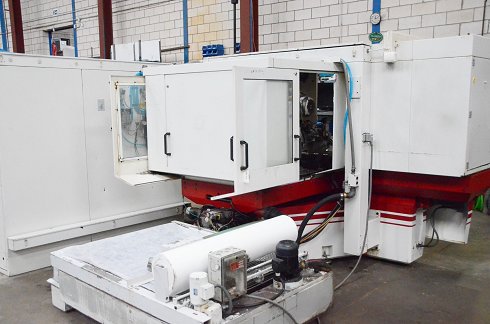

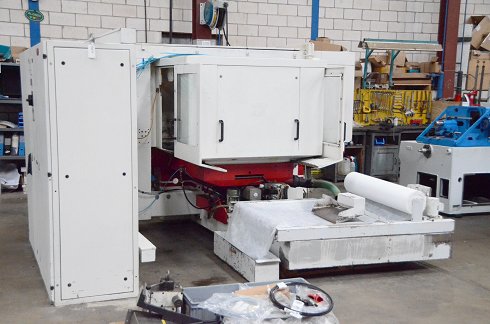

Rectificadora cilíndrica (exteriores e interiores) studer s40-4 #4629
STUDER S40-4
Geographic location
España / Badajoz, Spain
| Classification | Universal and exterior grinding machines |
|---|---|
| Name | Rectificadora Cilíndrica (exteriores e interiores) STUDER S40-4 #4629 |
| Customer reference | 8170273 |
| Brand | STUDER |
| Model | S40-4 |
| Incorrect year | |
| Details | Distancia entre puntos: 650 mm
Ø exterior max a rectificar: 320 mm

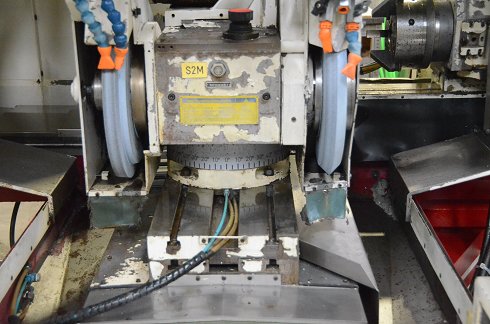

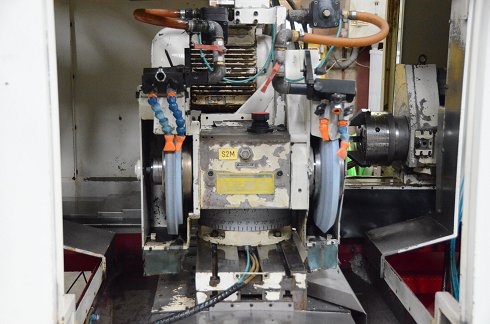

Dimensiones de la muela de trabajo (od x id x ancho): Ø400 x Ø127 x 80 mm
Ø interior max a rectificar: 140 mm
Altura de puntos: 175 mm
Tipo de control (cnc/manual): CNC
Marca cnc: SIEMENS
Modelo cnc: SINUMERIC 3G7
Longitud maxima a rectificar: 650 mm
Peso Máx. de la pieza: 130 Kg
Potencia motor principal: 5.5 Kw
Potencia total: 22 KVA
Revoluciones max. cabezal portapiezas: 30 - 750 rpm
Tensión: 380 V / 50 Hz
Avance eje X: 0,01 – 5.000 mm/min
Avance eje Z: 0,06 – 10.000 mm/min
Presión de aire: 5 bar
Curso máx.eje X: 275 mm
Curso máx.eje Z: 700
Giro máx.mesa portapiezas: 8.5º
Cono interior cabezal portapiezas: M 5
Cono contrapunto: M 3
Recorrido caña contrapunto: 35 mm
Dimensiones (largo x ancho x alto): 2.815 mm x 1.875 mm x 2.090 mm
Peso: 3.600 Kg
Más información de la fuente |
| Status | Segunda mano |
| Information last updated | 27/02/2026 14:48:03 |
