3-axis cnc machine (vmc) doosan - mv 8035

Doosan MV 8035

Geographic location
Países Bajos / Babberich
View phone
ClassificationMiscellaneous milling machines
Name3-axis CNC machine (VMC) DOOSAN - MV 8035
Customer reference3-axis CNC machine (VMC) DOOSAN - MV 8035
BrandDoosan
ModelMV 8035
Incorrect year2010
Details

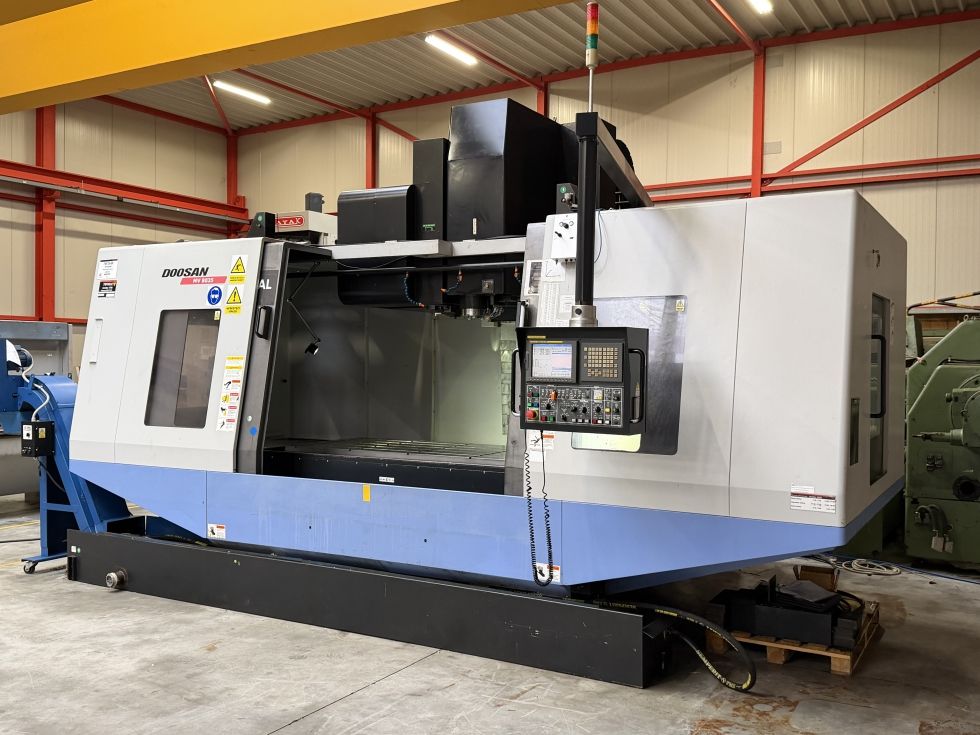

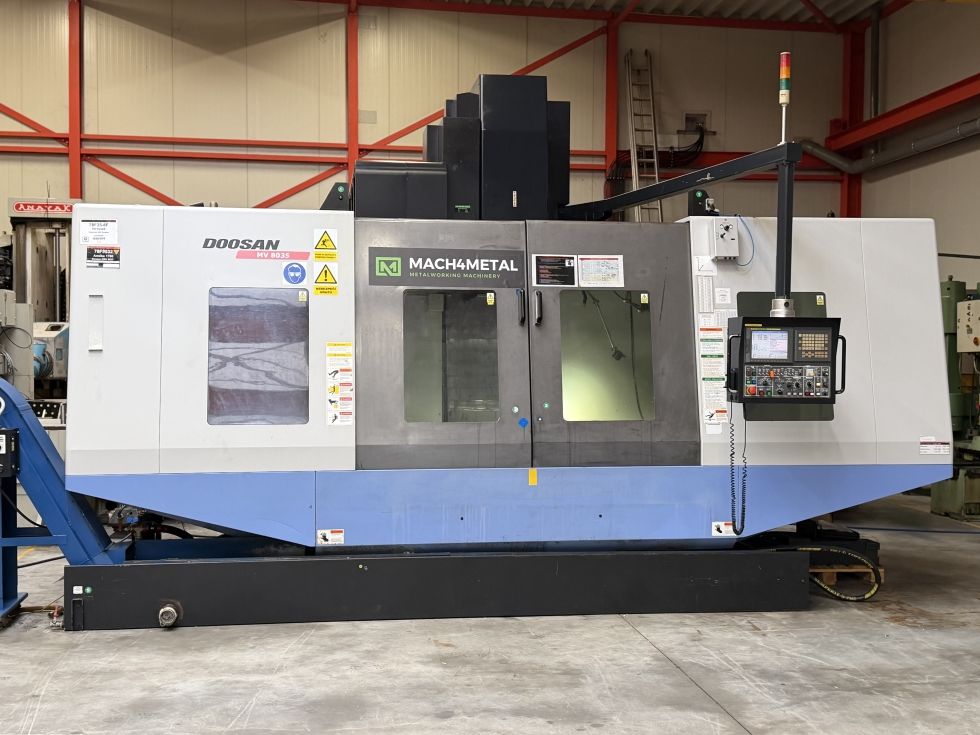

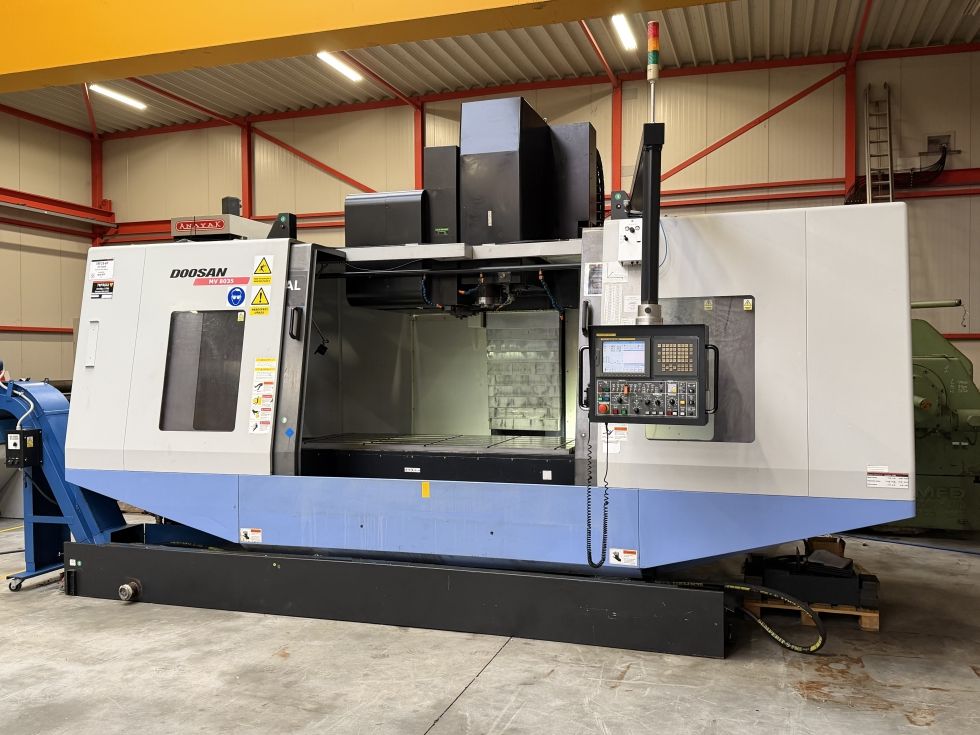

3-axis CNC machine (VMC)DOOSAN - MV 8035

Rigid construction for Heavy Duty jobs
Direct drive powerful processing in 2 stage gear drive

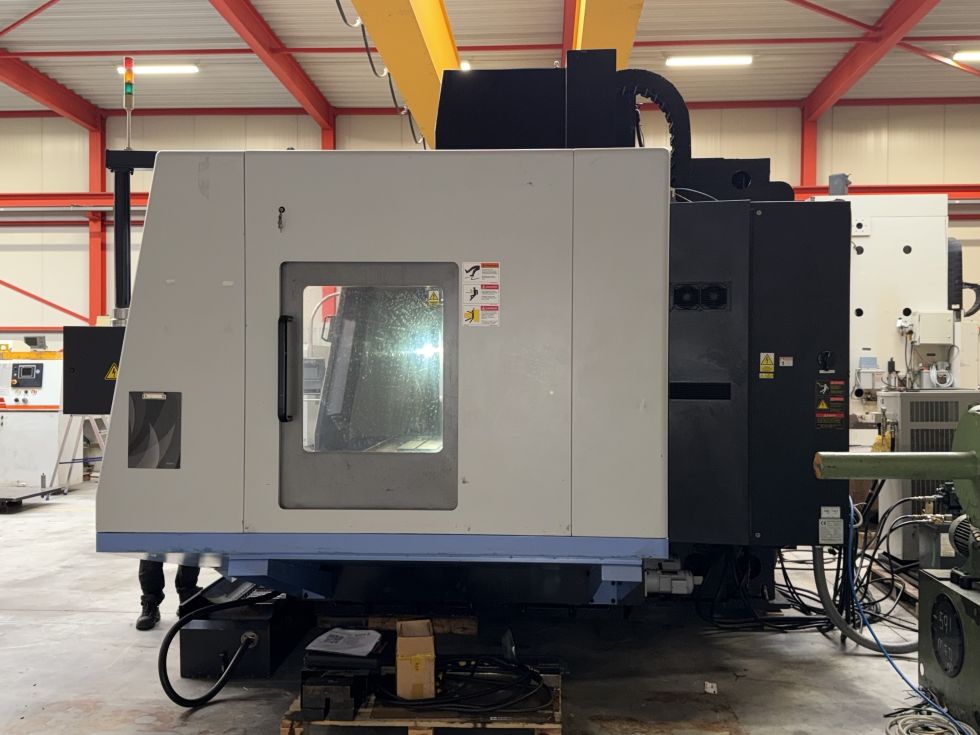

Fully covered machine
Distance spindle nose - table top 200 - 1000 mm
Distance spindle nose - to column 1005 mm
Ex. Honeywell Aerospace

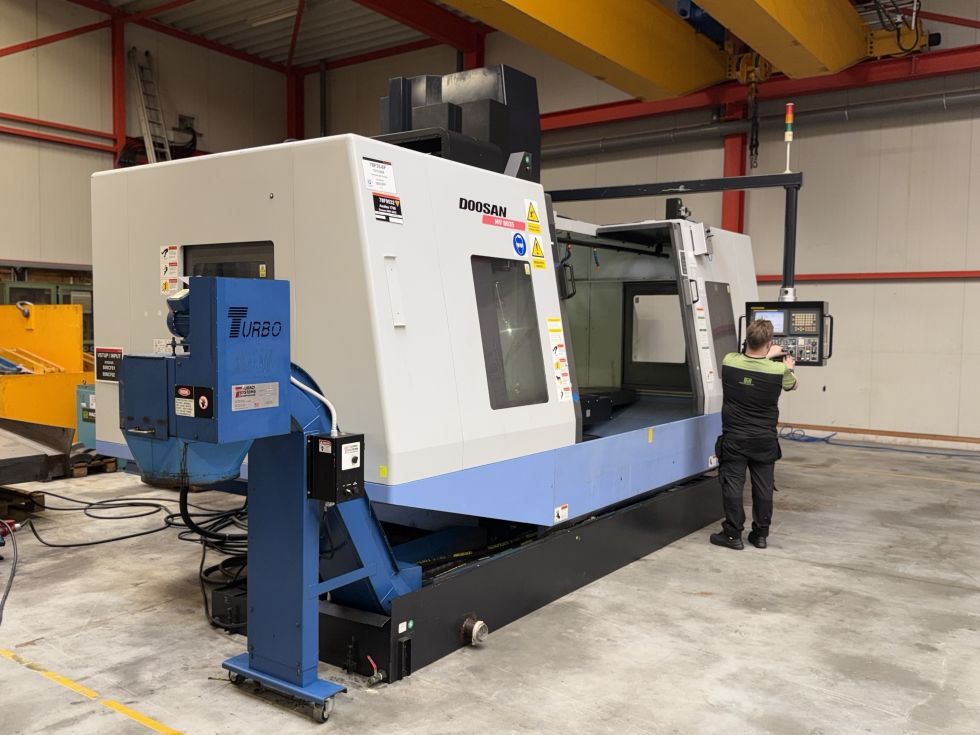

Oil skimmer and Chip conveyor included
YOP 2007 deliverd in 2008 and 2009

X - Travel:                  2000mm
Y - Travel:                  1000mm
Z - Travel:                  850mm

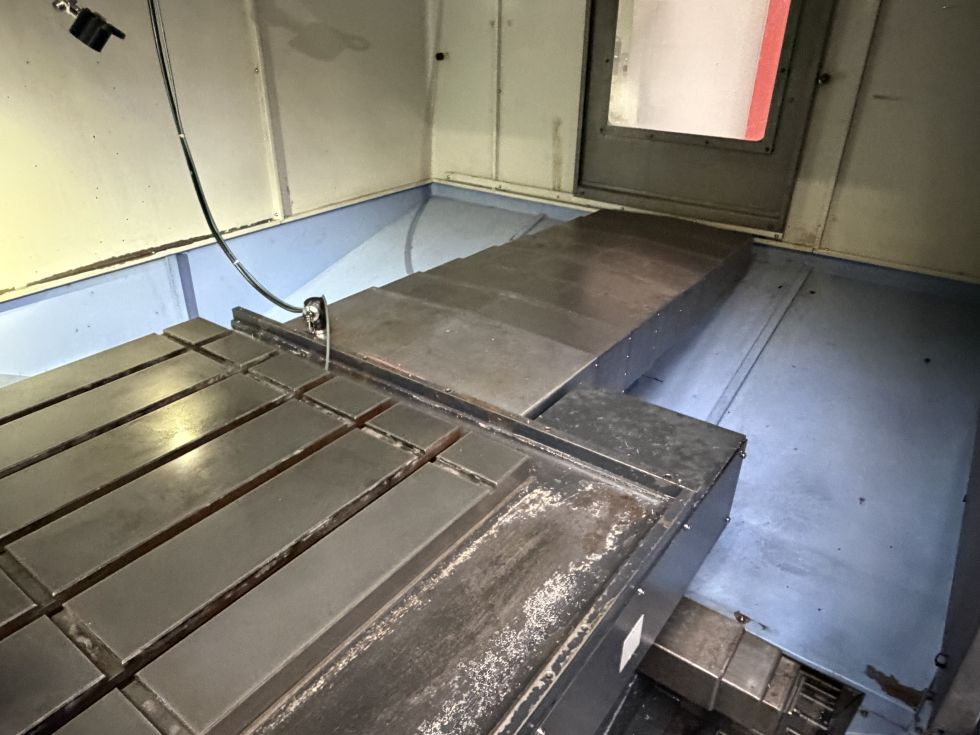

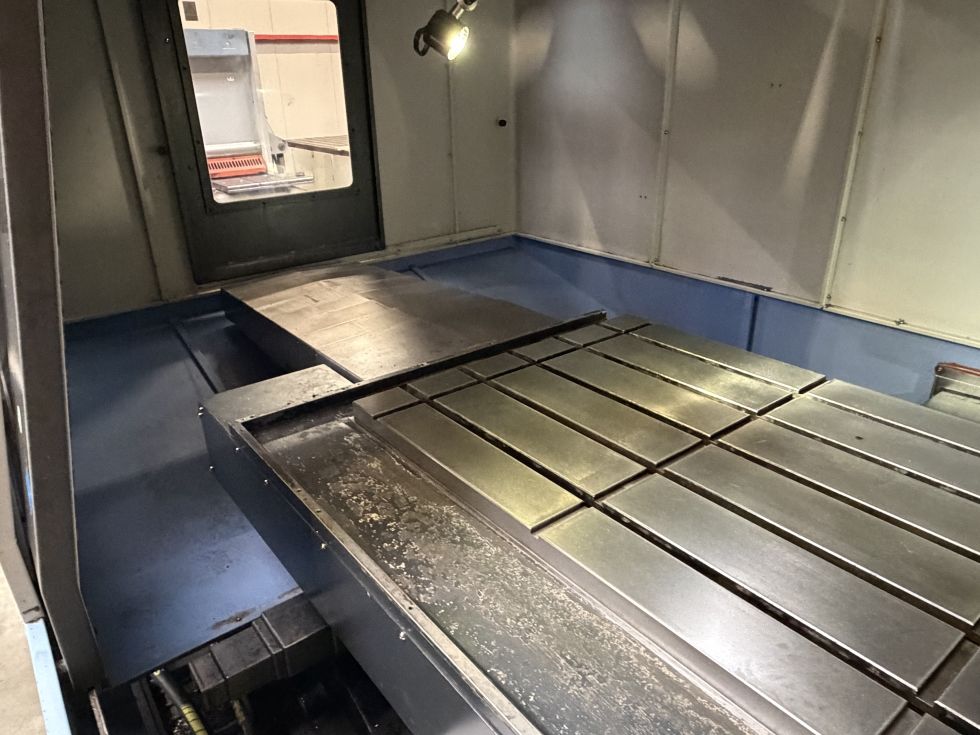

Table Length:                2400mm
Table Width:                 900mm
Table load:                  4000
Feed rate X-Axis:            16000mm/min.
Feed rate Y-Axis:            16000mm/min.
Feed rate Z-Axis:            16000mm/min.
Spindle Taper:               50ISO/Bt/Mk
Power on spindle:            30kW
Speeds / ranges:             6000Rpm
ATC / revolver:              30
Coolant through spindle / Bar:20
Number of controlled axis:   3
Chip conveyor:               Yes
Coolantsystem:               Yes
Length:                      5960mm
Width:                       4840mm
Height:                      3630mm
Weight:                      18000kg


StatusSegunda mano
Information last updated18/11/2025 7:52:25
