Correa axia 115 - 785083 [en reconstrucción]

Correa AXIA 115

Geographic location
España / Burgos (Burgos)
ClassificationMoving column milling machines / turret milling machines
NameCORREA AXIA 115 - 785083 [En reconstrucción]
Customer referencecorrea-axia-115---785083
BrandCorrea
ModelAXIA 115
Incorrect year2013
Details
Reconstruida
2026
Control numérico
HEIDENHAIN TNC-i530
Dimensiones
  • Dimensiones mesa: 12.500 x 2.250 mm
  • Número ranuras T: 9
  • Dimensiones ranuras T: 22 mm
Recorridos
  • Recorrido longitudinal X: 11.500 mm
  • Recorrido transversal Y: 1.500 mm
  • Recorrido vertical Z: 2.000 mm
  • Capacidad vertical (VC): 150 / 2.150 mm (ajustable)
Cabezal

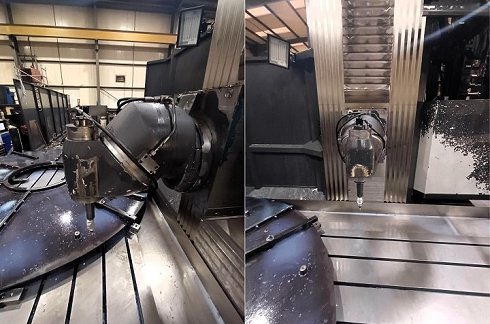

  • Modelo cabezal: Universal Automático UDG (2,5º)
  • Amarre herramienta: Hidráulico
  • Cono: ISO 50 (DIN 69871) / Tirante: DIN 69872
  • Gama de velocidades: 3.000 r.p.m
  • Potencia mandrino: 30 kW
Avances
  • Avances rápidos (X / Y,Z): 30.000 mm/min
Pesos
  • Peso máximo sobre mesa: 15 Tn/m2
  • Peso aproximado de máquina: 62.000 kg
  • Dimensiones aproximadas de máquina: 18.494 x 8.412 x 5.290 mm
Accesorios
  • Carenado: 2 puertas correderas y nuevo vallado perimetral de seguridad

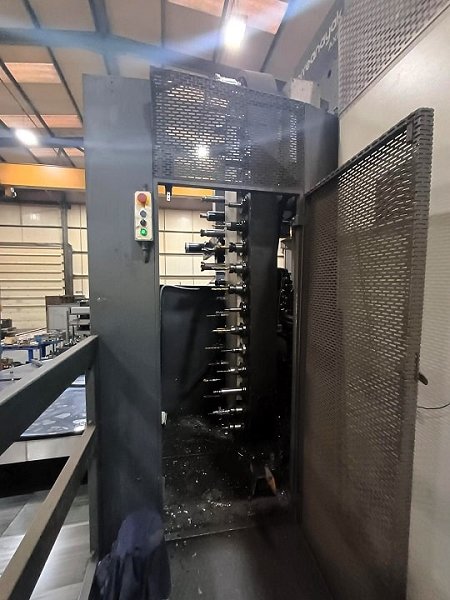

  • Cambiador automático de herramientas: ATC40
  • Evacuador de virutas: longitudinal trasero con salida elevada
  • Volante electrónico: HR-410
  • Taladrina exterior e interior alta presión a través del mandrino
Condiciones de venta
  • Garantía: Repuestos mecánicos 6 meses
  • Precio y condiciones de venta: Consultar
Más información

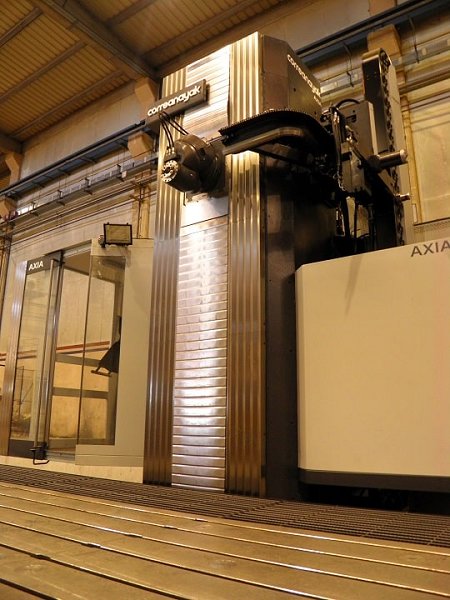

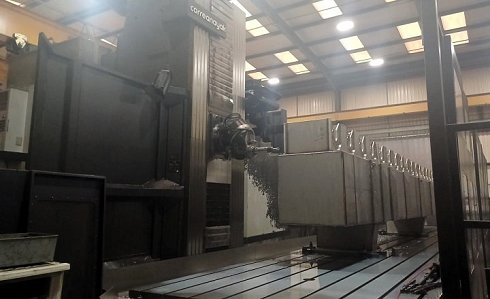

Fresadora CORREA AXIA 115 reconstruida por CORREA Service
StatusSegunda mano
Information last updated07/05/2026 15:19:56
