Portal milling machine kao ming - kmc 4000 sv-h

Kao Ming KMC 4000 SV-H

Geographic location
Países Bajos / Babberich
View phone
ClassificationBridge-type milling machines
NamePortal milling machine KAO MING - KMC 4000 SV-H
Customer referencePortal milling machine KAO MING - KMC 4000 SV-H
BrandKao Ming
ModelKMC 4000 SV-H
Incorrect year2008
Details

Double guideway two box way construction
Head changer for Multi-Face machining off larger compontents
ATC tool changer for Horizontal and vertical milling head swivabel

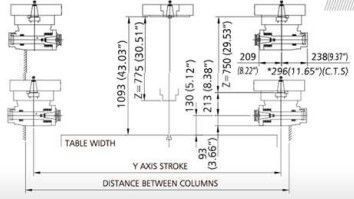

Distance table spindle nose    213 - 1093 mm
Distance table spindle center  130 -  ...mm

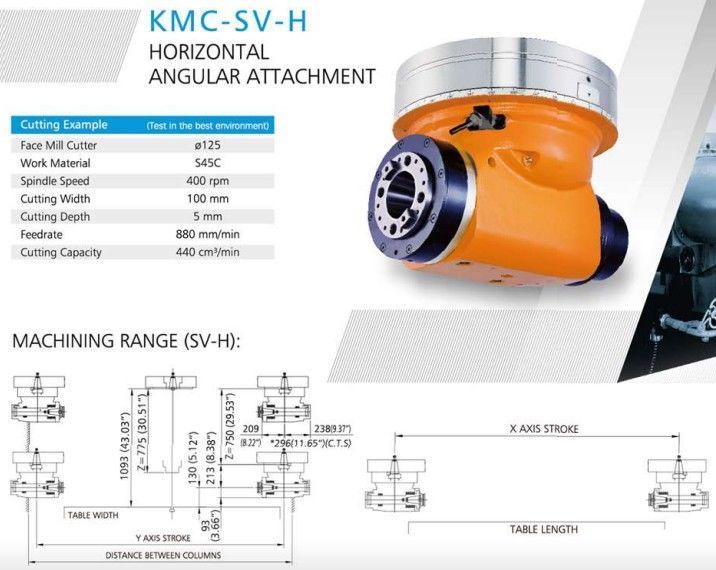

Indexing Horizontal head 5 Degrees x 72 positions

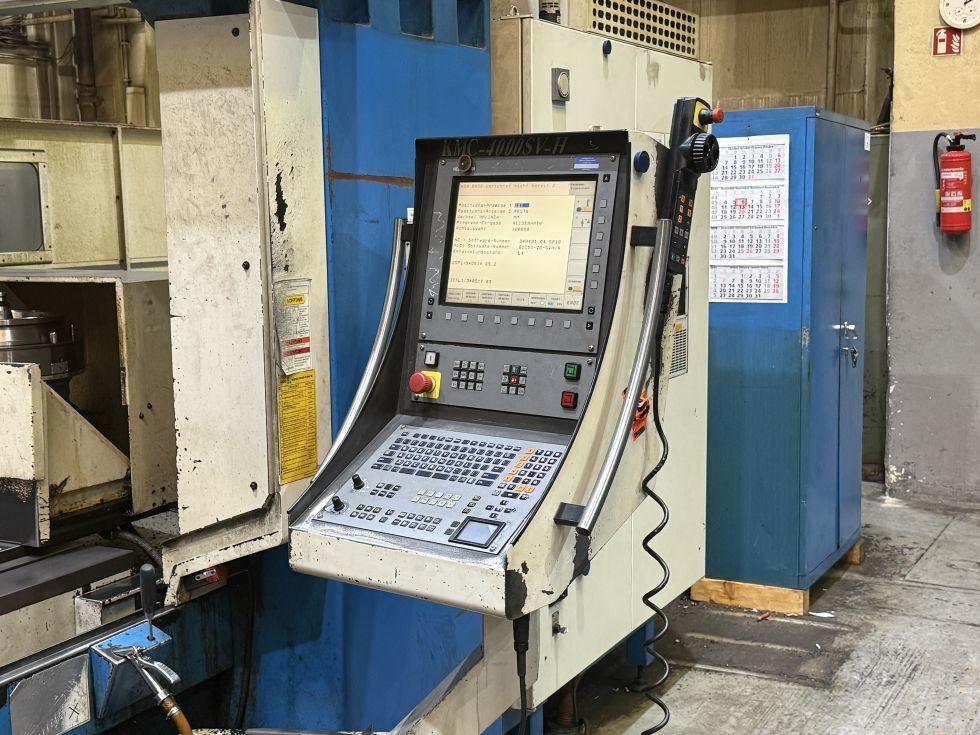

HeidenHain iTNC530 with HR410 handwheel
Spindle torq 1018 Nm ISO50
Universal Huron type milling head


X - Travel:            4230mm
Y - Travel:            1950mm
Z - Travel:            750mm
Distance between column:1500mm
Table Length:          4000mm
Table Width:           1250mm
Table load:            11000
Feed rate X-Axis:      12000mm/min.
Feed rate Y-Axis:      15000mm/min.
Feed rate Z-Axis:      12000mm/min.
Spindle Taper:         50ISO/Bt/Mk
Power on spindle:      26kW
Speeds / ranges:       4400Rpm
ATC / revolver:        30
Chip conveyor:         Yes
Coolantsystem:         Yes
Length:                10100mm
Width:                 4500mm
Height:                4250mm
Weight:                30000kg


StatusSegunda mano
Information last updated30/09/2025 9:52:41
