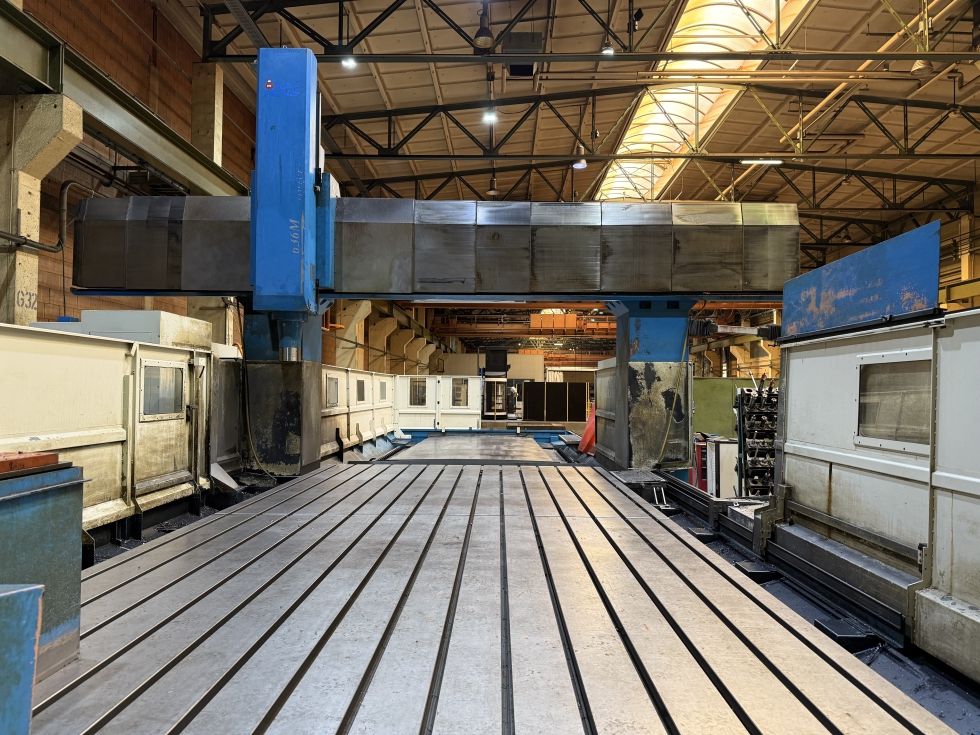

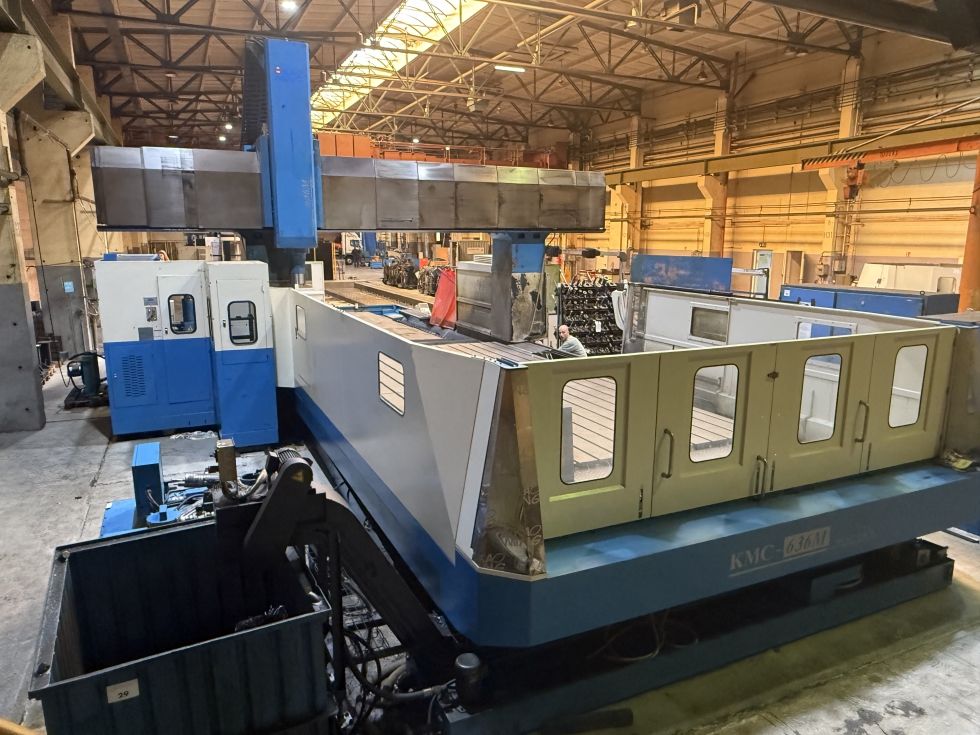

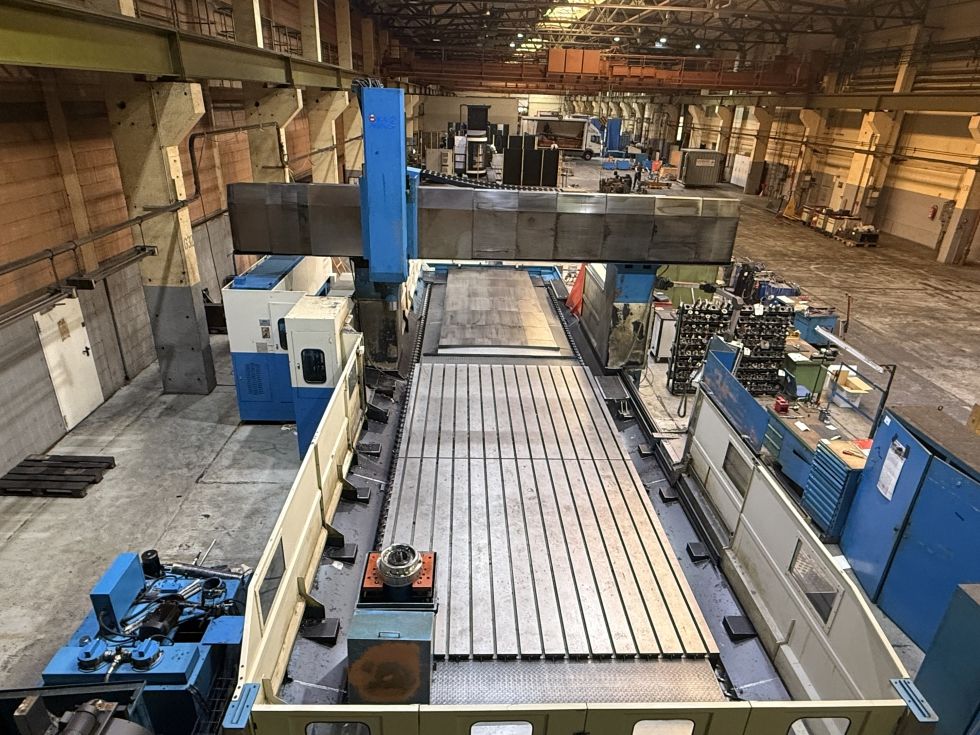

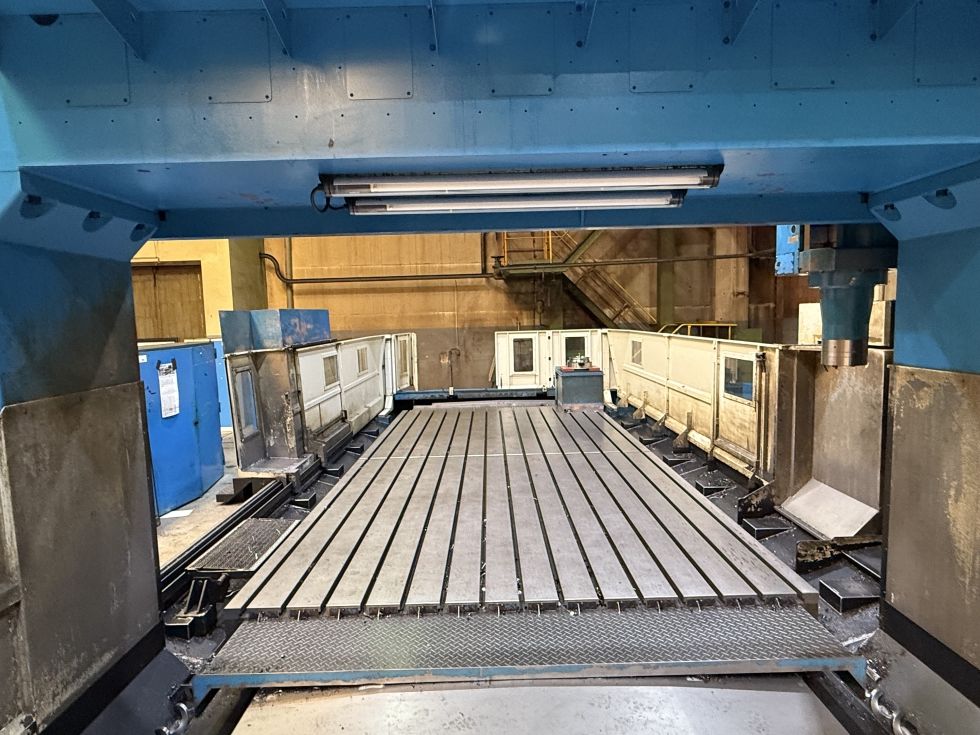

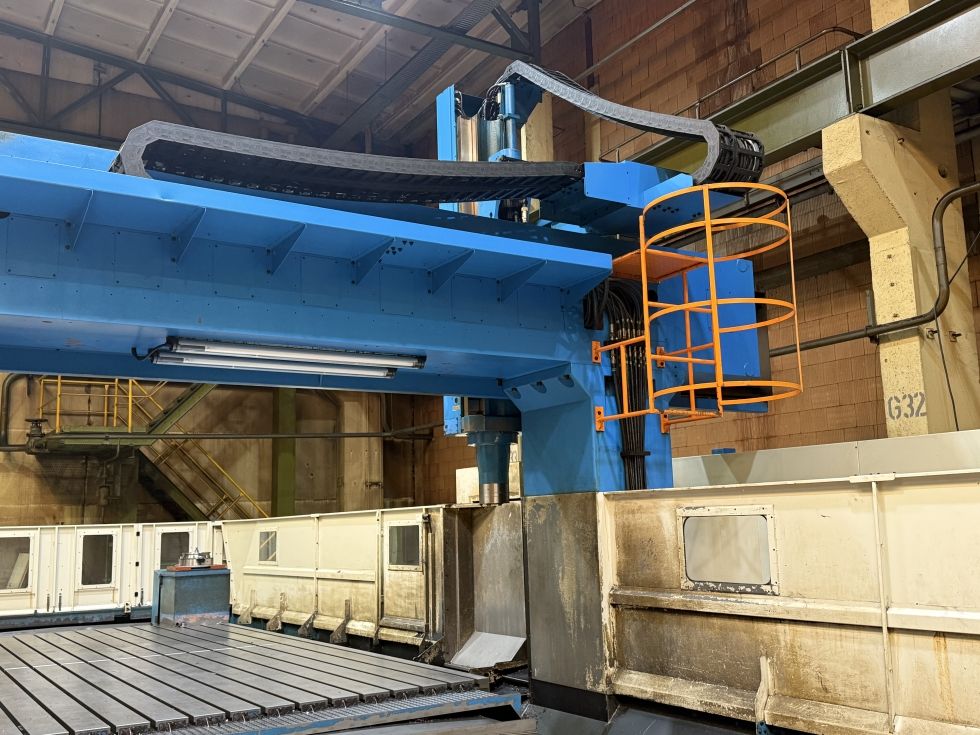

Portal milling machine kao ming - kmc 636 multiface

Kao Ming KMC 636 Multiface

Geographic location
Países Bajos / Babberich
View phone
ClassificationBridge-type milling machines
NamePortal milling machine KAO MING - KMC 636 Multiface
Customer referencehttps://mach4metal.com/en/milling-machines/portal/kao-ming-kmc-636-multiface#:~:text=Portal%20milling%20machine,KMC%20636%20Multiface
BrandKao Ming
ModelKMC 636 Multiface
Incorrect year2009
Details

Double guideway four box way construction
Head changer for Multi-Face machining off larger compontents
ATC tool changer for Horizontal and vertical milling head swivabel
Distance table spindle nose    345 - 1445 mm
Distance table spindle center 132 - 1232 mm

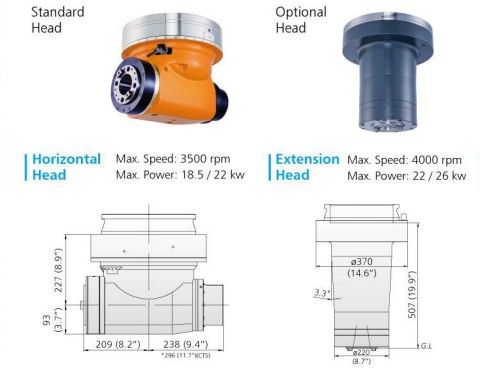

Indexing Horizontal head 5 Degrees x 72 positions
HeidenHain iTNC530 with HR410 handwheel
Spindle torq 1018 Nm ISO50

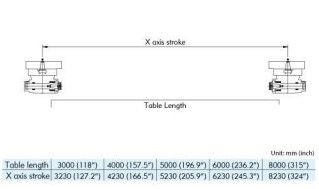

X - Travel:              6230mm
Y - Travel:              4250mm
Z - Travel:              1100mm
Distance between column: 3600mm
Table Length:            6000mm
Table Width:             3000mm
Table load:              15000
Feed rate X-Axis:        7000mm/min.
Feed rate Y-Axis:        8000mm/min.
Feed rate Z-Axis:        10000mm/min.
Spindle Taper:           50ISO/Bt/Mk
Power on spindle:        26kW
Speeds / ranges:         4000Rpm
ATC / revolver:          30
Number of controlled axis:3+2
Chip conveyor:           Yes
Coolantsystem:           Yes

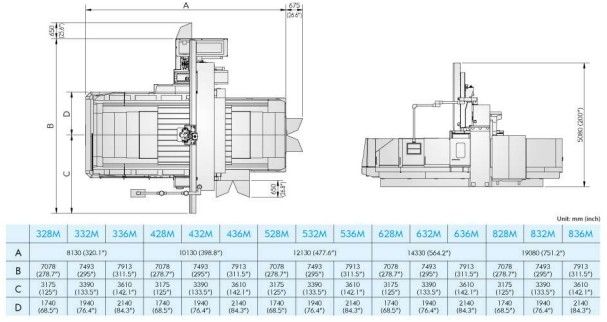

Length:                  14330mm
Width:                   7913mm
Height:                  5080mm
Weight:                  66000kg


StatusSegunda mano
Information last updated30/09/2025 9:54:07
