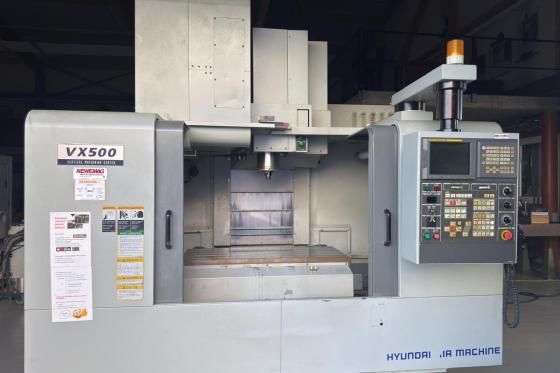

3-axis cnc machine (vmc) kia hyundai - vx 500

Hyundai VX 500

Geographic location
Países Bajos / Babberich
View phone
ClassificationMiscellaneous milling machines
Name3-axis CNC machine (VMC) KIA Hyundai - VX 500
Customer reference3-axis CNC machine (VMC) KIA Hyundai - VX 500
BrandHyundai
ModelVX 500
Incorrect year2007
Details

Spindle speed 10.000 Rpm
Coolant tank with IKZ 20 bar
Chip conveyor


X - Travel:                  1060mm
Y - Travel:                  510mm
Z - Travel:                  635mm
Table Length:                1200mm
Table Width:                 500mm
Feed rate X-Axis:            20000mm/min.
Feed rate Y-Axis:            20000mm/min.
Feed rate Z-Axis:            20000mm/min.
Spindle Taper:               40ISO/Bt/Mk
Power on spindle:            15kW
Speeds / ranges:             10000Rpm
ATC / revolver:              24
Coolant through spindle / Bar:20
Number of controlled axis:   3
Chip conveyor:               Yes
Coolantsystem:               Yes
Length:                      2915mm
Width:                       2361mm
Height:                      2800mm
Weight:                      7000kg


StatusSegunda mano
Information last updated23/09/2025 7:36:36
