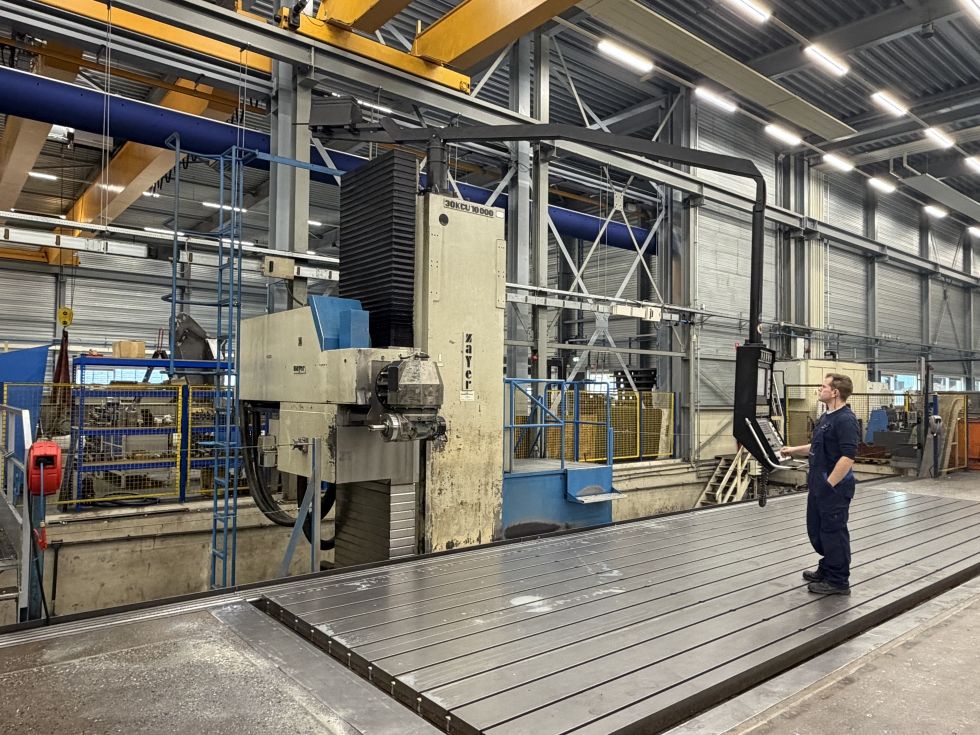

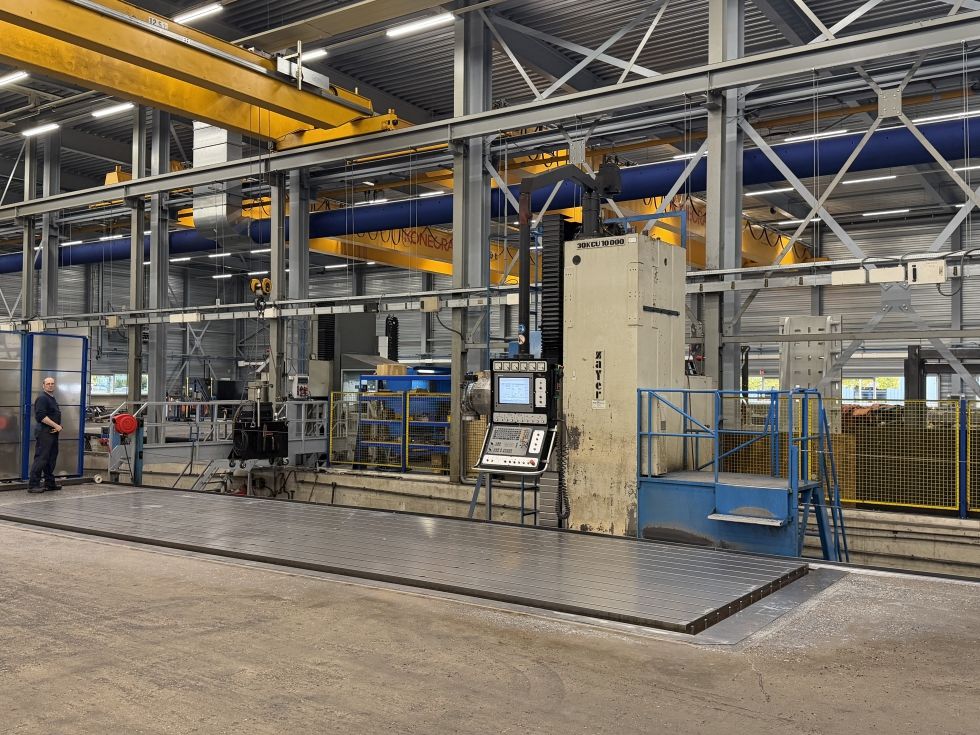

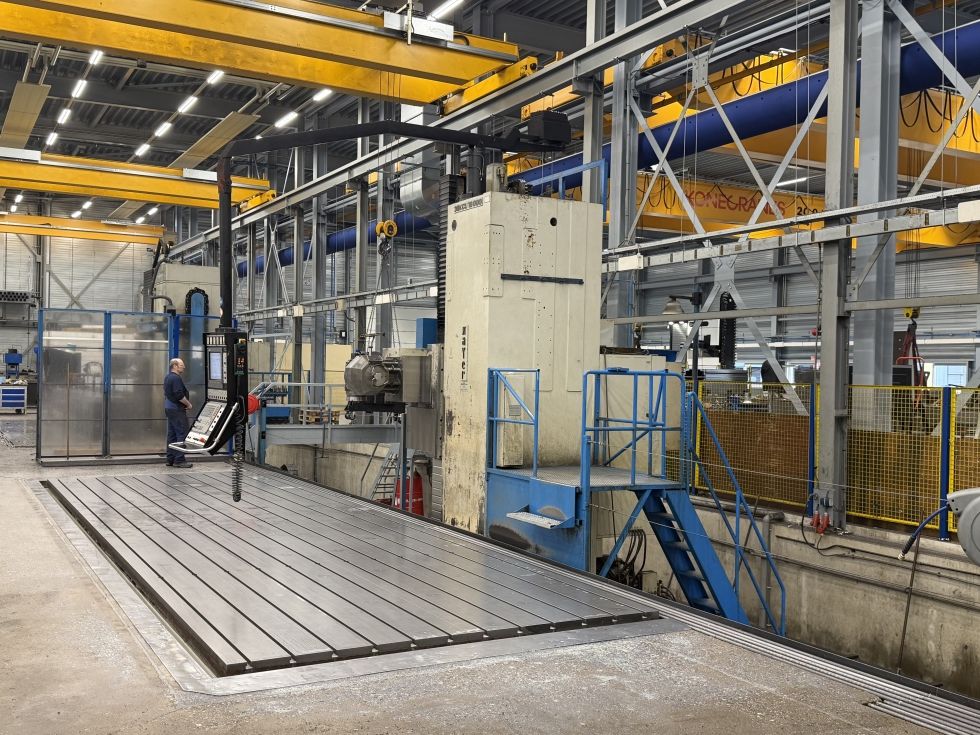

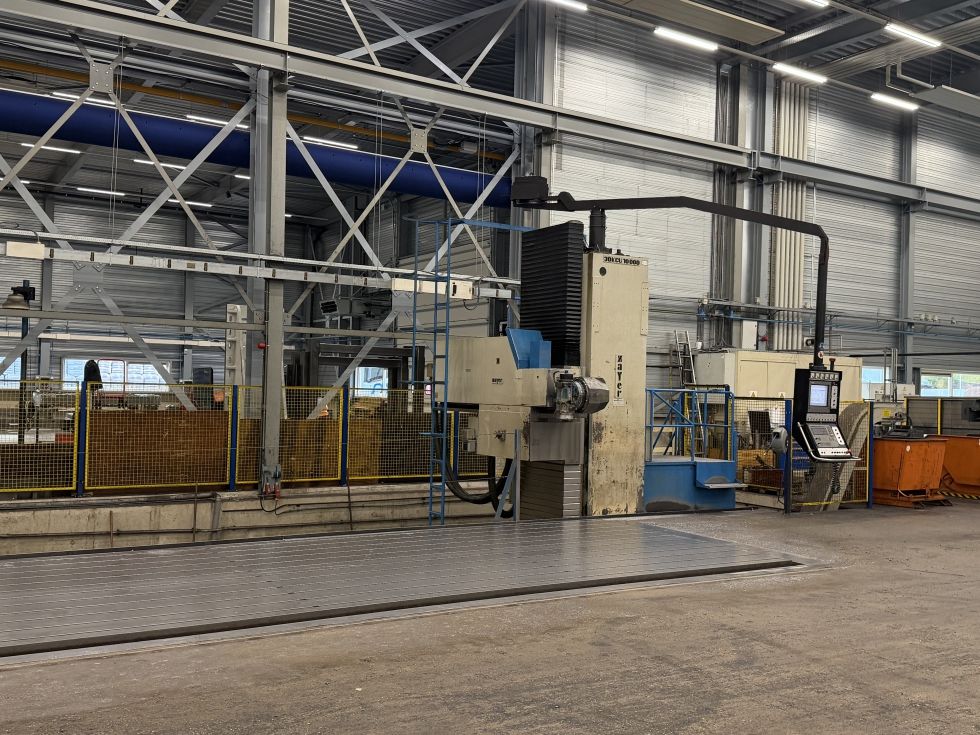

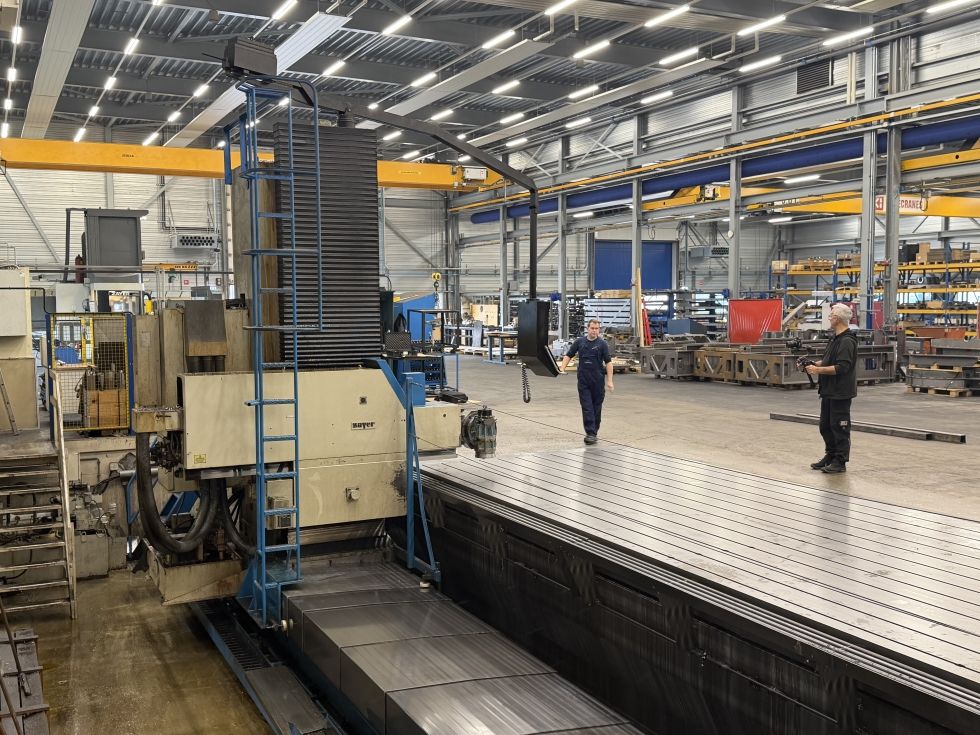

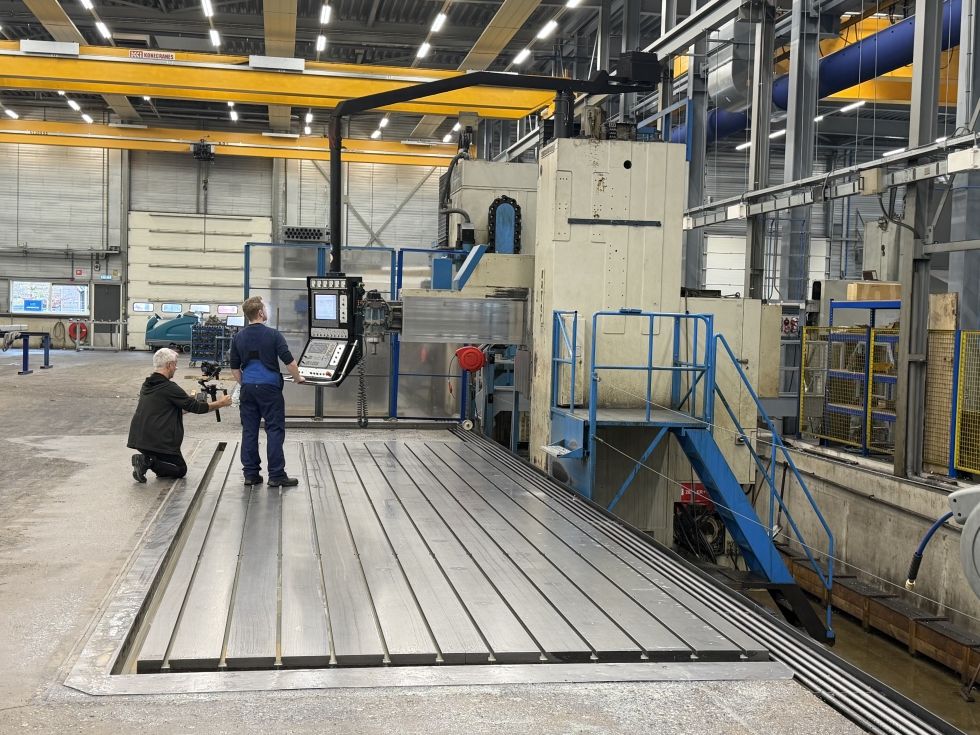

Bed type milling machine zayer - 30 kcu 10000

Zayer 30 KCU 10000

Geographic location
Países Bajos / Babberich
View phone
ClassificationMoving column milling machines / turret milling machines
NameBed type milling machine ZAYER - 30 KCU 10000
Customer referenceBed type milling machine ZAYER - 30 KCU 10000
BrandZayer
Model30 KCU 10000
Incorrect year1996
Details

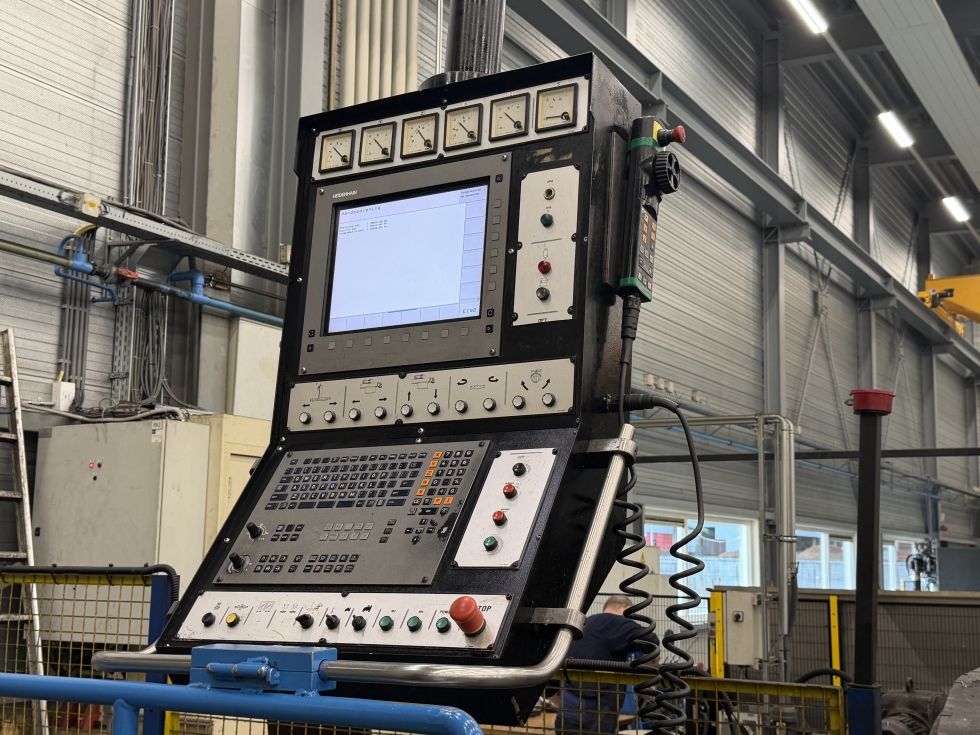

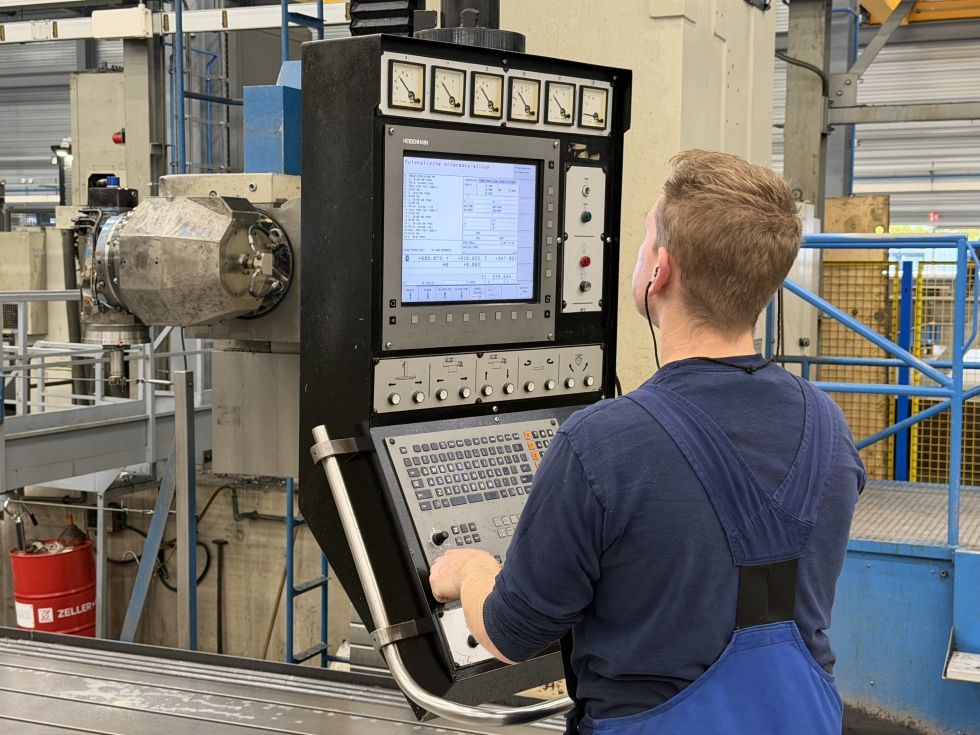

New HeidenHain iTNC530 controller in 2015

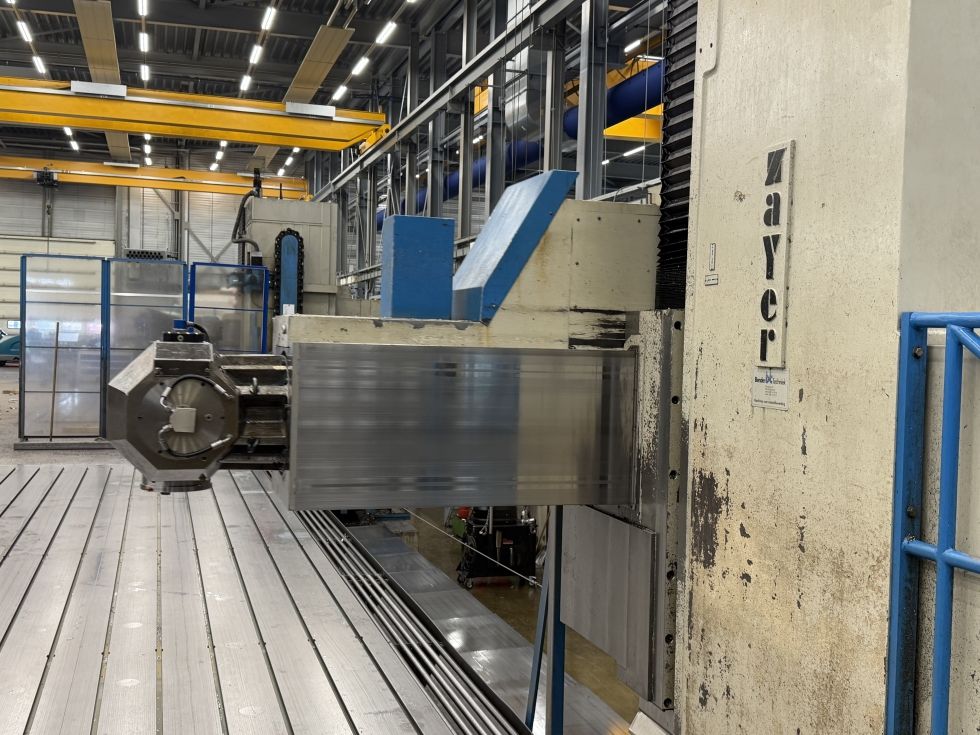

New bearing in head September 2025
X/Y/Z Linear measuring system
IKZ 15 Bar High pressure coolant
Central lubrication
Optional 2 x floorplates 6000 x 1250 x 245 mm #9240
T-28 with 5 T Slotts and 250 Jump


X-Axis:               10000mm
Y-Axis:               1500mm
Z-Axis:               2500mm
Table Length:         12000mm
Table Width:          1250mm
Table load:           20000Kg
Power on spindle:     37kW
Spindle speeds:       3500Rpm
Spindle Taper:        50ISO/Bt/Mk
Feed rate X-Axis:     10000mm/min.
Feed rate Y-Axis:     10000mm/min.
Feed rate Z-Axis:     10000mm/min.
Millingh

StatusSegunda mano
