High speed cutting with precision
Tower and Sheetmaster NOT included
Low operation cost
Compact foot print
Change table ( liftmaster and tower not included
Possible to cut reflective material (copper, brass)
Mild steel : 20 mm
Stainless: 15 mm
Aluminium: 12 mm
Copper / Brass: 6 mm

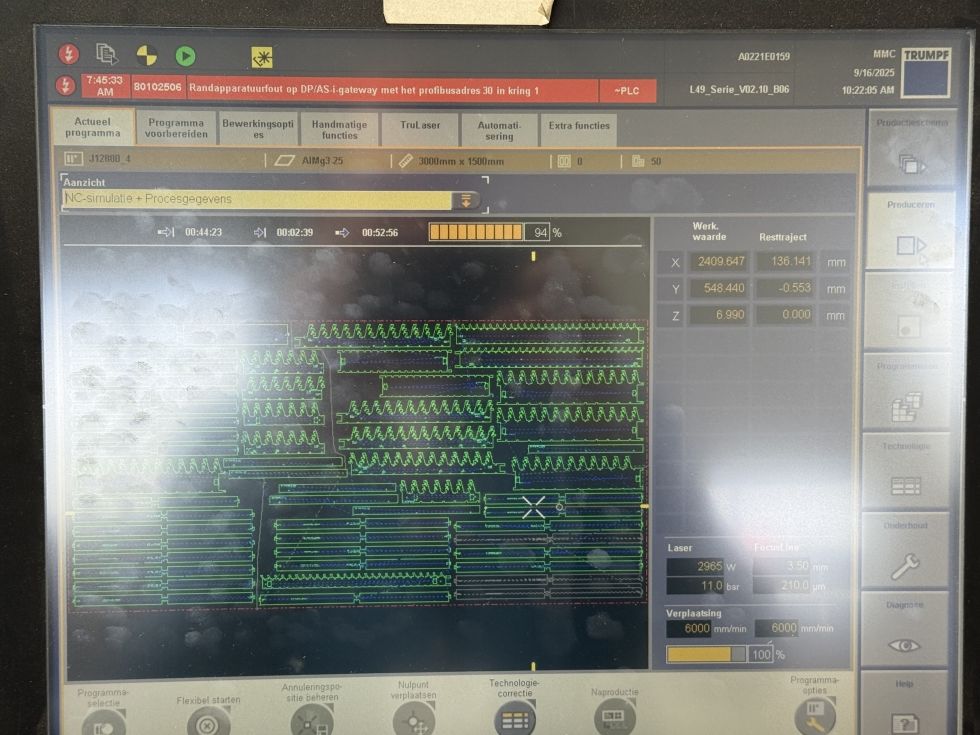

- User-friendly interface with graphical programming- Supports automatic nesting, cutting parameter libraries, and real-time diagnostics- Interfaces seamlessly with TRUMPF's automation modules and networking systems- Real-time control of laser, motion, and auxiliary systems

Working area X Axis:    3000mm
Working area Y Axis:    1500mm
Working area Z axis:    115mm
Table Length:           3000mm
Table Width:            1500mm
Power resonator:        3kW / Amp
Feed rate X-Axis:       170000mm/min.
Feed rate Y-Axis:       170000mm/min.
Feed rate Z-Axis:       170000mm/min.
Sheet master loading arm:No
Sheet tower storage:    No
Control:                TrueTops
Cutting hours:          25000H
Length:                 9000mm
Width:                  5000mm
Height:                 2200mm
Weight:                 7650kg
