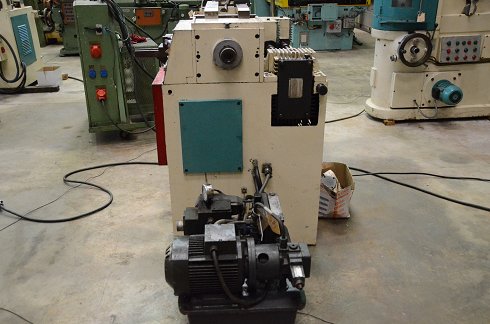

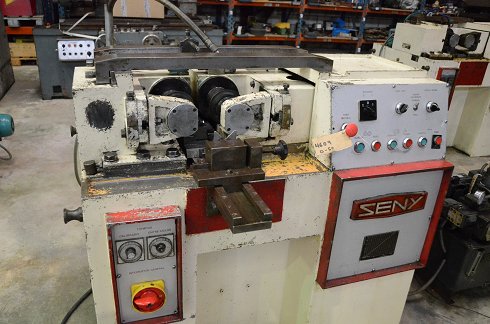

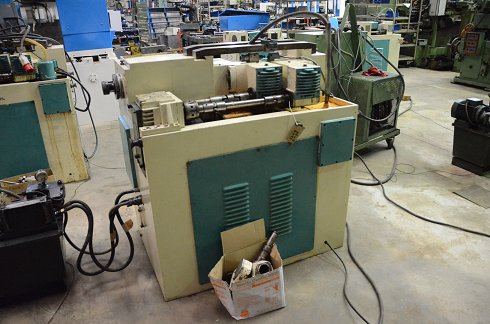

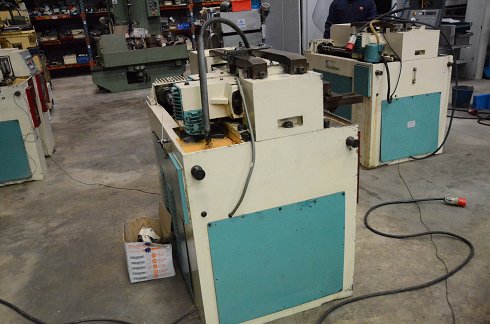

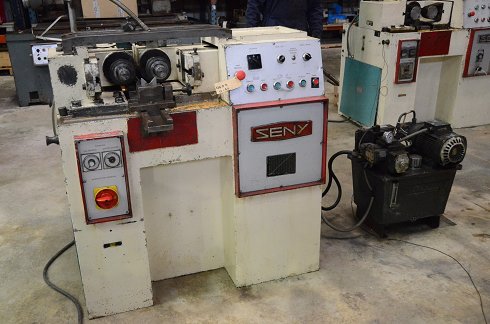

Laminadora de roscas seny d-50 h #4609
SENY D-50 H
Geographic location
España / Badajoz, Spain
| Classification | Roll forming machines |
|---|---|
| Name | Laminadora de roscas SENY D-50 H #4609 |
| Customer reference | 6555248 |
| Brand | SENY |
| Model | D-50 H |
| Incorrect year | |
| Details | Presion de laminado: 160 kN
Ø Piezas: 3mm min; 50mm max
Paso: 5.5mm max
Paso de acanalado: 2mm max
Anchura rodillo: 100mm max
Ø rodillo: 133mm min; 165mm max
Velocidad ejes para rodillos: 32 40 51 59 81 95 118 150 rpm
Ø eje porta-rodillos: 54 mm estandar; 69.85mm especial
Distancia entre ejes: 135mm min; 205mm max
Carrera de trabajo: 15min max
Avance: de 0.5mm/s hasta 6mm/s
Tiempo de laminado: de 0.1s hasta 100s
Tiempo de pausa: de 0.1s hasta 100s
Inclinacion ejes porta-rodillos: +/- 5 º
Motor principal: 5.5 Kw
Potencia electrica consumida: 7 Kw
Capcidad deposito: 130 L
Peso aprox: 1700 Kg
Adjuntos
Más información de la fuente |
| Status | Segunda mano |
| Information last updated | 23/07/2025 14:48:04 |
