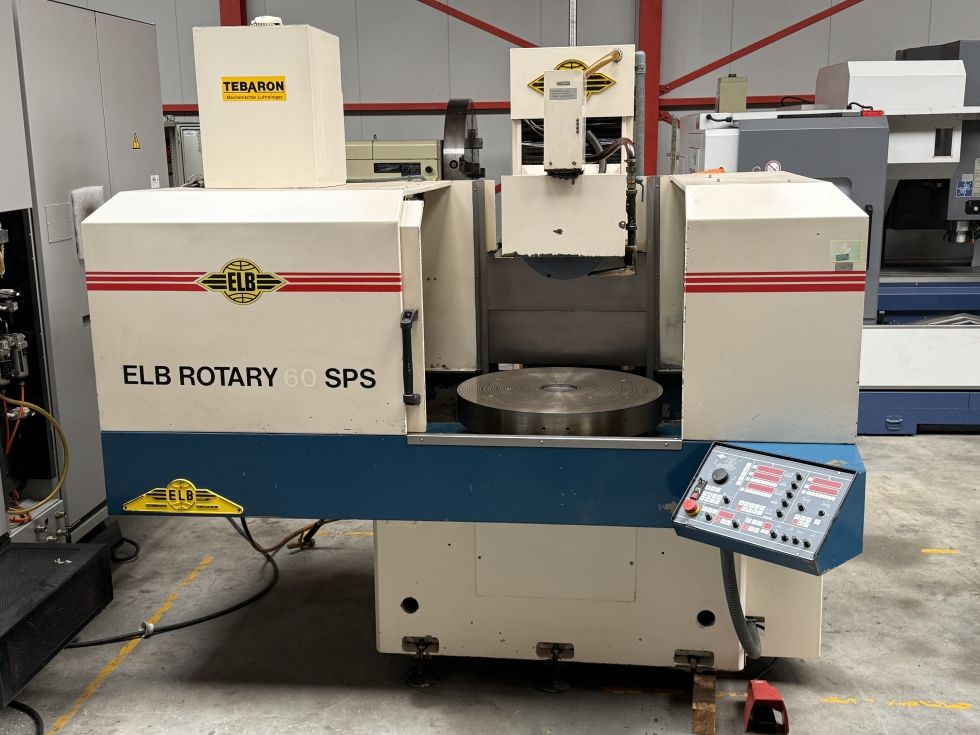

Surface grinder elb schliff - 80 sps

ELB Schliff 80 SPS

Geographic location
Países Bajos / Babberich
View phone
ClassificationFlat and tangential grinding machines
NameSurface grinder ELB Schliff - 80 SPS
Customer referenceSurface grinder ELB Schliff - 80 SPS
BrandELB Schliff
Model80 SPS
Incorrect year1996
Details

Coolant Tank filtration
Dressing device
Electronic Magnetic table 800 mm

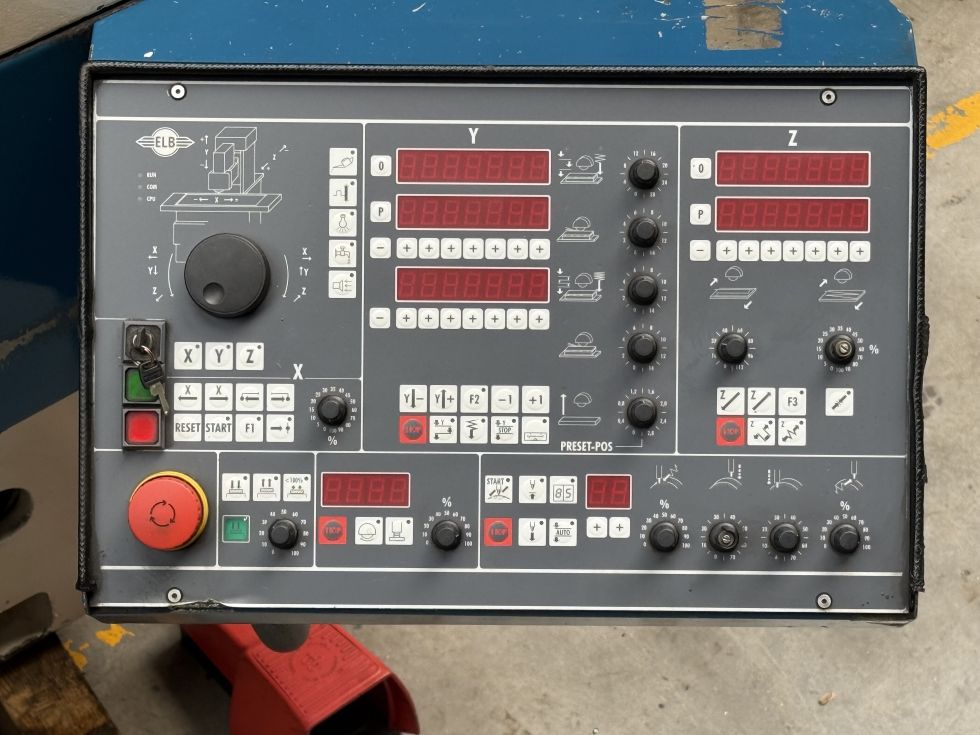

Controller SPS-NK

Table speed 20 - 80 1/Min
V-Box guide ways
Linear scales all axis
Mehanite casting
Accuracy 0,003 mm

X - Travel:              800mm
Y - Travel:              400mm
Z - Travel:              400mm
Table Length:            800mm
Table Width:             800mm
Table load:              300
Feed rate X-Axis:        1200mm/min.
Feed rate Z-Axis:        1500mm/min.
Grinding stone dimensions:400 x 100 x 127mm
Power:                   10kW
Length:                  2500mm
Width:                   2700mm
Height:                  2700mm
Weight:                  5200kg




StatusSegunda mano
Information last updated25/06/2025 9:44:49
