5-axis cnc machine (vmc) hedelius - tiltenta t6-2300

Hedelius (Alemania) Tiltenta T6-2300

Geographic location
Países Bajos / Babberich
View phone
ClassificationMiscellaneous milling machines

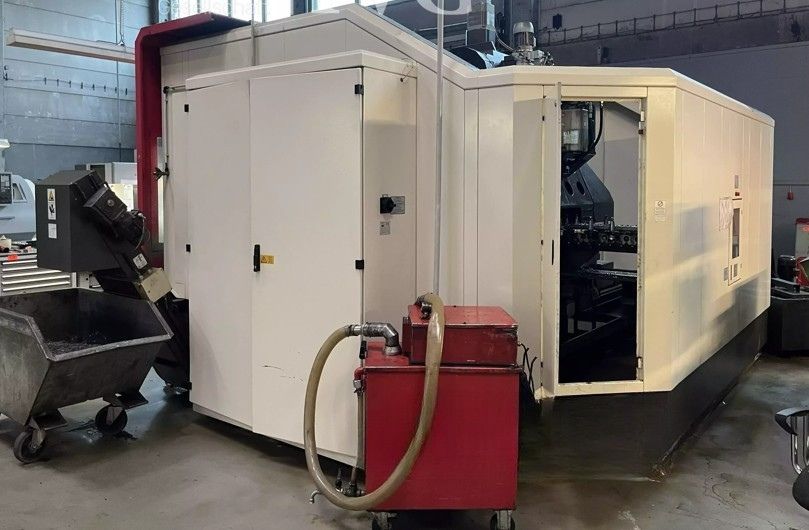

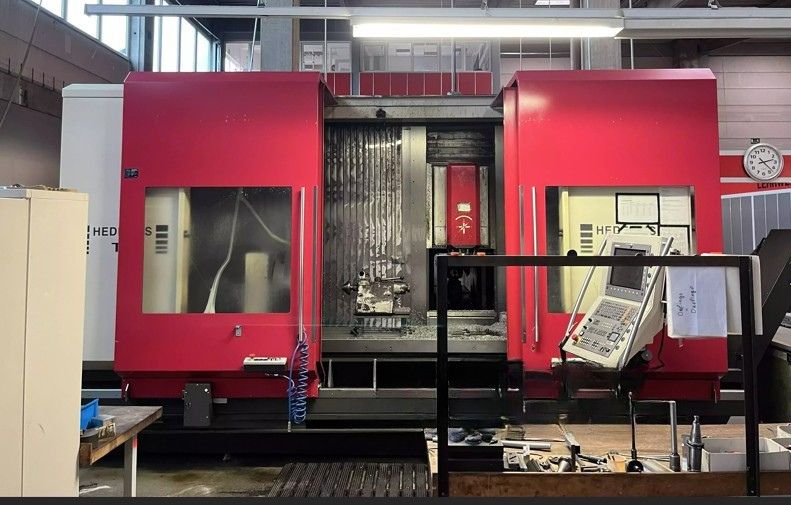

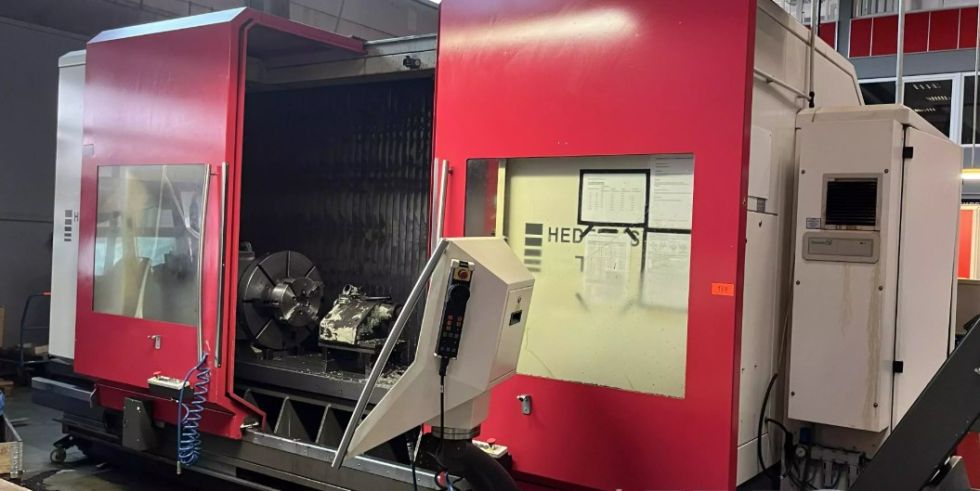

Name5-axis CNC machine (VMC) Hedelius - Tiltenta T6-2300
Customer reference5-axis CNC machine (VMC) Hedelius - Tiltenta T6-2300
BrandHedelius (Alemania)
ModelTiltenta T6-2300
Incorrect year2005
Detailsp;  60000mm/min.
Feed rate Y-Axis:            60000mm/min.
Feed rate Z-Axis:            60000mm/min.
Spindle Taper:               40ISO/Bt/Mk
Power on spindle:            26,5kW
Speeds / ranges:             12000Rpm
ATC / revolver:              40
Coolant through spindle / Bar:20
Number of controlled axis:   5
Chip conveyor:               Yes
Coolantsystem:               Yes
Length:                      7500mm
Width:                       3250mm
Height:                      3250mm
Weight:                      16800kg

Hedelius Tiltenta T6/2300 is an advanced 5-axis CNC machining centre designed for precision machining of medium to large workpieces. It combines a swivelling main spindle with an integrated NC rotary table, ensuring versatility and accuracy.

Key specifications:
- X-axis travel: 2300 mm
- Y-axis travel: 600 mm
- Z-axis travel: 695 mm
- Spindle power: 35 kW
- Max. speed: 12,000 rpm
- Tool magazine: 40 positions
- Tool holder: DIN 69871-A40
- Control: Heidenhain iTNC 530
- Max. workpiece weight on rotary table: 900 kg

This machine is ideal for applications in aerospace, mould making and general engineering, where precision and flexibility are essential. The combination of a swiveling spindle and a powerful rotary table enables complex workpieces to be machined in a single clamping operation, increasing efficiency and reducing setup times.

StatusSegunda mano
Information last updated16/06/2025 15:08:08
