Sliding bed lathe est ticino - et bm 570 mach-id 9024 make: est ticino type: et bm 570 year: 1987

EST TICINO ET BM 570

Geographic location
Países Bajos / Babberich
View phone
ClassificationParallel lathes
NameSliding bed lathe EST TICINO - ET BM 570 MACH-ID 9024 Make: EST TICINO Type: ET BM 570 Year: 1987
Customer referenceSliding bed lathe EST TICINO - ET BM 570 MACH-ID 9024 Make: EST TICINO Type: ET BM 570 Year: 1987
BrandEST TICINO
ModelET BM 570
Incorrect year1987
Details

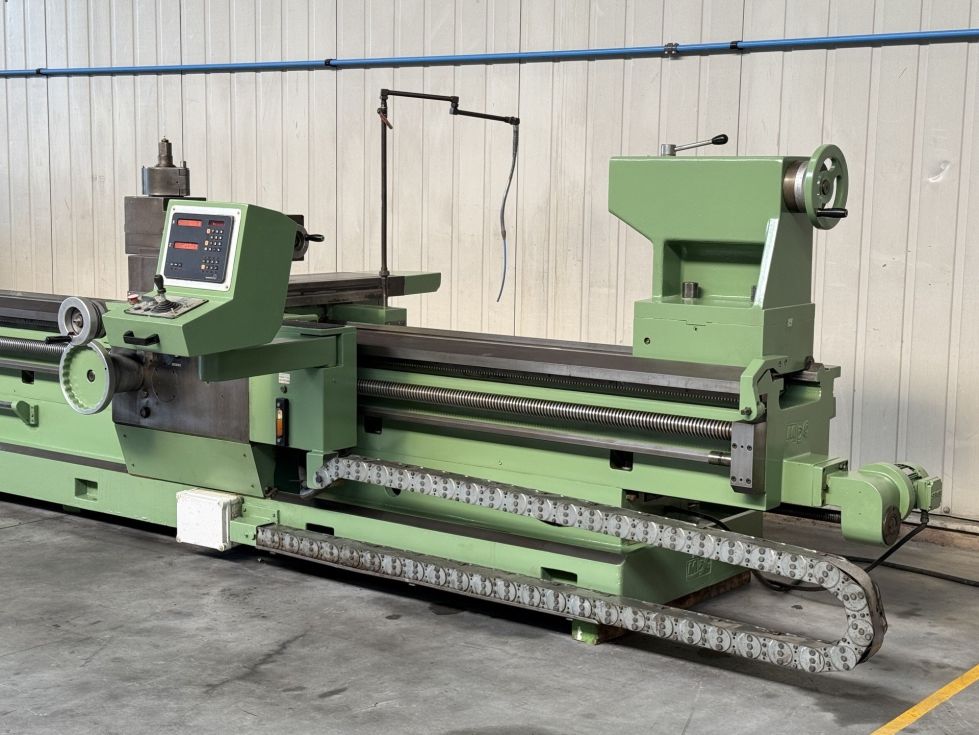

Sliding bed latheEST TICINO - ET BM 570

MACH-ID 9024Make:EST TICINOType:ET BM 570Year:1987

Please note: not original pictures its only 3000 length not 5000 mm

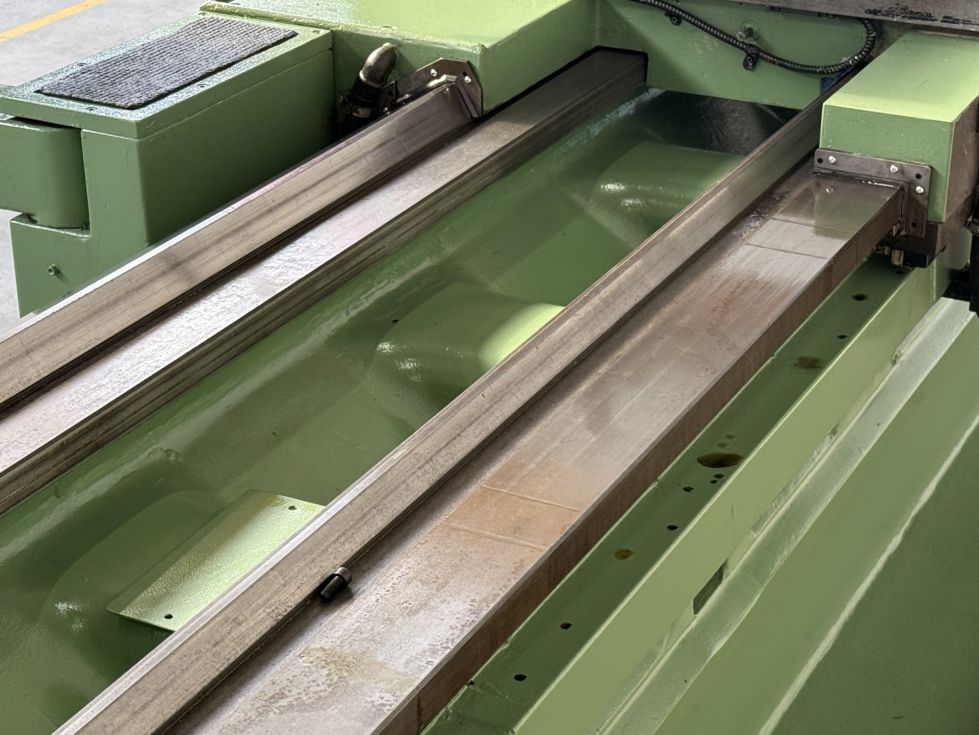

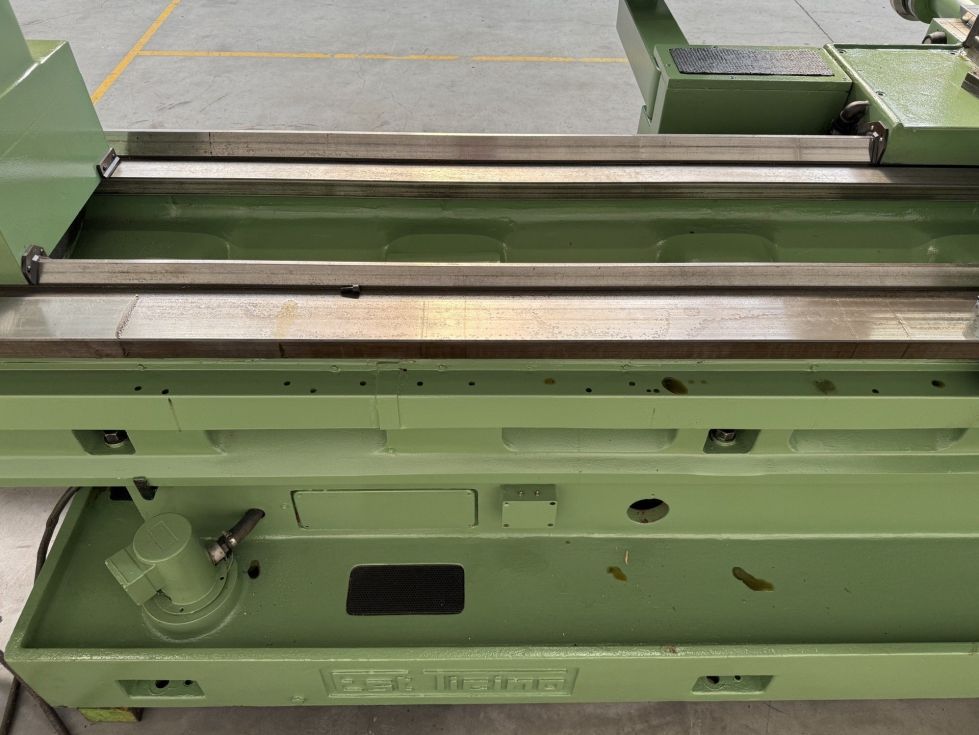

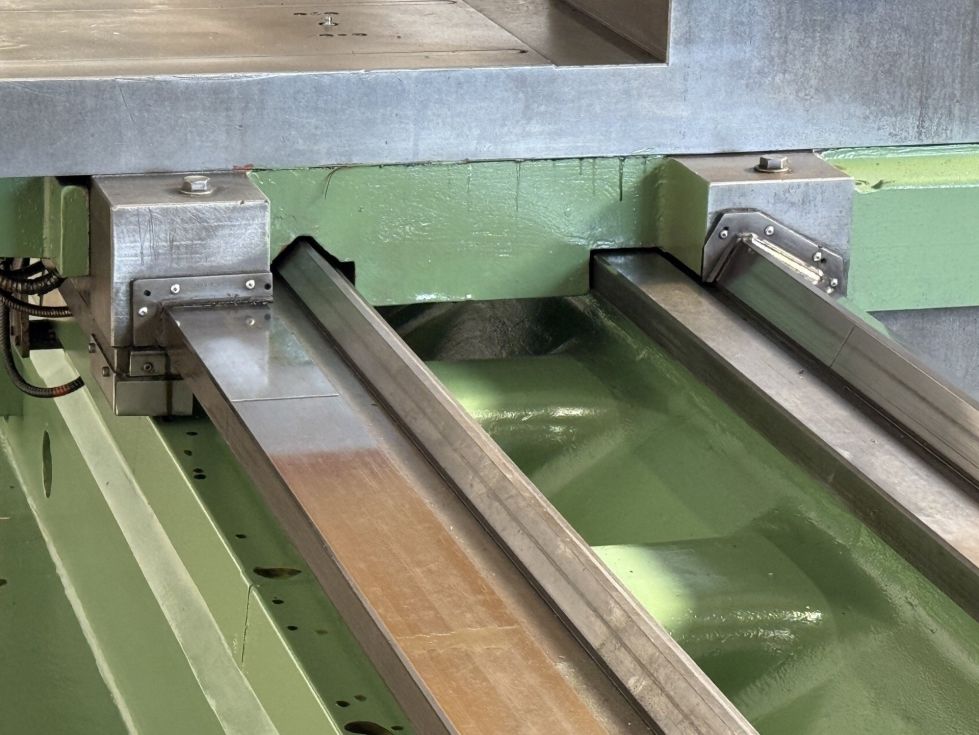

3 Guide way construction

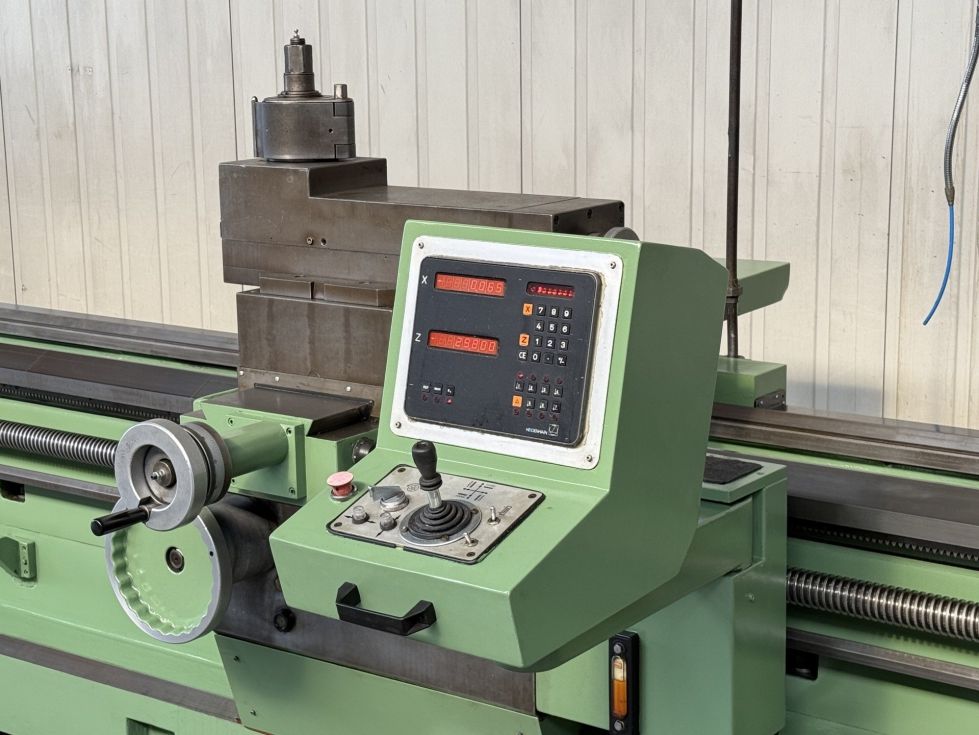

2 Axis HeidenHain Digital readout

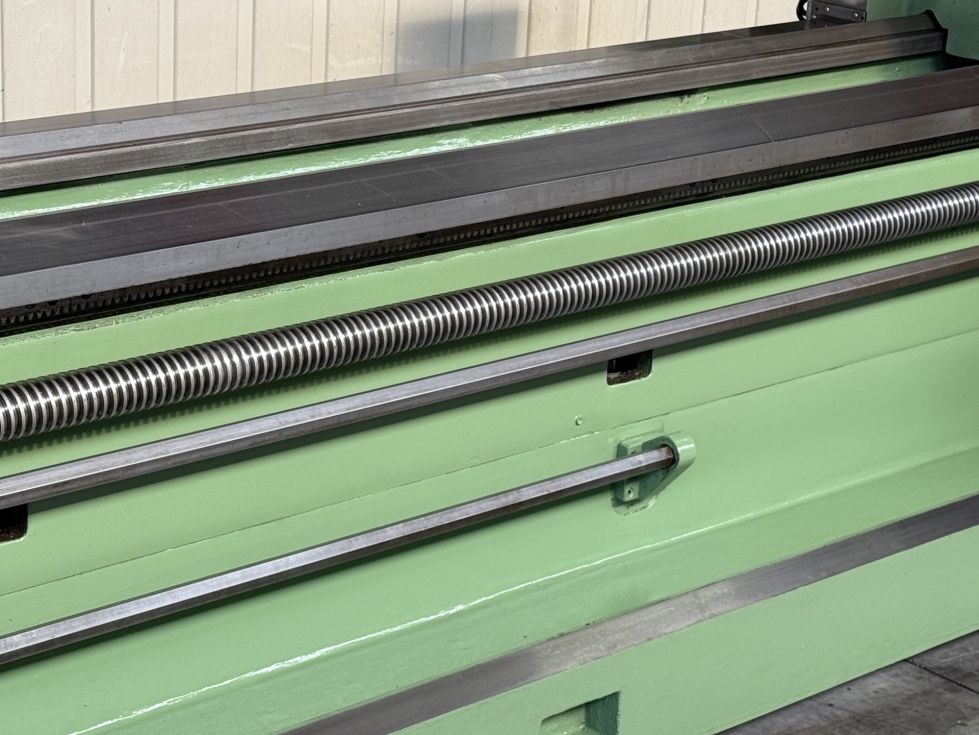

Feed in 3 directions all tool post slide
Central lubrication



Work load flying in chuck 2500 Kg
Work load NOT supported 8500 Kg
Work load supported 10000 Kg



Optional 4 chuck ca 1200 mm
Optional 4 chuck ca 1500 mm
Optional package with 3 steady rest fixed model from  .... to ....


DBC Turning Length:      5000 / 7500mm
Swing over bed Ø:        1140mm
Swing over cross slide Ø:810mm
Swing in the gap Ø:      1500mm
Gap length:              2500mm

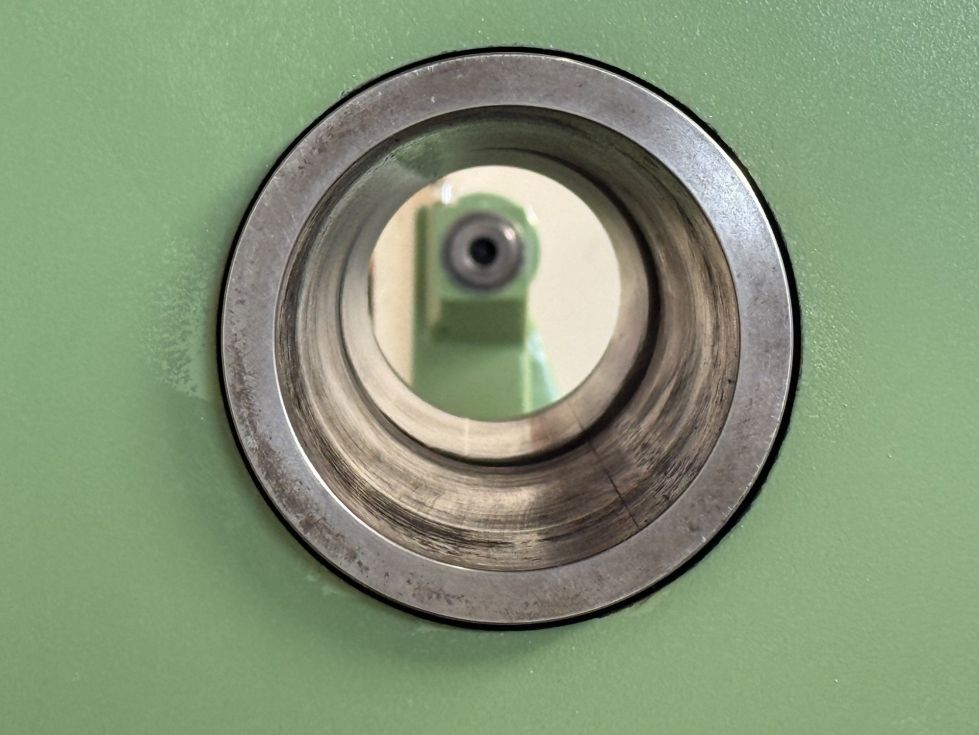

Spindle bore:            130mm
Bed width:               600mm
Tailstock spindle Ø:     130Ø
Stroke pinole:           300mm
Spindle taper:           6Mk
Power:                   25kW
Speeds / ranges:         9 - 900Rpm
Length:                  7500mm
Width:                   2300mm
Height:                  1650mm
Weight:                  12000kg


StatusSegunda mano
Information last updated25/03/2025 16:19:22
