Fresadora correa fp40-40s

CORREA FP40-40S

Geographic location
España
ClassificationMiscellaneous milling machines
NameFresadora CORREA FP40-40S
Customer referencefresadora-correa-fp40-40s-2-14837
BrandCORREA
ModelFP40-40S
Incorrect year
Details

Características técnicas

Referencia:073-TM76
Dimensiones mesa:4500x1250 mm
Peso máximo sobre mesa:10.000 kgs
Recorrido Eje X:4000 mm
Recorrido Eje Y:2500 mm
Recorrido Eje Z:1200 mm
Distancia entre columnas:2040 mm

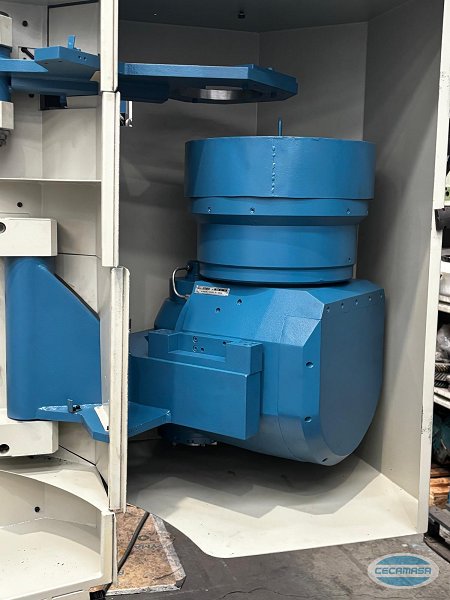

Cabezales:Automático UAG 2.5º (3000 rpm) Salida directa (5000 rpm)
Cono:ISO-50
Gama de velocidades:5000 rpm
Amarre:hidráulico
Potencia del husillo:30 kw
Avances de trabajo:2-7500 mm/min
Avances rápidos (X-Y,Z):15000 m/min - 12000 mm/min
Peso aprox máquina:30.500 kgs
Dimensiones máquina:10975x4170x4645 mm
Año:2000 (Retrofit 2025)
Equipada con:

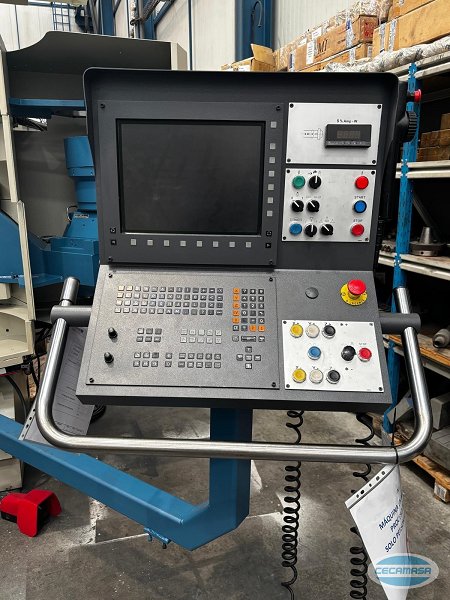

Control:HEIDENHAIN TNC-426
Volante electrónico:HR-410

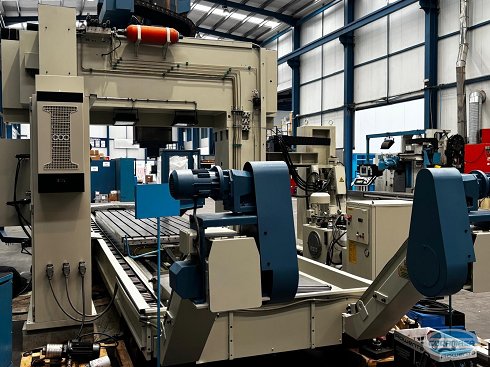

Extractor de virutas:2
Cargador de htas:ATC 30
Refrigeración:A través del cabezal
Preparación para sonda de pieza y herramienta:RENISHAW RMI-O

Vea el anuncio de Fresadora CORREA FP40-40S de ocasión en cecamasa.com


Vea el vídeo del equipo en YouTube

StatusSegunda mano
Information last updated17/02/2026 15:19:23
