Pressbrake amada - hfe 100-3l + astro 50y

Amada (Japón) HFE 100-3L + ASTRO 50Y

Geographic location
Países Bajos / Babberich
View phone
ClassificationHydraulic press brakes
NamePressbrake AMADA - HFE 100-3L + ASTRO 50Y
Customer referencePressbrake AMADA - HFE 100-3L + ASTRO 50Y
BrandAmada (Japón)
ModelHFE 100-3L + ASTRO 50Y
Incorrect year2007
Details

Long stroke CNC Press brake
8 Axis controlled

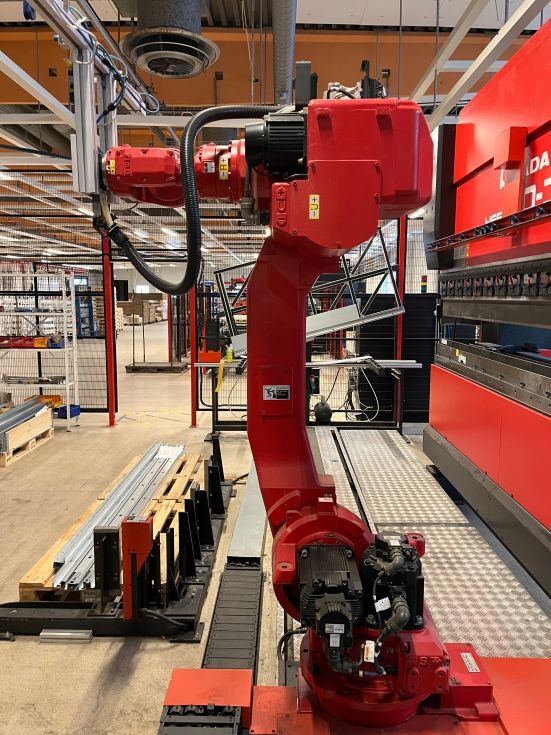

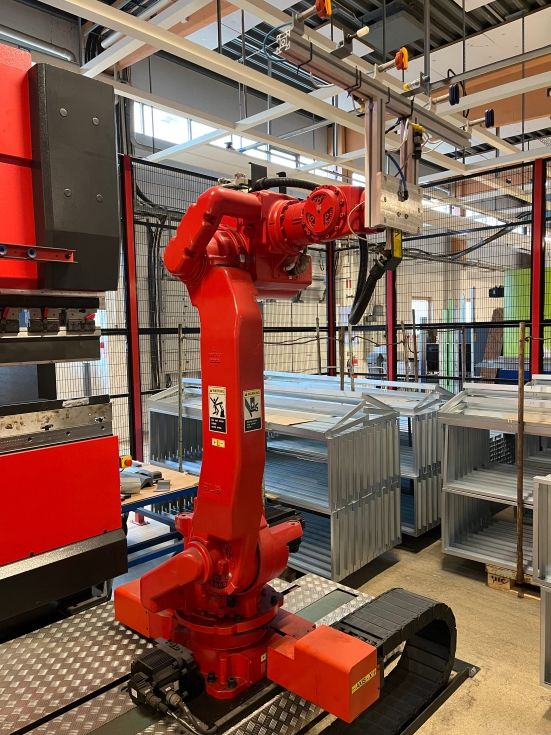

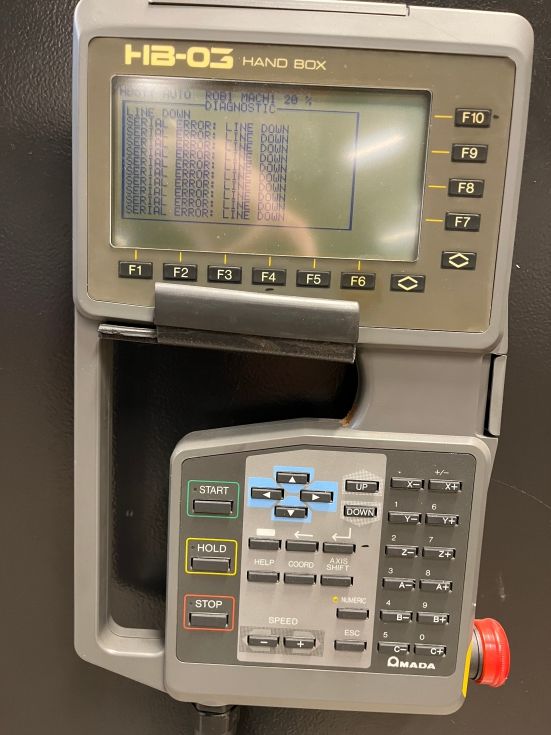

ASTRO 50Y AMADA Robot

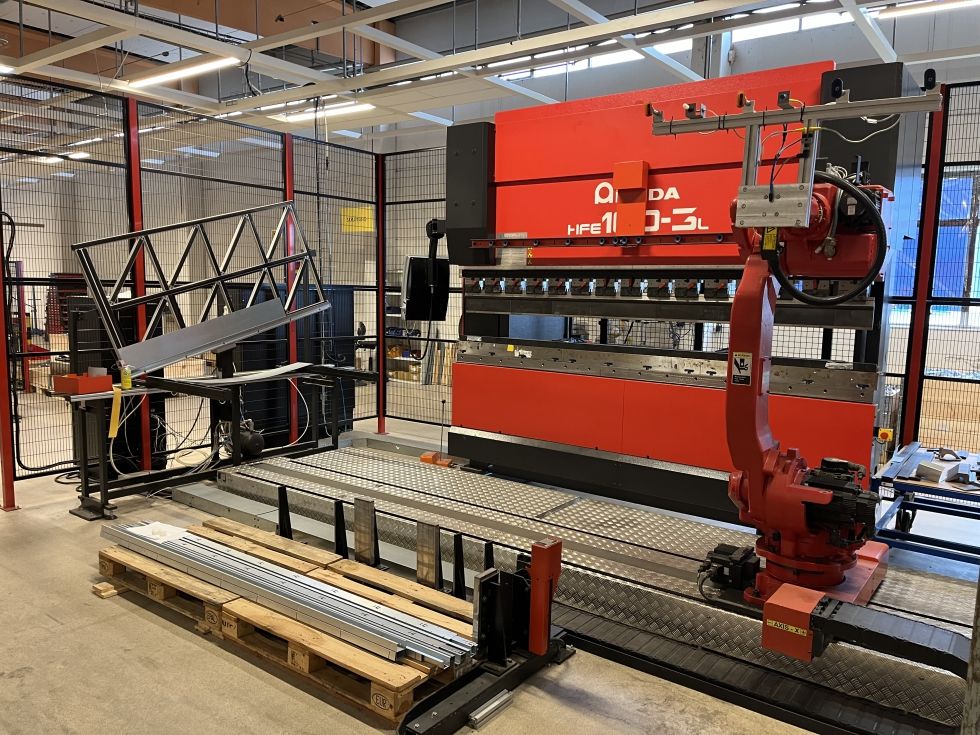

ASTRO 50 Y bending cell is composed of an HFE Pressbrake associated with an 7-axis robot.
When machining medium / fine thick and large dimension parts.
Machine turns out to be highly polyvalent thanks to a 4-m long linearaxis and numerous grippers.

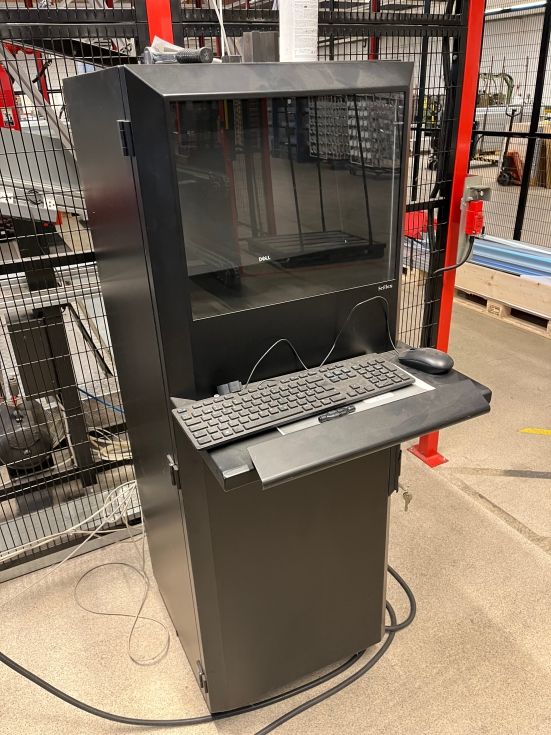

Programming has become particularly easy through EASY CAM software
Safety CE Fence around machine and tobot


Max. bending length:        3110mm
Distance between column:    2705mm
Max. pressing force:        100T
Dis. Beam - Table:          580?mm
Beam stroke:                200mm
Troth beam:                 420mm
Approch speed:              100mm/min.
Working speed:              10mm/min.
Return speed:               100mm/min.
Adjustment X-Axis back gauge:1000mm
Number of controlled axis:  8 + 7 Robot
Control:                    OPERATEUR
Power:                      14kW
Length:                     8000mm
Width:                      4000mm
Height:                     2800mm
Weight:                     7800kg


StatusSegunda mano
Information last updated05/02/2025 7:14:40
