Correa cf25/25 - 625064 [en reconstrucción]

Correa CF25/25

Geographic location
España / Burgos (Burgos)
ClassificationBed-type milling machine
NameCORREA CF25/25 - 625064 [En reconstrucción]
Customer referencecorrea-cf2525---625064
BrandCorrea
ModelCF25/25
Incorrect year2008
Details
Reconstruida
2025
Control numérico
HEIDENHAIN TNC-530
Dimensiones
  • Dimensiones mesa: 2.800 x 1.000 mm
  • Número ranuras: 5
  • Dimensiones ranuras: 22mm
Recorridos
  • Recorrido longitudinal X: 2.500 mm
  • Recorrido transversal Y: 1.000 mm
  • Recorrido vertical Z: 1.500 mm
Cabezal

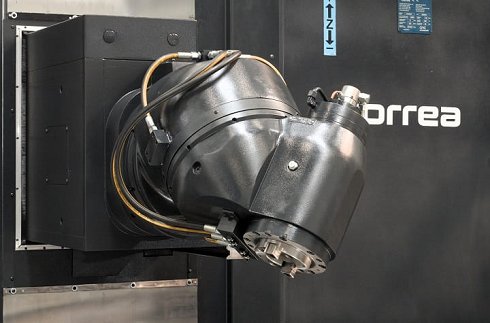

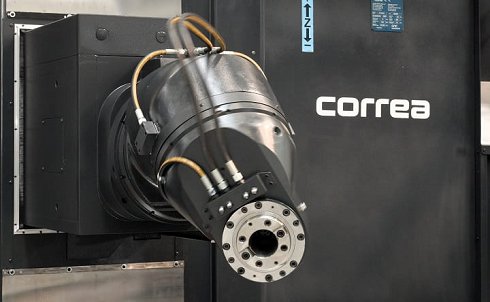

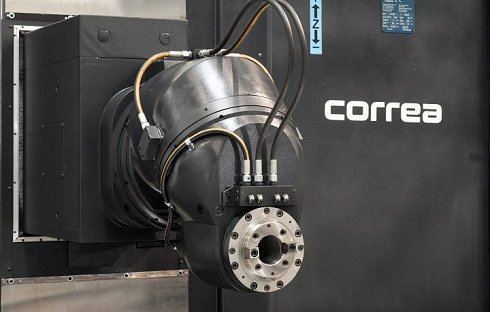

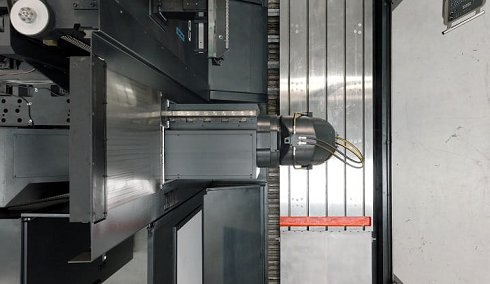

  • Modelo cabezal: Universal Automático UDG (2,5º)
  • Amarre herramienta: Hidráulico
  • Cono: ISO 50 (DIN 69871) / Tirante: DIN 69872
  • Gama de velocidades: 20 - 3.000 rpm
  • Potencia mandrino: 22 kW
Avances
  • Avances: 5.000 mm/min
  • Avances rápidos (X-Y-Z): 20.000 mm/min
Pesos
  • Peso máximo sobre mesa: 6.000 kg
  • Peso aproximado de máquina: 20.000 kg
  • Dimensiones de máquina aprox.: 7.750 x 4.400 x 3.100 mm
Accesorios
  • Carenado
  • Nuevo cambiador automático de herramientas: ATC-30
  • Evacuador de virutas longitudinal trasero
  • Volante electrónico: HR-410
  • Taladrina externa e interna alta presión
Condiciones de venta
  • Garantía: Repuestos mecánicos 6 meses
  • Precio y condiciones de venta: Consultar
Más información

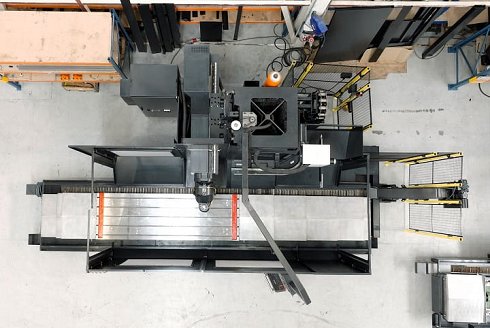

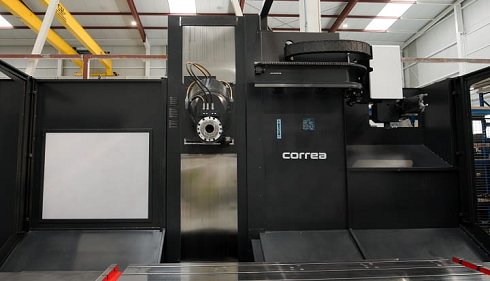

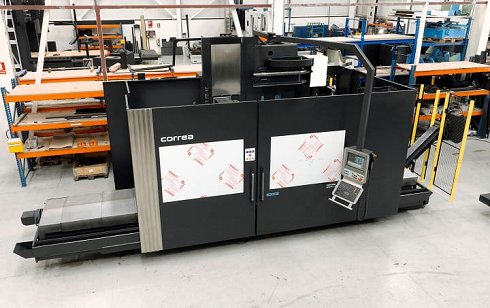

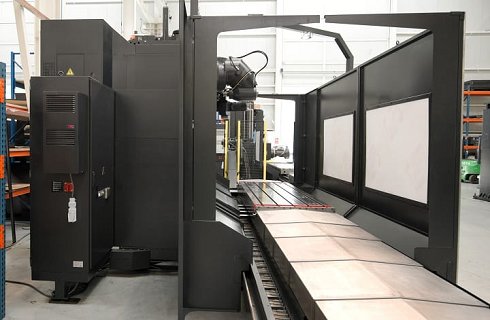

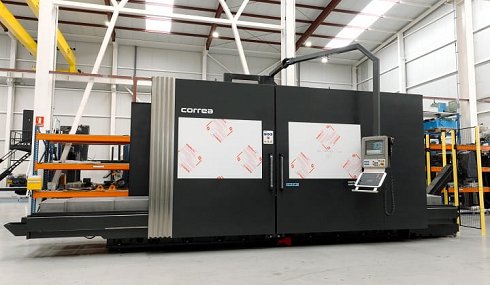

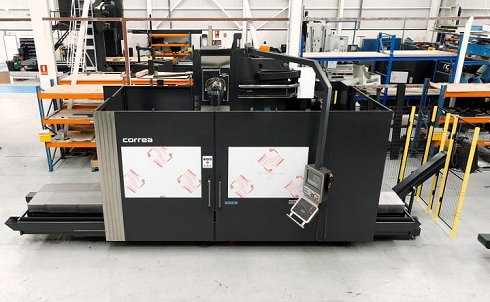

Fresadora usada CORREA CF25/25 reconstruida por NC Service
StatusSegunda mano
Information last updated31/03/2026 14:25:01
