3-axis cnc machine (vmc) kunzmann - ba 1000

Kunzmann (Alemania) BA 1000

Geographic location
Países Bajos / Babberich
View phone
ClassificationMachining centres
Name3-axis CNC machine (VMC) KUNZMANN - BA 1000
Customer reference3-axis CNC machine (VMC) KUNZMANN - BA 1000
BrandKunzmann (Alemania)
ModelBA 1000
Incorrect year2015
Details

Linear guideways in X + Y Axis
Flatt guideways in Z Axis
Grinded ballscrews 40 + 50 mm
New price EUR 140.000


X - Travel:                  1020mm
Y - Travel:                  620mm
Z - Travel:                  610mm
Table Length:                1200mm
Table Width:                 610mm
Table load:                  850
Feed rate X-Axis:            30000mm/min.
Feed rate Y-Axis:            30000mm/min.
Feed rate Z-Axis:            24000mm/min.
Spindle Taper:               40ISO/Bt/Mk

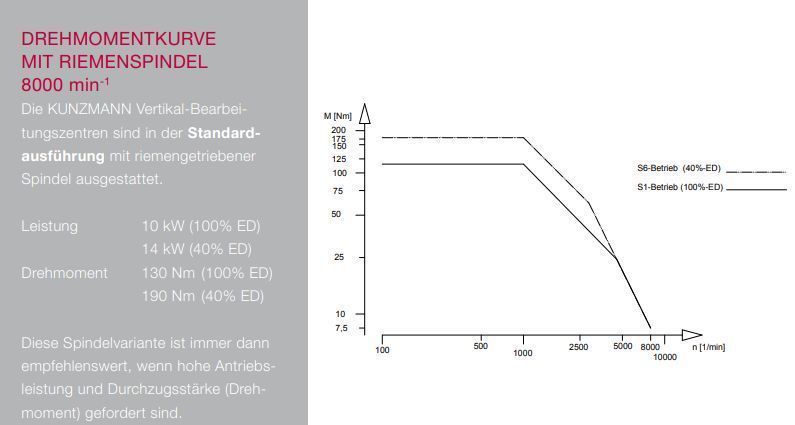

Power on spindle:            14kW
Speeds / ranges:             8000Rpm
ATC / revolver:              32
Coolant through spindle / Bar:20
Number of controlled axis:   3
Chip conveyor:               Yes
Coolantsystem:               Yes

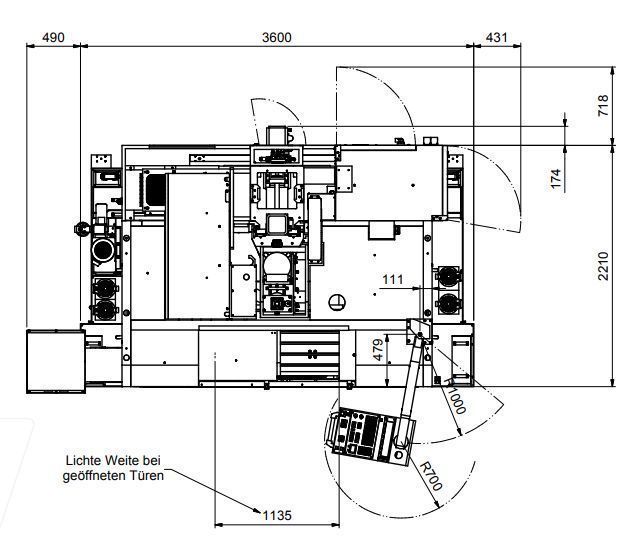

Length:                      3600mm
Width:                       2210mm

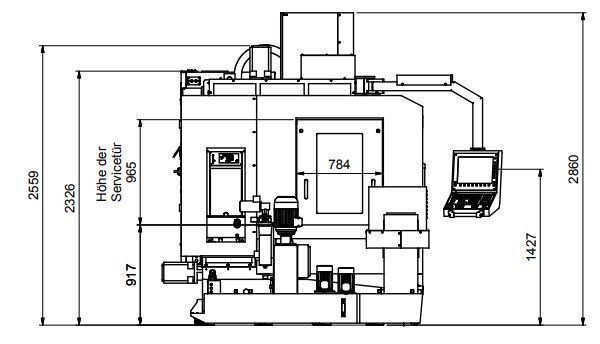

Height:                      2680mm
Weight:                      8450kg


StatusSegunda mano
Information last updated09/08/2024 10:36:08
