3-axis cnc machine (vmc) brother - tc-31a

Brother (Japón) TC-31A

Geographic location
Países Bajos / Babberich
View phone
ClassificationMachining centres
Name3-axis CNC machine (VMC) Brother - TC-31A
Customer reference3-axis CNC machine (VMC) Brother - TC-31A
BrandBrother (Japón)
ModelTC-31A
Incorrect year2002
Details

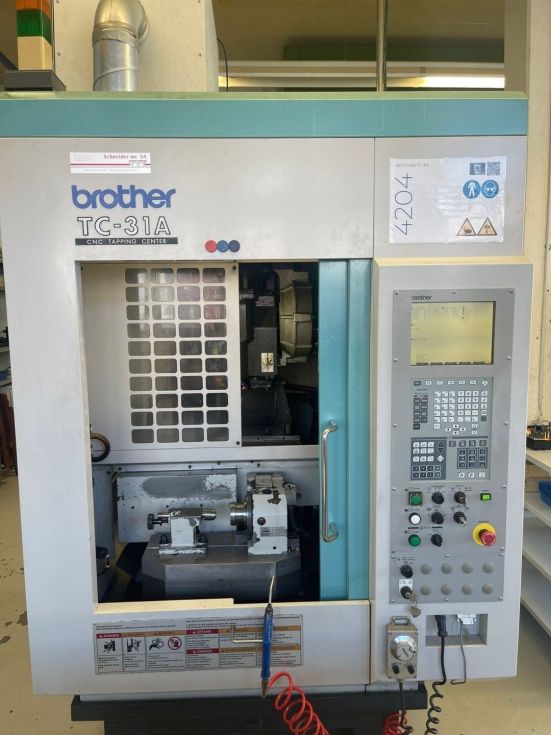

3-axis CNC machine (VMC) Brother - TC-31A

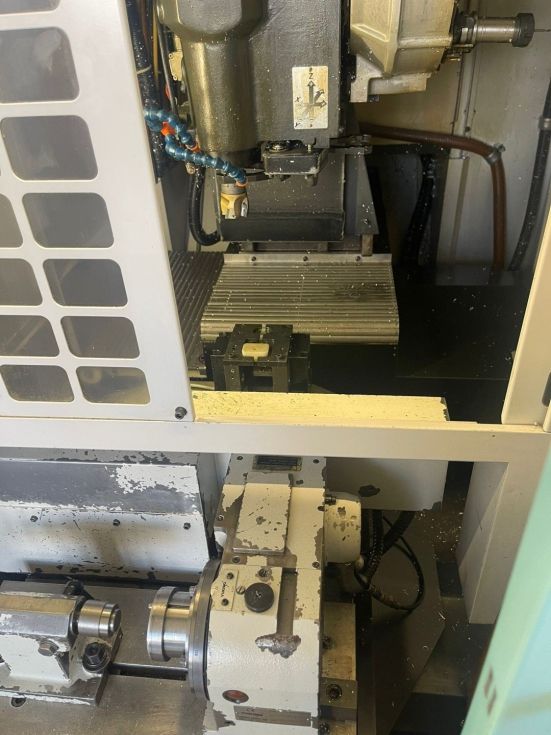

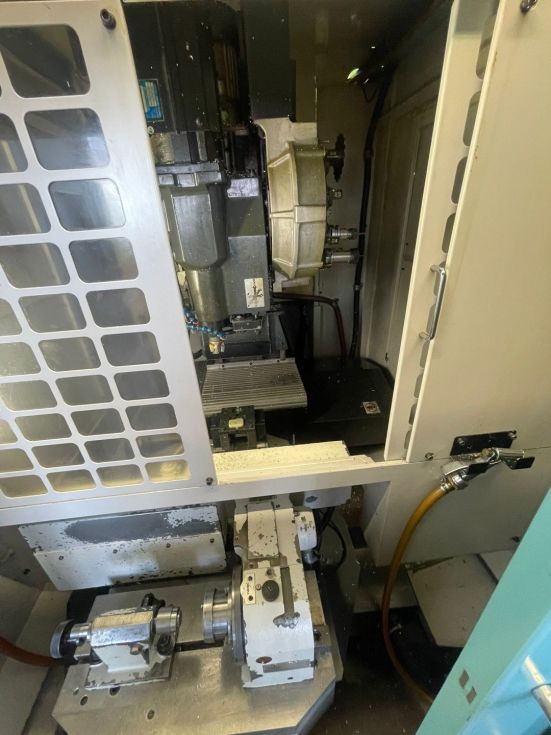

4e axis with tailstock
spindle hours 8000 H
power on 20000 H


X - Travel:              350mm
Y - Travel:              250mm
Z - Travel:              350mm
Table Length:            500mm
Table Width:             270mm
Table load:              80
Feed rate X-Axis:        50000mm/min.
Feed rate Y-Axis:        50000mm/min.
Feed rate Z-Axis:        50000mm/min.
Spindle Taper:           Bt30ISO/Bt/Mk
Speeds / ranges:         16000Rpm
ATC / revolver:          25
Number of controlled axis:3 + 1
Coolantsystem:           Yes
Length:                  2000mm
Width:                   2000mm
Height:                  2000mm
Weight:                  2000kg


StatusSegunda mano
Information last updated25/01/2024 16:10:07
