CNC Crowning
Hydraulic MODUFIX Tool clamping
Hydraulic lower tool clamping
CNC Finger Backgauge Z1 and Z2
6 Axis backgauge X1/X2, R1/R2 and Z1/Z2
Network card BNC-with RJ-45 Connector
ToPs 600 Software

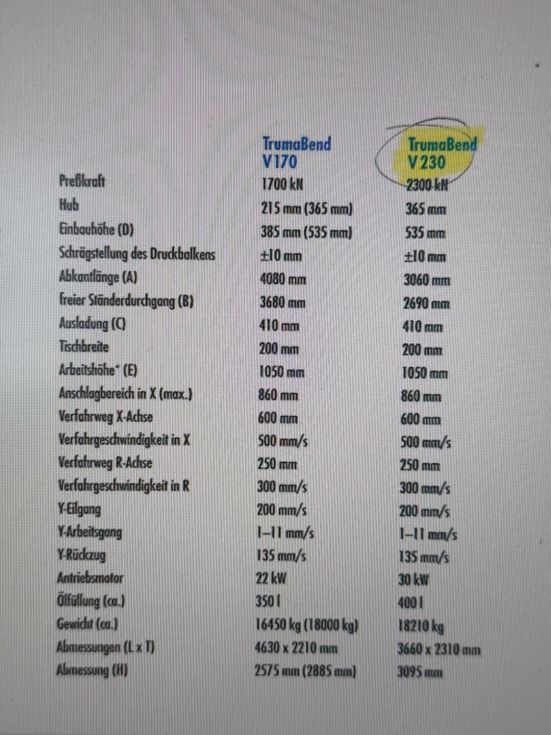

Max. bending length:        3060mm
Distance between column:    2690mm
Max. pressing force:        230T
Dis. Beam - Table:          535mm
Beam stroke:                365mm
Table Width:                200mm
Troth beam:                 410mm
Approch speed:              200mm/min.
Working speed:              11mm/min.
Return speed:               135mm/min.
Adjustment X-Axis back gauge:1000mm
Number of controlled axis:  9
Crowning:                   yes
Hydraulic toolclamping:     yes
Power:                      30kW
Length:                     2310mm
Width:                      3660mm
Height:                     3095mm
Weight:                     18209kg
