CNC Crowning

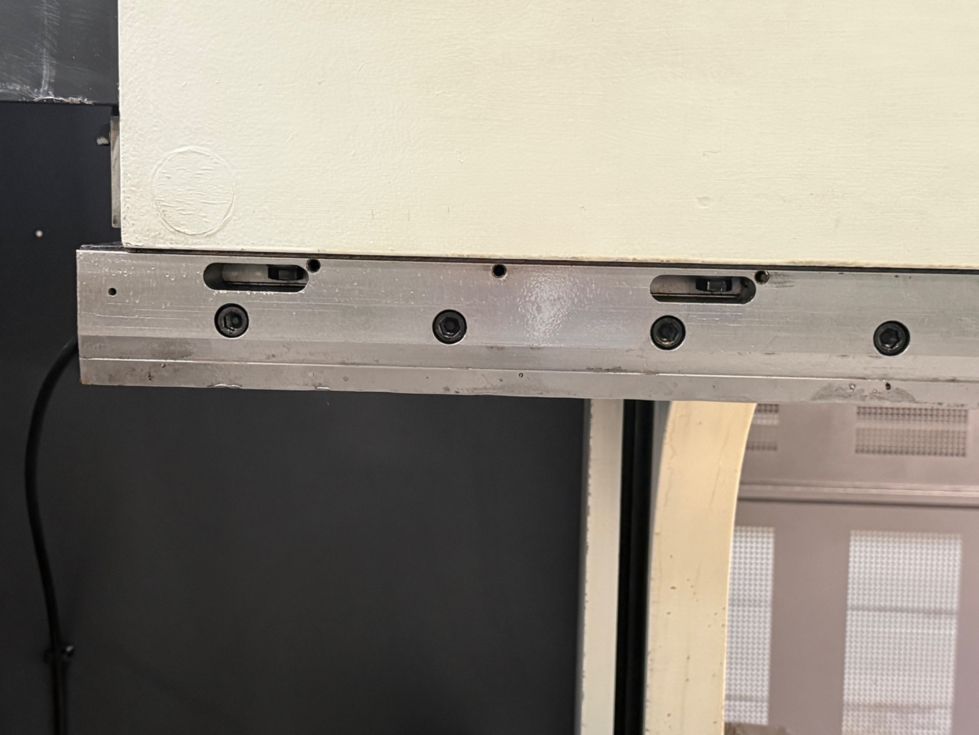

Hydraulic tool clamping

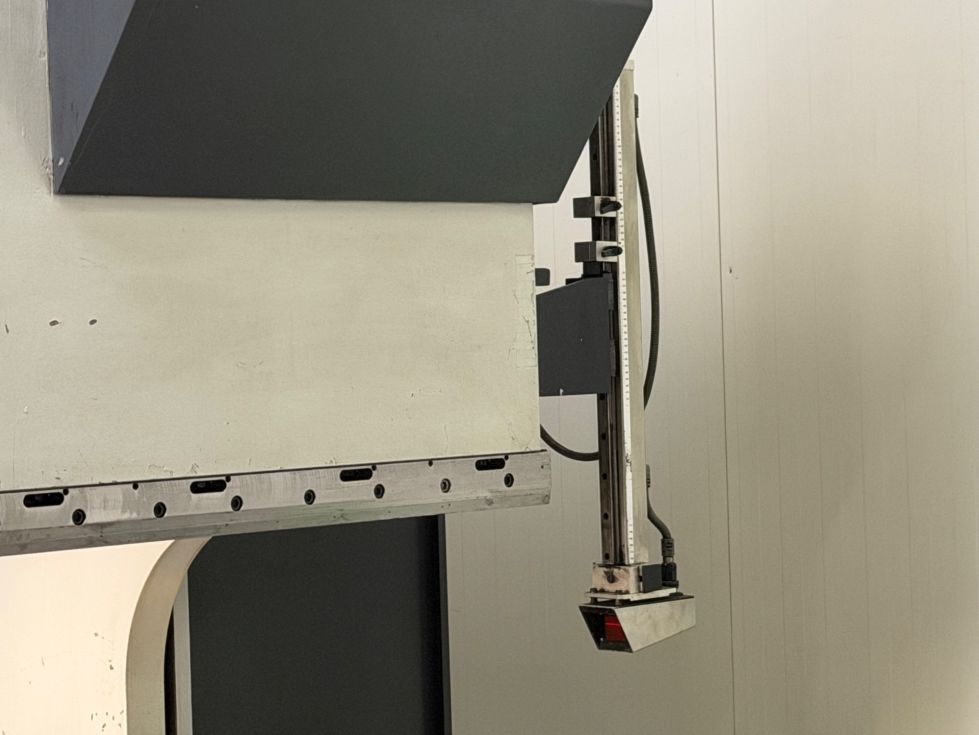

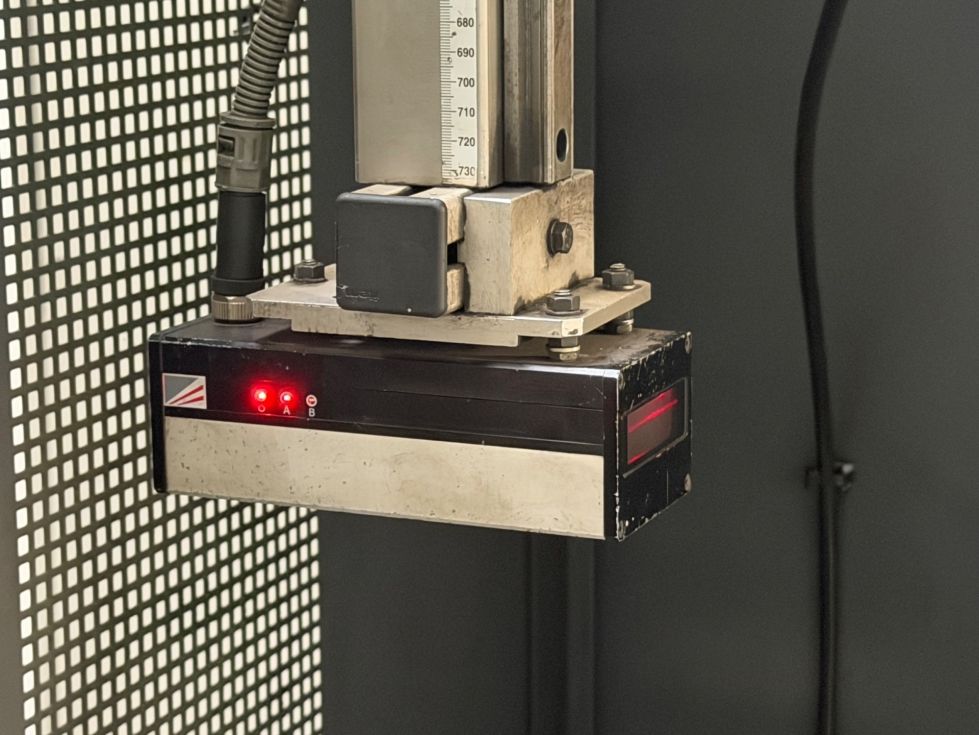

EFL Easy form laser measuring & correction system
Set Tooling
Laser guide protection
Controlled axis Y1/Y2/X/R/V-Axis

Max. bending length:        4000mm
Distance between column:    3150mm
Max. pressing force:        320T
Dis. Beam - Table:          570mm
Beam stroke:                300mm
Table Width:                200mm
Troth beam:                 400mm
Approch speed:              120mm/min.
Working speed:              14mm/min.
Return speed:               130mm/min.

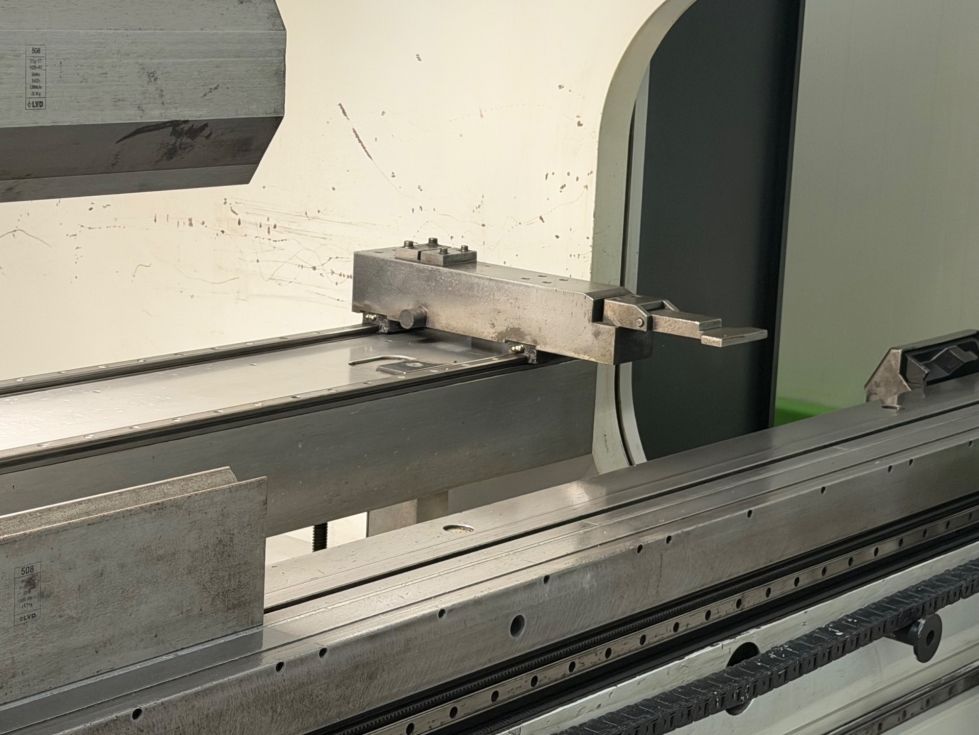

Adjustment X-Axis back gauge:1000mm

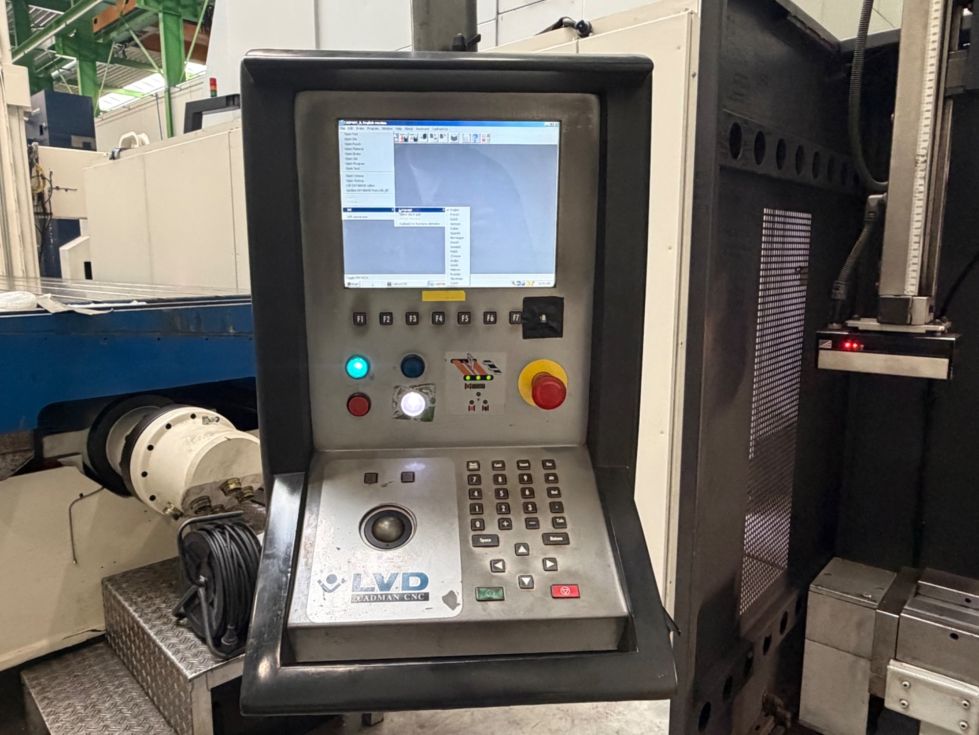

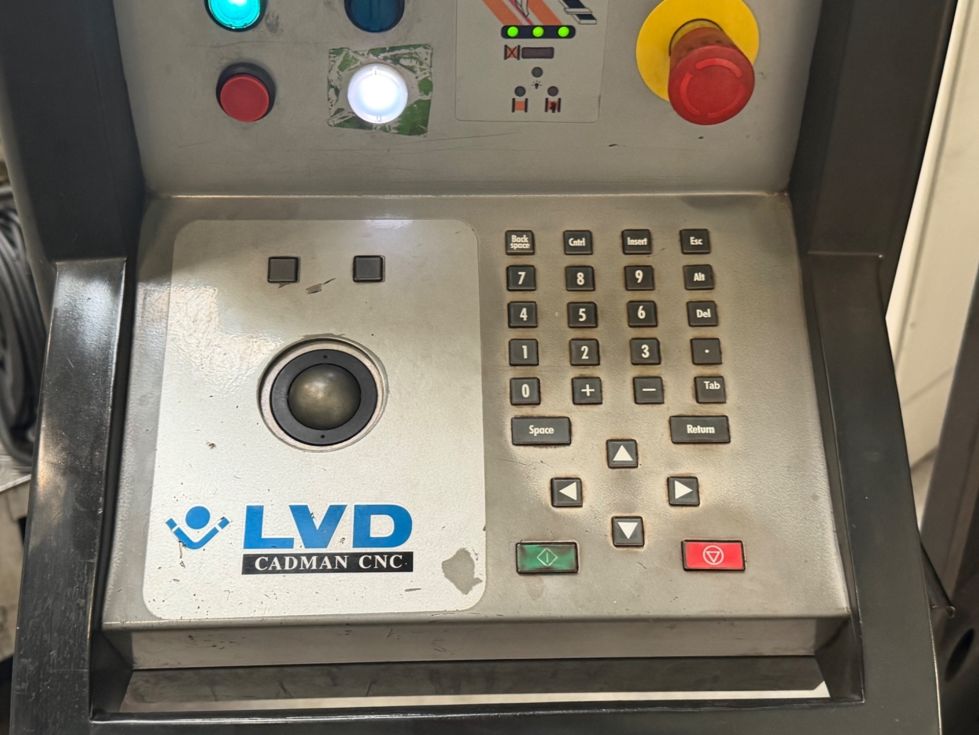

Control:                    CADMAN
Power:                      42kW
Length:                     5800mm
Width:                      2300mm
Height:                     3800mm
Weight:                     23000kg
