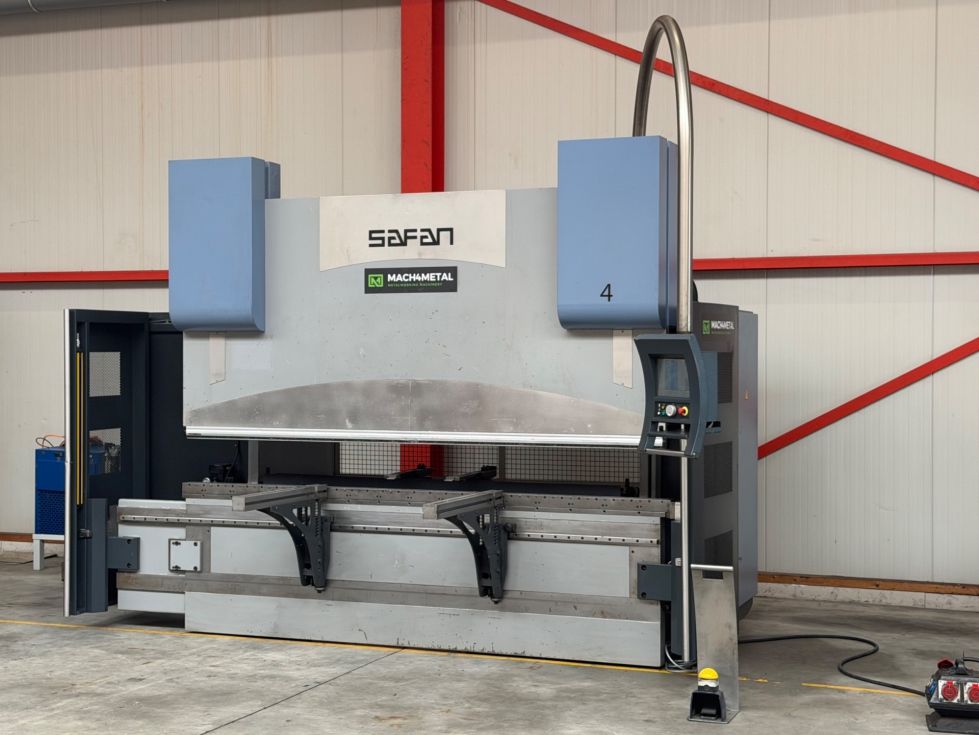

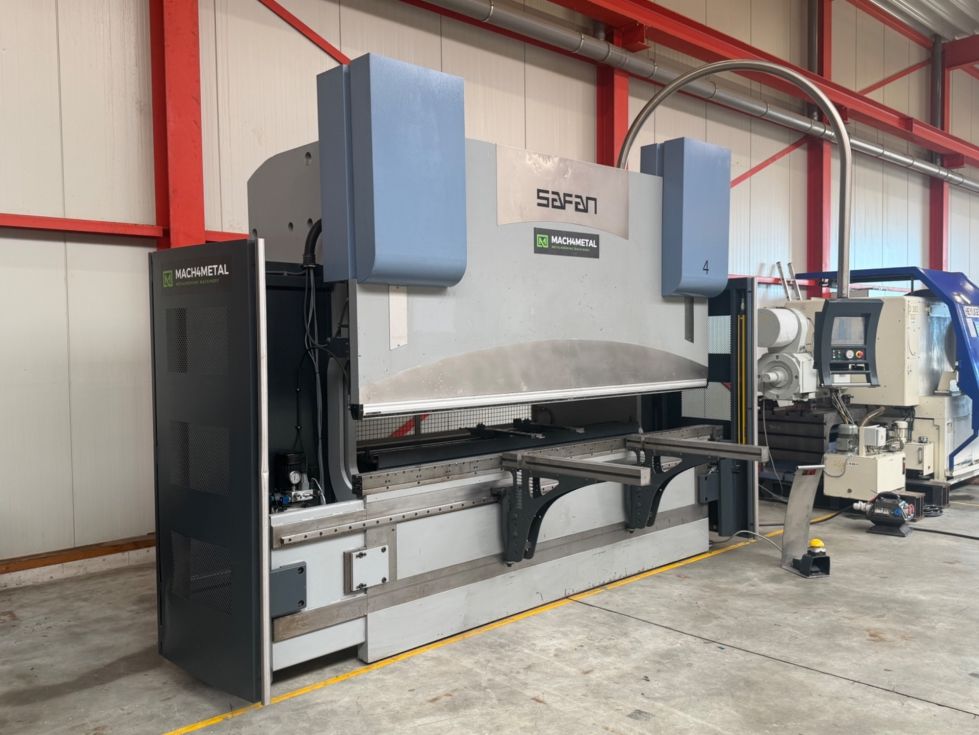

Press brakeSAFAN - H-Brake 120TS1

MACH-ID 9820Make:SAFANType:H-Brake 120TS1Control:TS1YOP:2005

The SAFAN H-Brake 120-3100 TS1 is a robust hydraulic press brake designed for consistent accuracy, high uptime and fast changeovers. With 120 tons of pressing force and 3100 mm bending length, this model delivers reliable performance for demanding production environments. As a used SAFAN H-Brake 120-3100 TS1 from 2005, this second hand machine combines proven SAFAN build quality with smart options that keep your shop productive.
What this means for you

Max. bending length:        3100mm
Distance between column:    2550mm
Max. pressing force:        120T
Dis. Beam - Table:          470mm
Beam stroke:                180mm
Troth beam:                 400mm
Approch speed:              200mm/min.
Working speed:              10mm/min.
Return speed:               120mm/min.

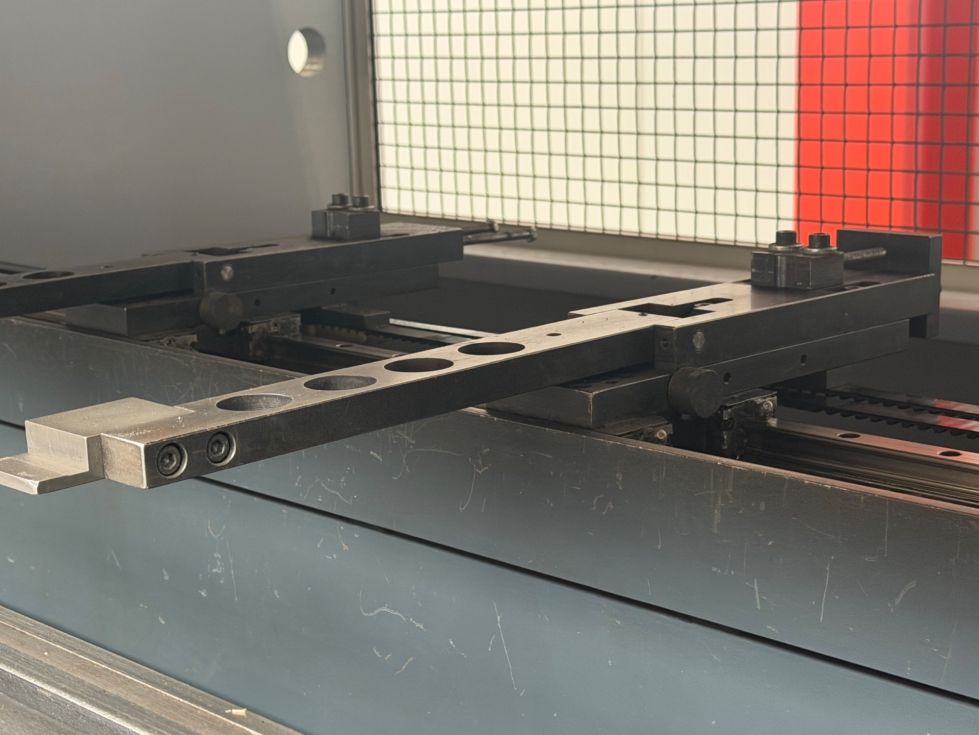

Adjustment X-Axis back gauge:1000mm
Number of controlled axis:  Y1 / Y2 / X/ Z1 / Z2 / R-Central

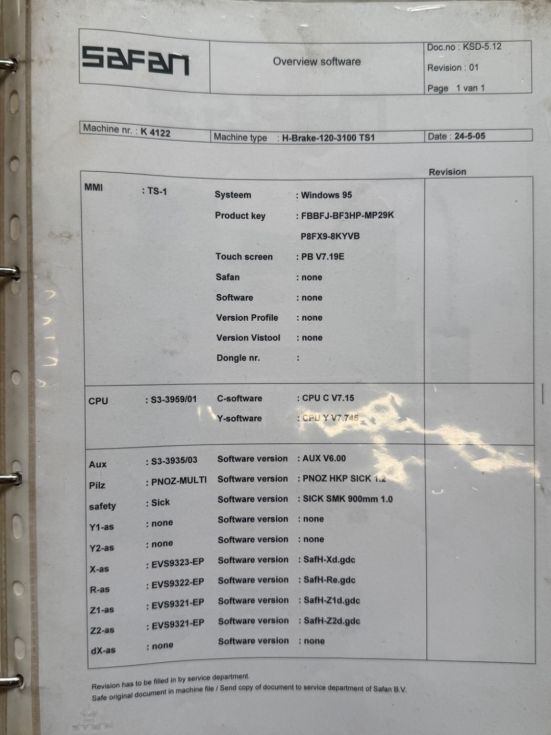

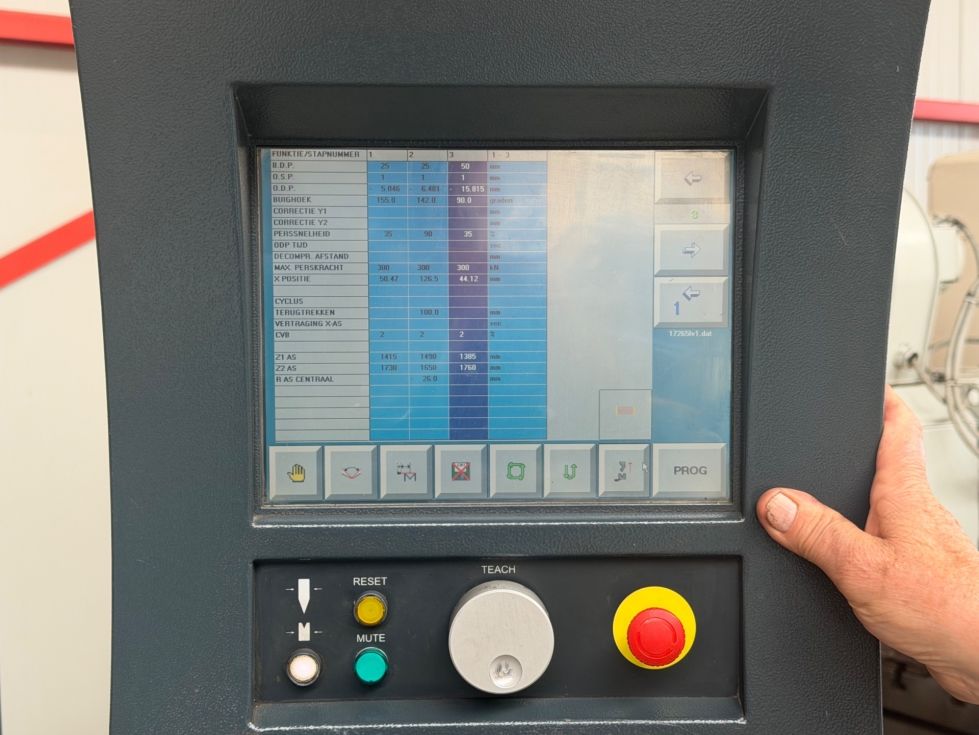

Control:                    TS1
Crowning:                   Yes

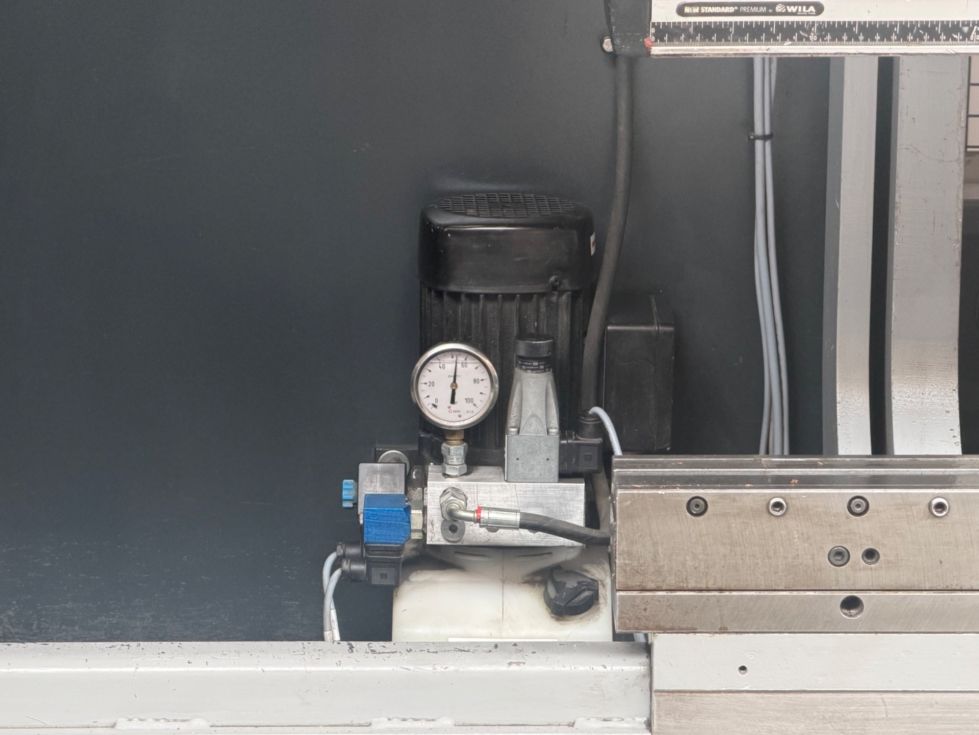

Hydraulic toolclamping:     Yes
Power:                      7.5kW
Length:                     5700mm
Width:                      1800mm
Height:                     3100mm
Weight:                     9650kg
