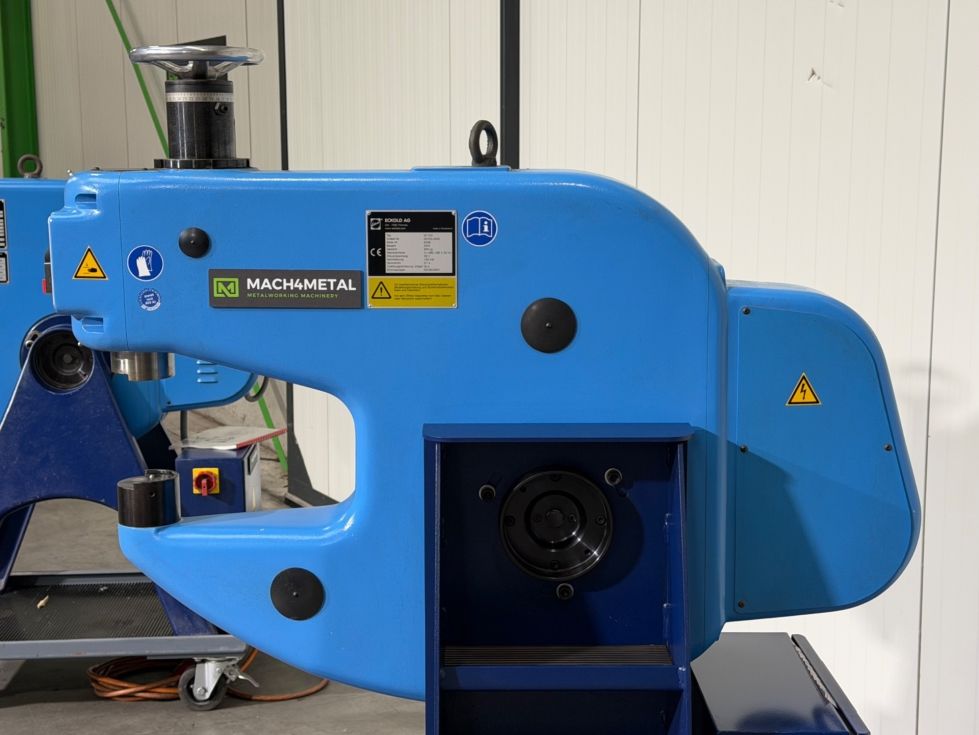

Eckold Kraftformers PiccoloECKOLD - KF 324

MACH-ID 9813Make:ECKOLDType:KF 324YOP:2001

Eckold Kraftformer; motorised machine for Shrinking, Stretching, Doming, Planishing, Reforming, Flattening, Straightening
For Aircraft production and Maintenance.
For Car body shop specialists
For Artisans and Craftmen

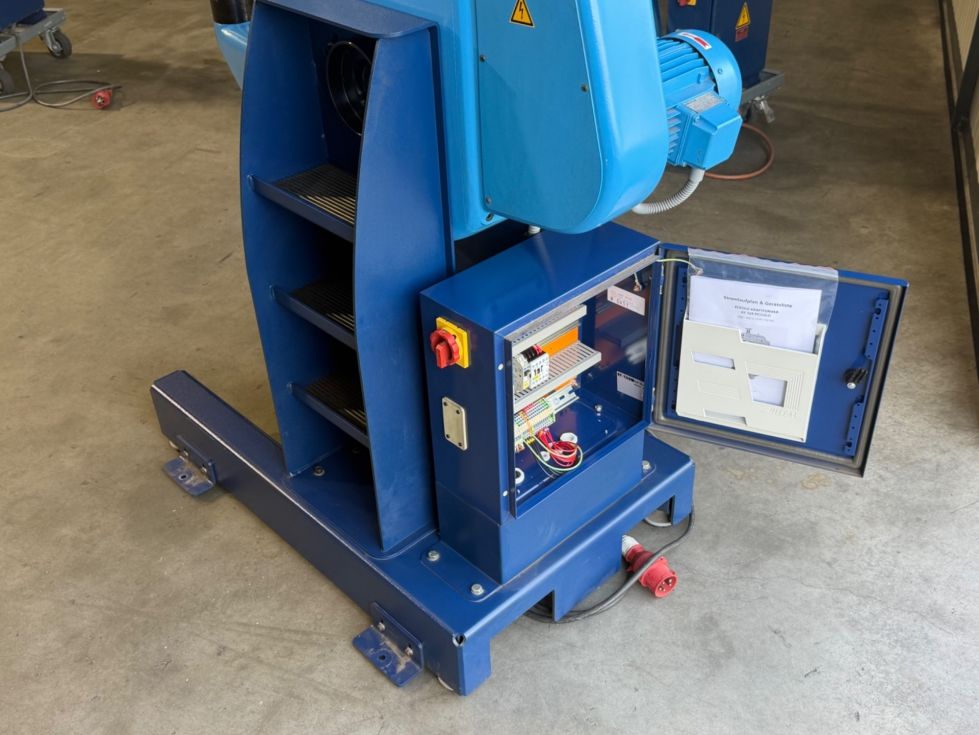

Equipped with tool storage shelf in side column
Machine equipped for tooling:
FWR 402S
FWA 403S


Number of strokes:          400Min.
Maximum sheet thickness:    2,0mm
Horizontal troath:          340mm
Vertical troath:            245mm
Max. thickness Stainles:    1,5mm
Max. thickness Aluminium:   2,5mm

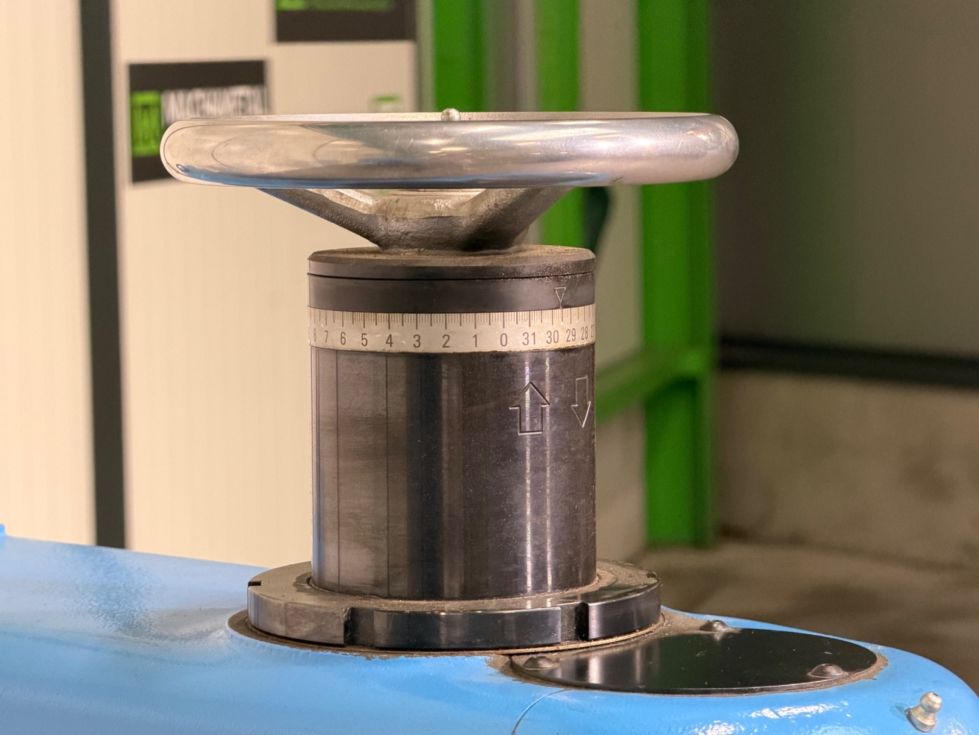

Manuel / Hand ram adjustment:32 mm
Power:                      1,5kW
Length:                     1215mm
Width:                      680mm
Height:                     1740mm
Weight:                     505kg
