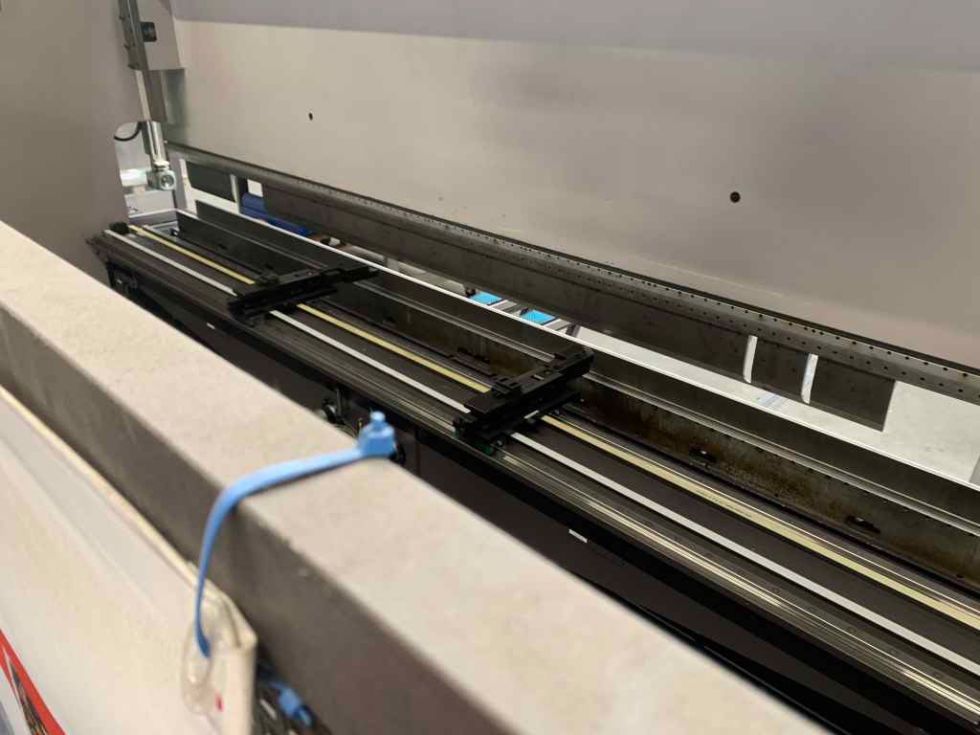

HA4 backgauge X, R, Z1 and Z2

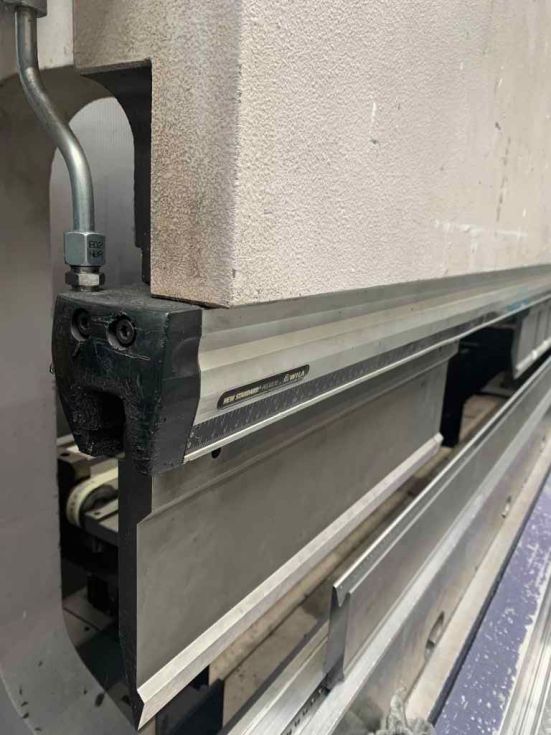

WILA NewStandard Top Tool clamping
Power on Hours 26.000 H

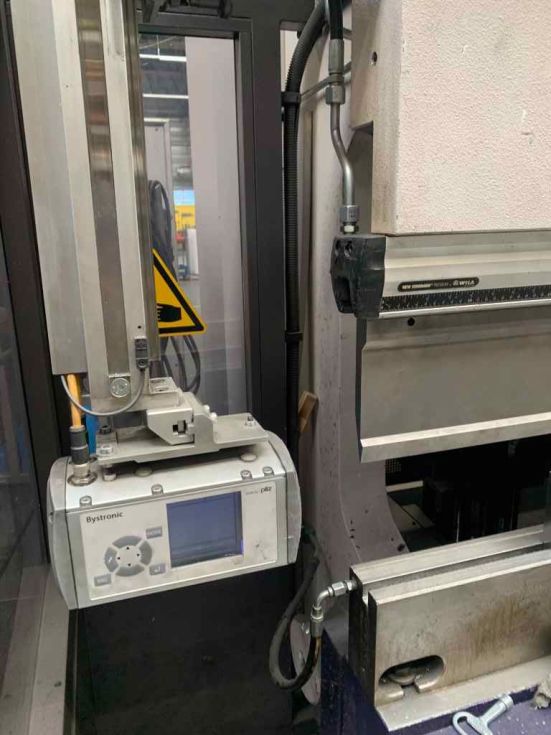

PILZ Laser safe
2 x Arm on front 1000 mm

Max. bending length:        5100mm
Distance between column:    4600mm
Max. pressing force:        400T
Dis. Beam - Table:          650mm
Beam stroke:                365mm
Table Width:                280mm
Troth beam:                 410mm
Approch speed:              120mm/min.
Working speed:              9mm/min.
Return speed:               90mm/min.
Adjustment X-Axis back gauge:1000mm
Number of controlled axis:  Y1, Y2, X, R, Z1, Z2

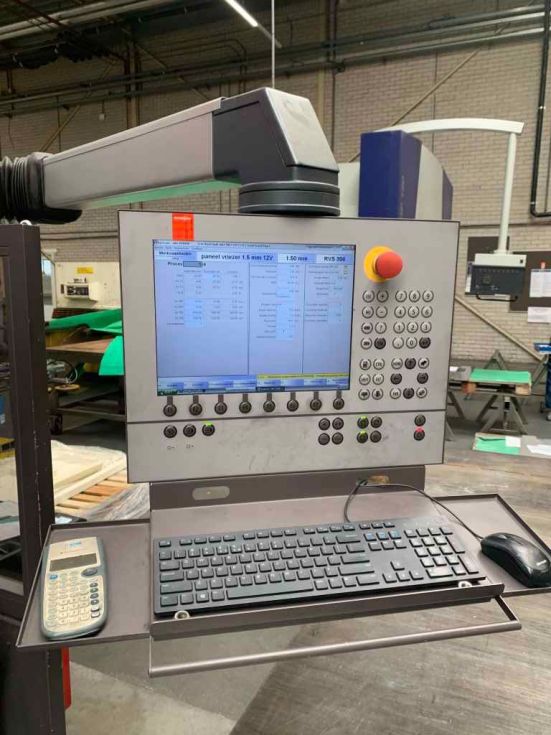

Control:                    MMC BYBEND 7.7.0.0
Crowning:                   Yes
Hydraulic toolclamping:     Wila New Standard
Power:                      34kW
Length:                     6130mm
Width:                      2295mm
Height:                     3680mm
Weight:                     36700kg
