| Clasificación | Curvadoras de tubos |
|---|---|
| Nombre | Tube Bender |
| Referencia cliente | 56701 |
| Marca | WAFIOS |
| Modelo | BMZ 42 |
| Año fabricación | |

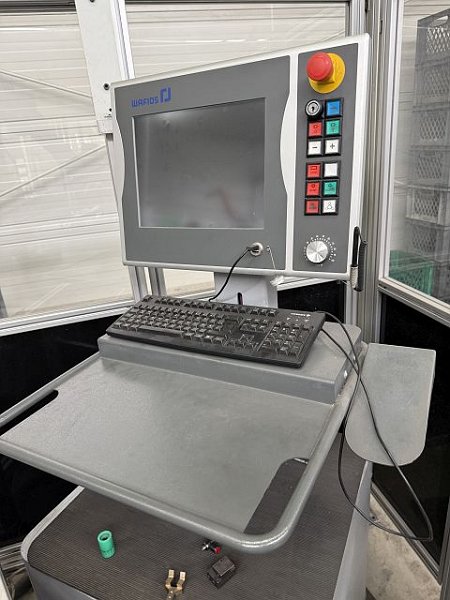

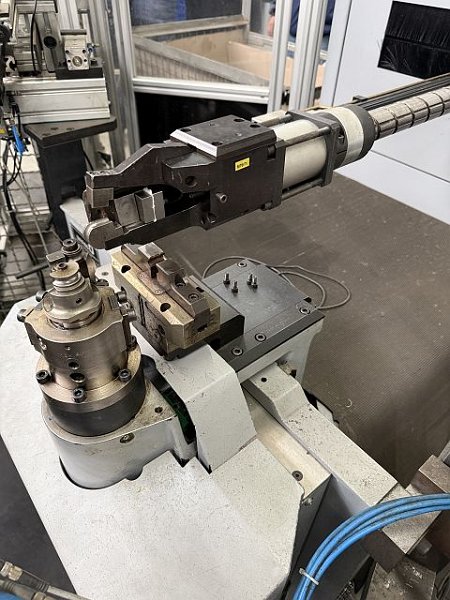

| Detalles | CONTROLS Control CNC WAFIOS TECHNICAL SPECIFICATION Max. diameter of tube: 12.7 mm Max. wall thickness: 1 mm DATOS DE CONEXIÓN ELÉCTRICOS Tensión de conexión: 400 V Frecuencia de la red: 50 Hz DIMENSIONES / PESO espacio requerido -izquierdo/derecha-: 2810 mm espacio requerido -delante/atrás-: 1350 mm Altura total: 1380 mm Peso total aprox.: 2600 kg Technical Specifications: - 3-axis bending head - 3-axis gripper - Tube diameter, max. 12.7 x 1 mm - Wire diameter, max. 8 mm - Single stroke: 750 mm - Bar length: up to 2500 mm - Pneumatic gripping pliers Programming: Graphical interface |
| Estado | Segunda mano |
| Última modificación de la información | 10/06/2026 21:00:02 |
