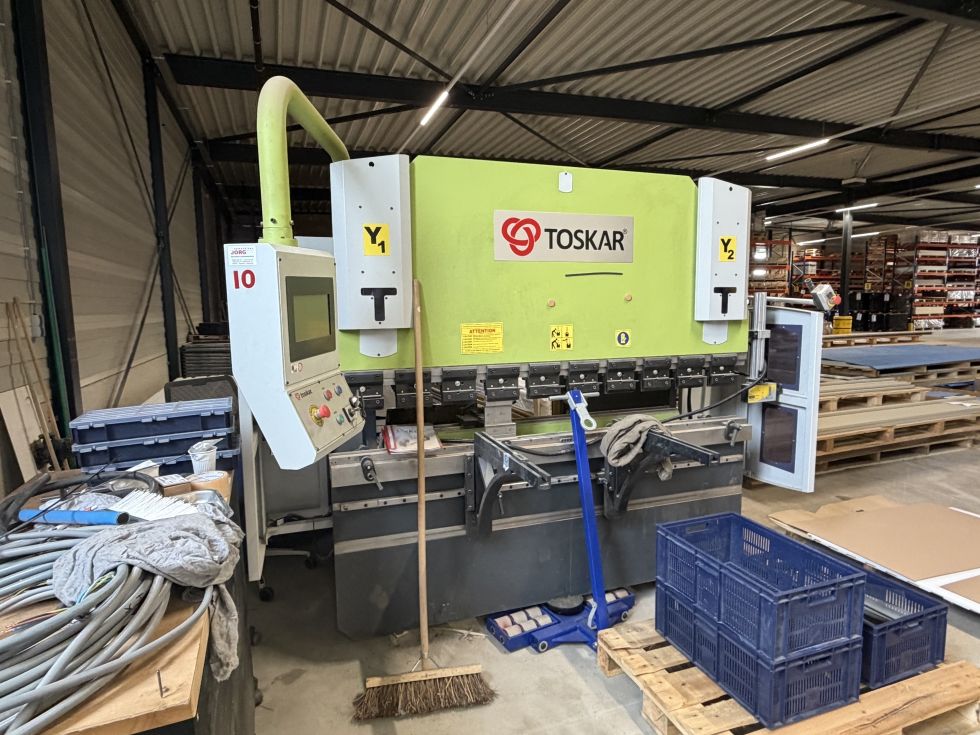

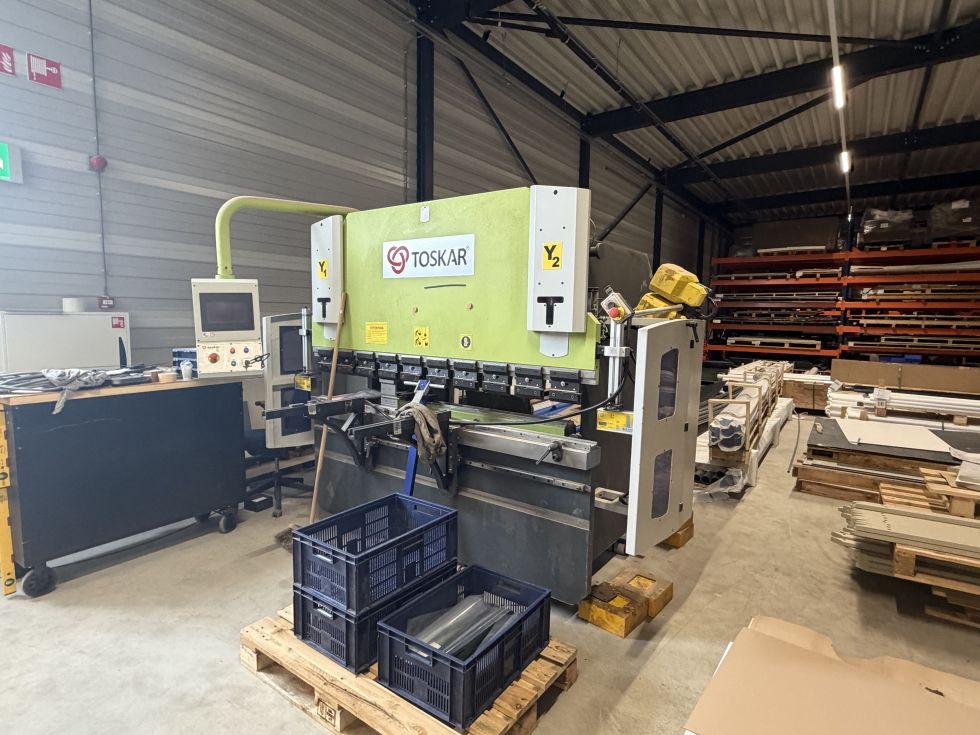

Press brakeTOSKAR - TA 2100-40

MACH-ID 9474

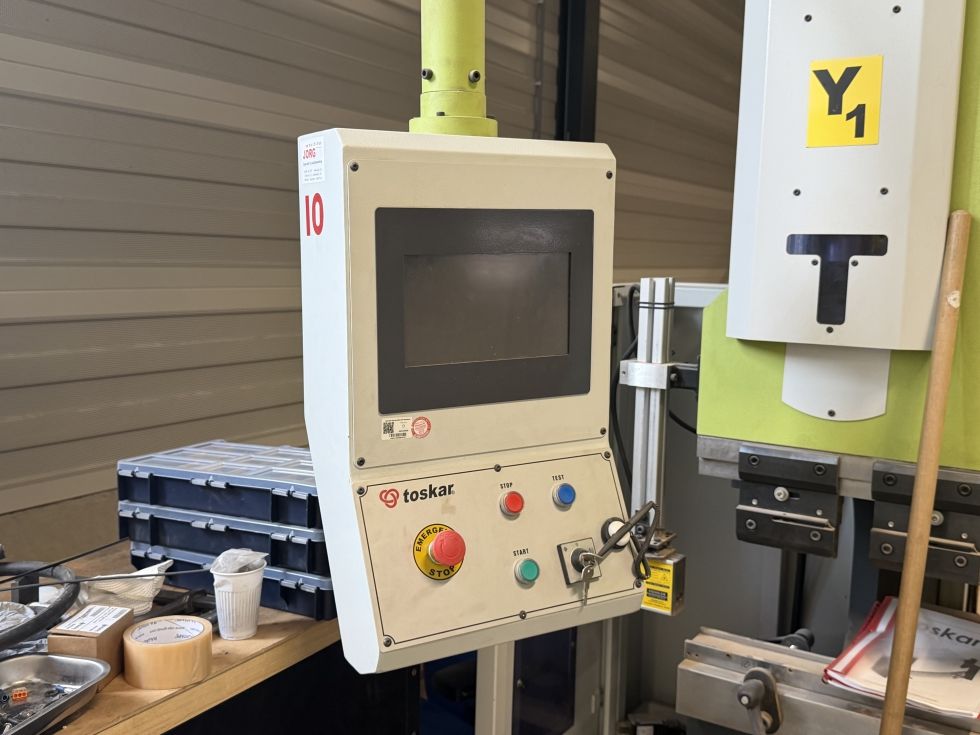

Cybelec 2D Controll system
4 Axis controlled Y1 / y2 / X / Delta-R

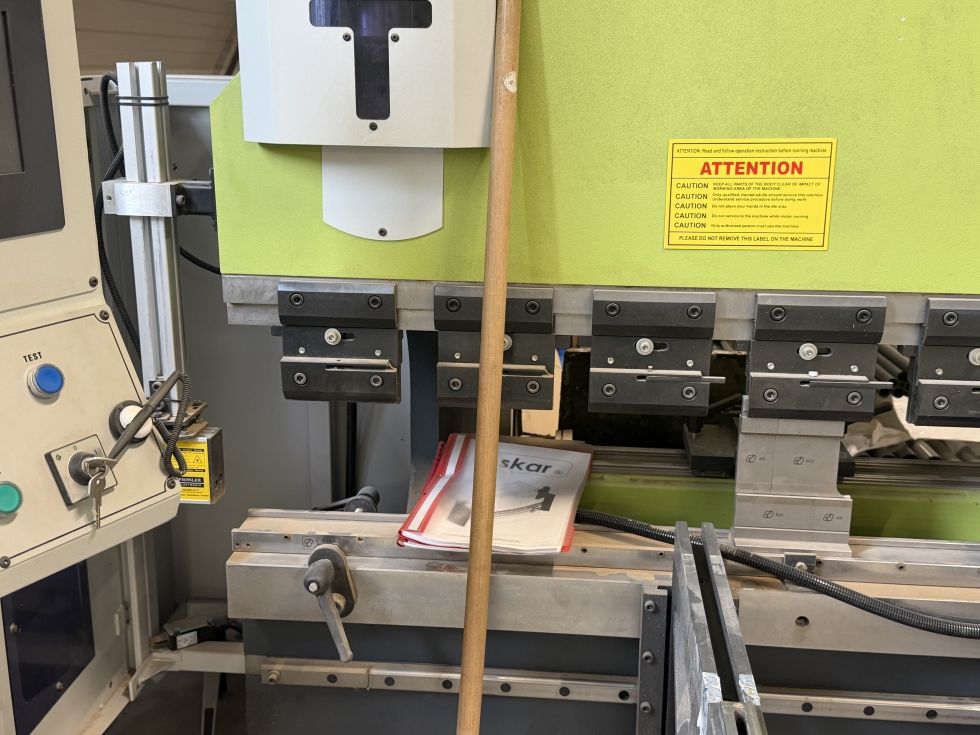

1 set universal tooling

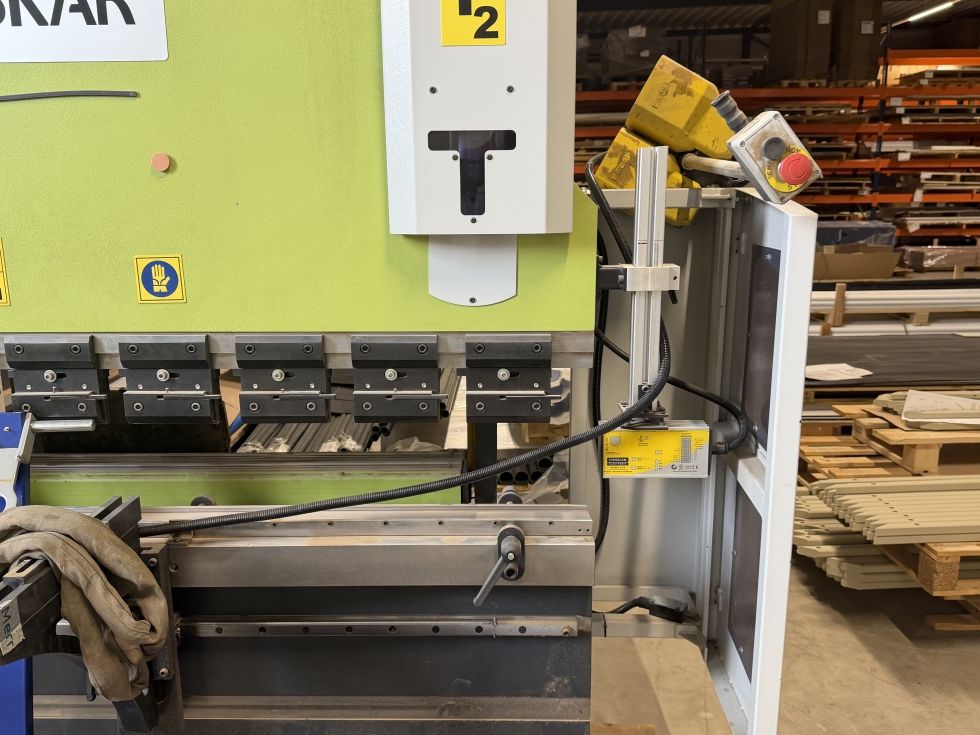

Fiessler laser safe
Sheet support arms front side

Max. bending length:        2100mm
Distance between column:    1650mm
Max. pressing force:        40T
Beam stroke:                130mm
Table Width:                100mm
Troth beam:                 300mm
Approch speed:              100mm/min.
Working speed:              8mm/min.
Return speed:               100mm/min.

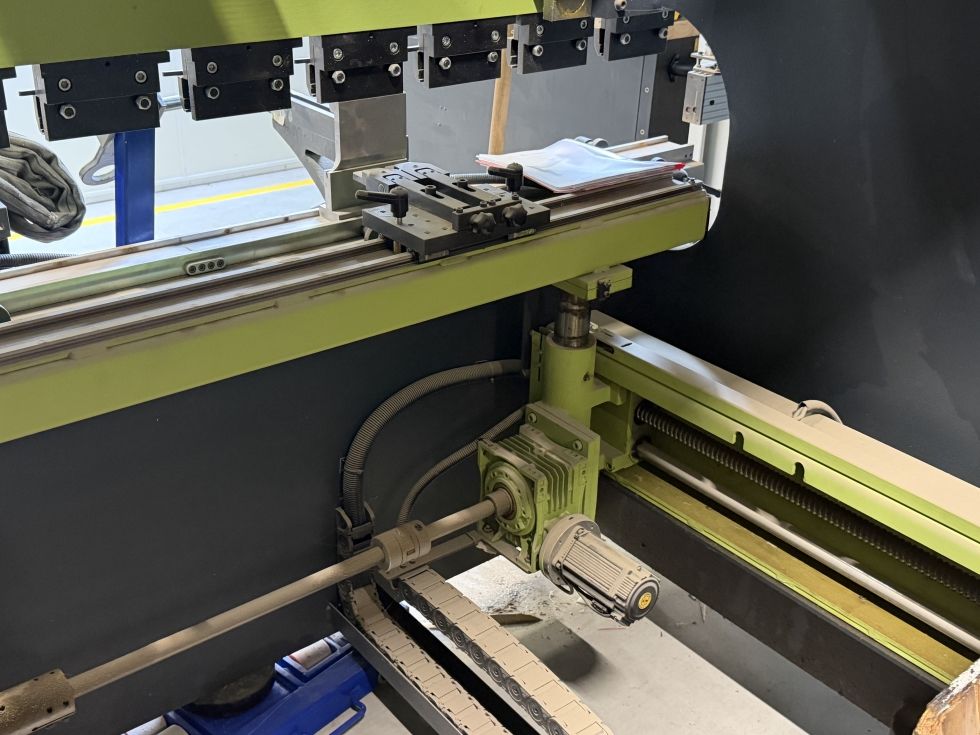

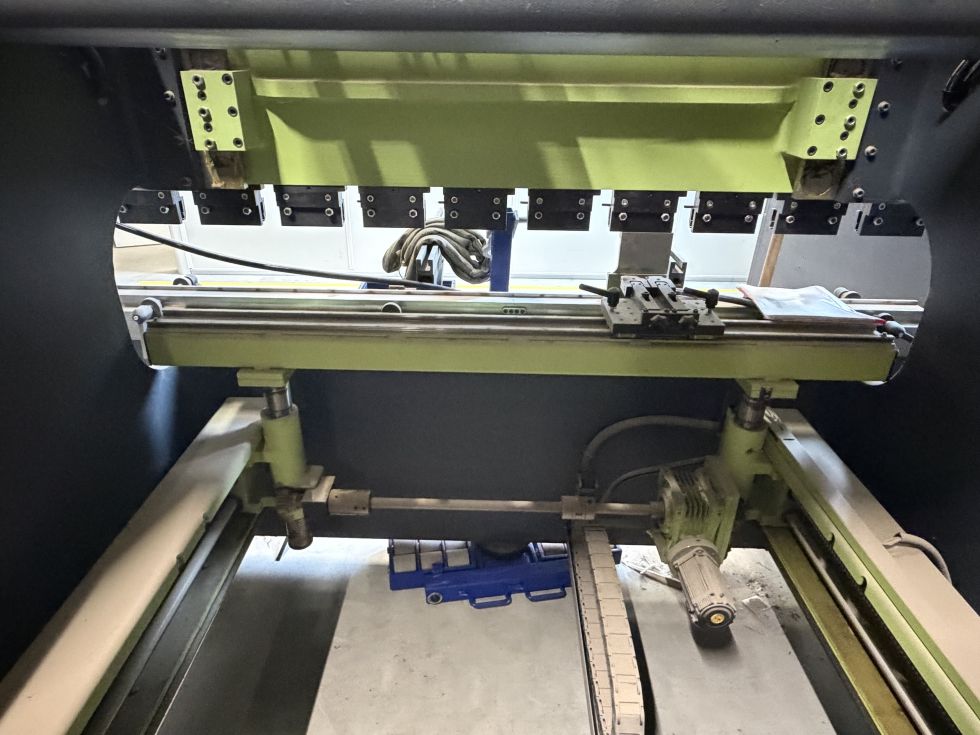

Adjustment X-Axis back gauge:1009mm
Number of controlled axis:  4
Power:                      5.5kW
Length:                     2470mm
Width:                      2000mm
Height:                     2100mm
Weight:                     3800kg
