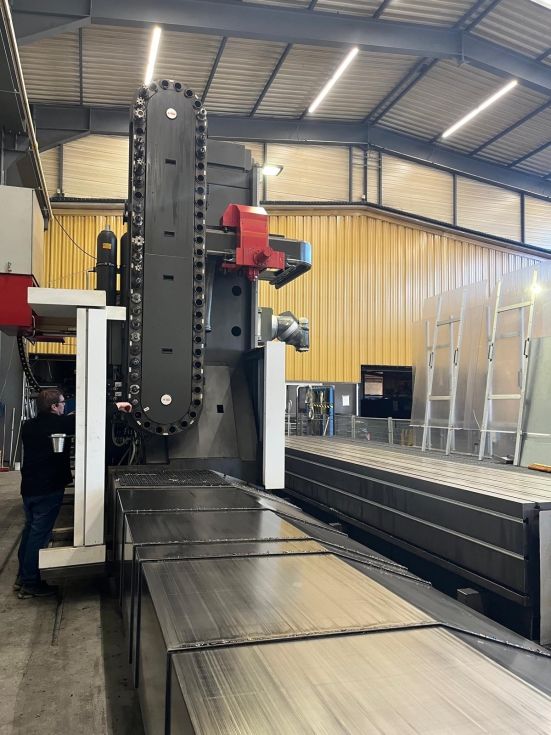

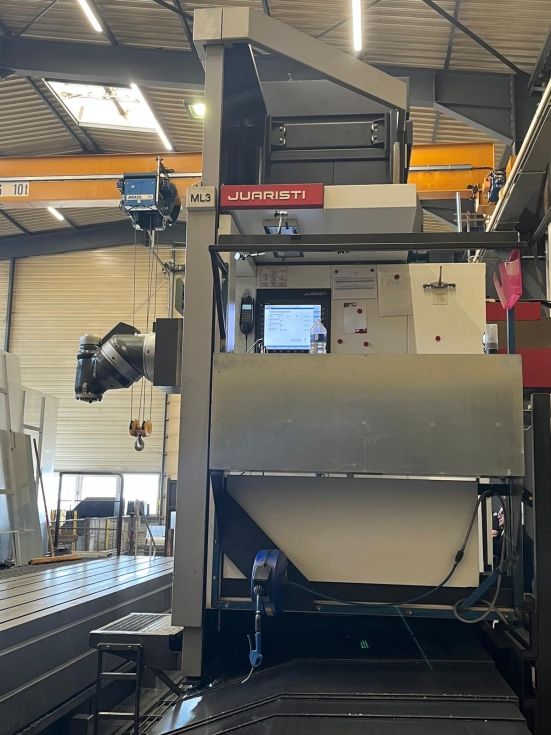

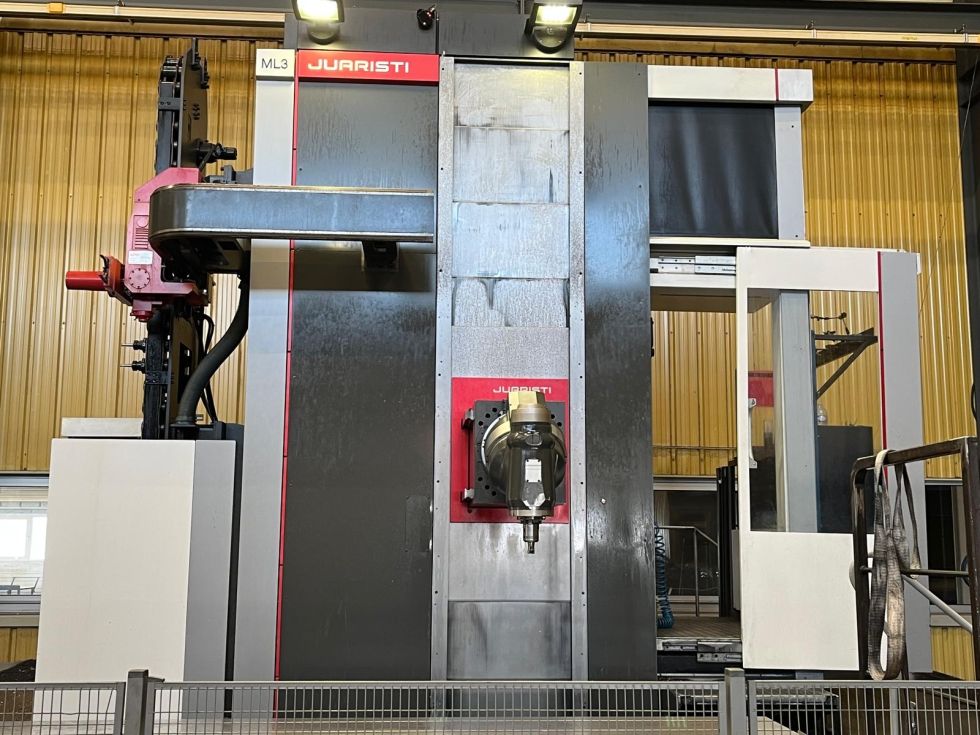

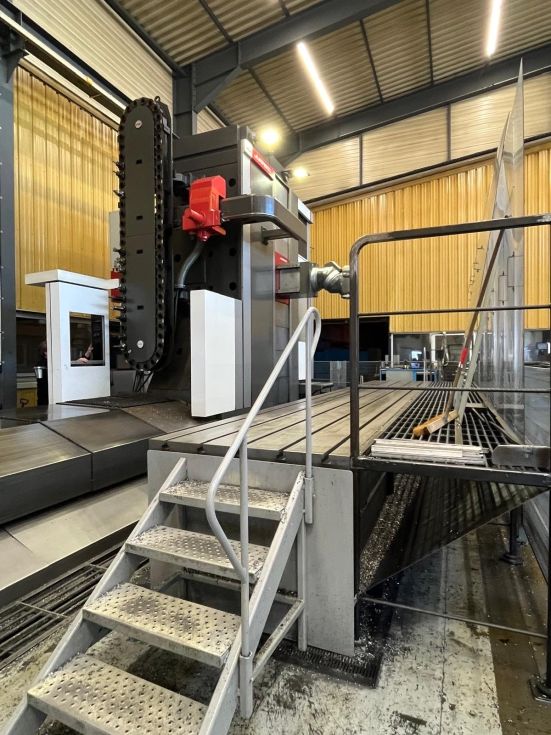

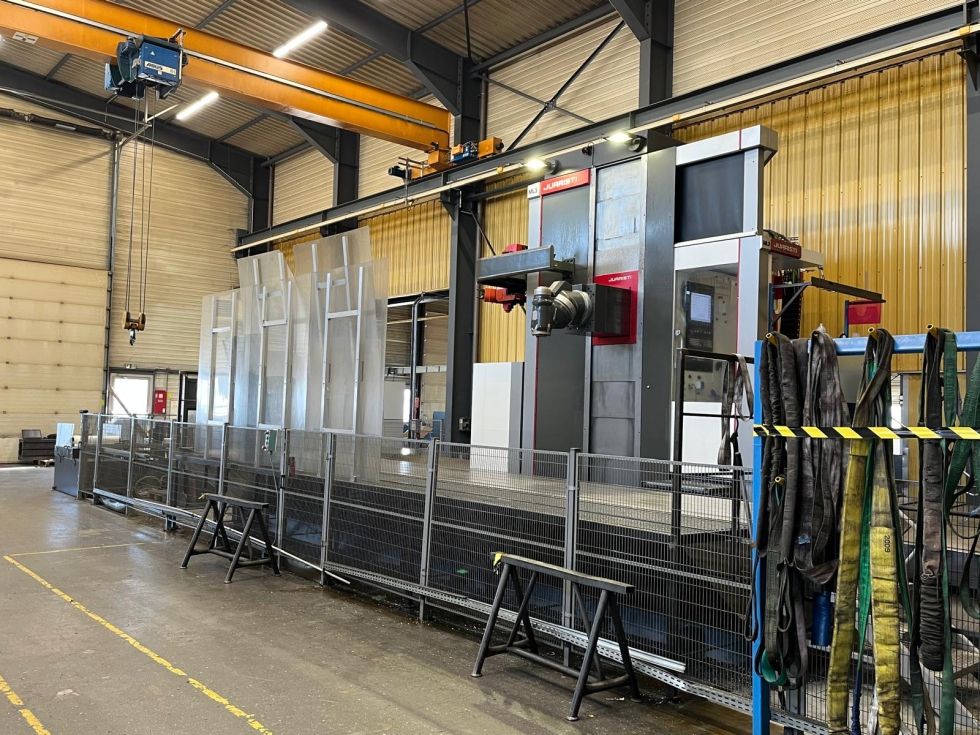

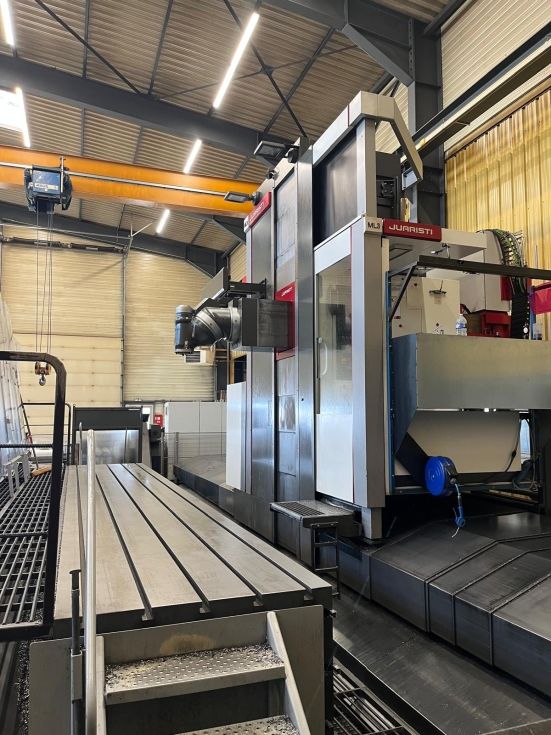

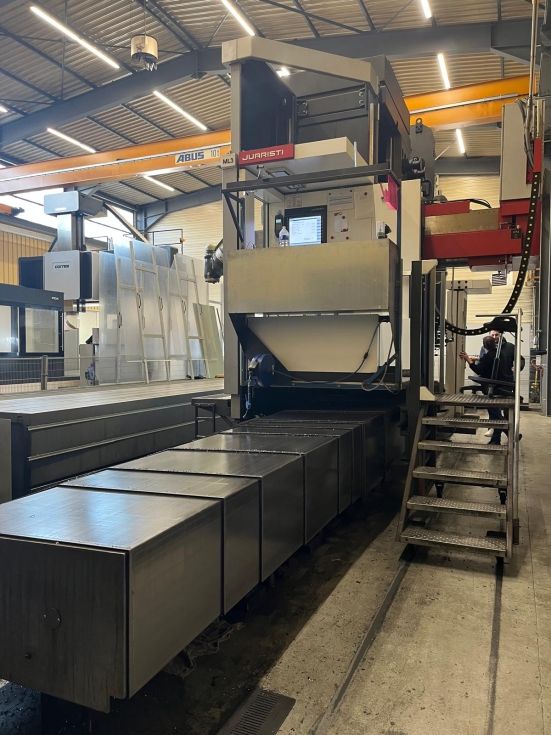

CNC Bed-Type Milling MachineJuaristi - ML-3

MACH-ID 9452 Make:JuaristiType:ML-3Control:Siemens 840D-SLYear:2020

Travelling Column High performance, precision and machining power
Linear guiding of RAM combined with Hydrostatic Guiding HDS
ACD2 Milling head with 5000 Rpm and 1400 Nm torq

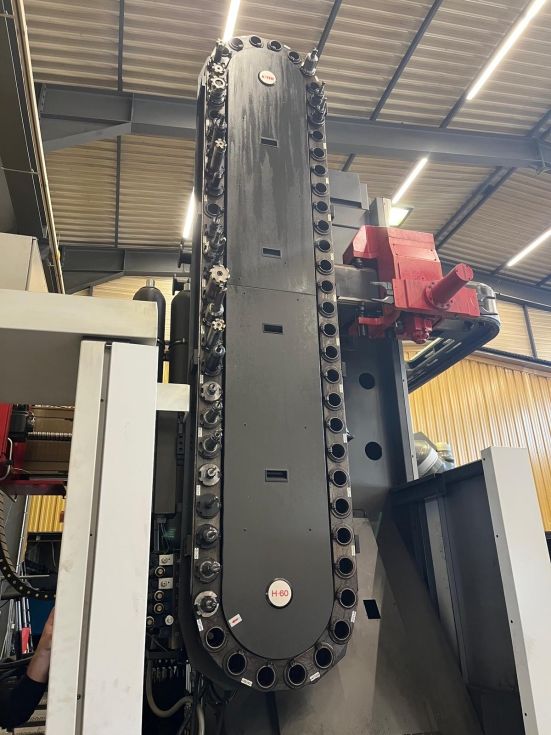

Aitek ATC chain 60 position with L=400 and 250 diameter x 35 Kg
Filtration with IKZ 15 Bar
Chip conveyor
BLUM 3D Measuring probe
Wide bed linear guided in X-Travel W=930 mm
Rotary table driver prepared in E-Cabinet

X-Axis:               8000mm
Y-Axis:               1300mm
Z-Axis:               2500mm
Table Length:         10000mm
Table Width:          1
