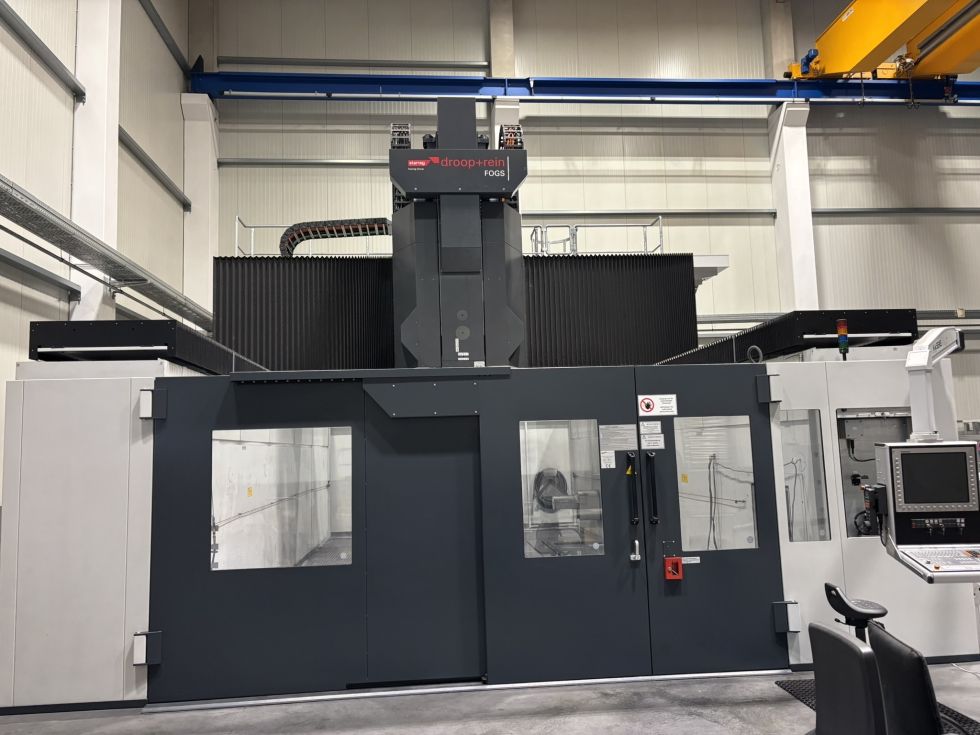

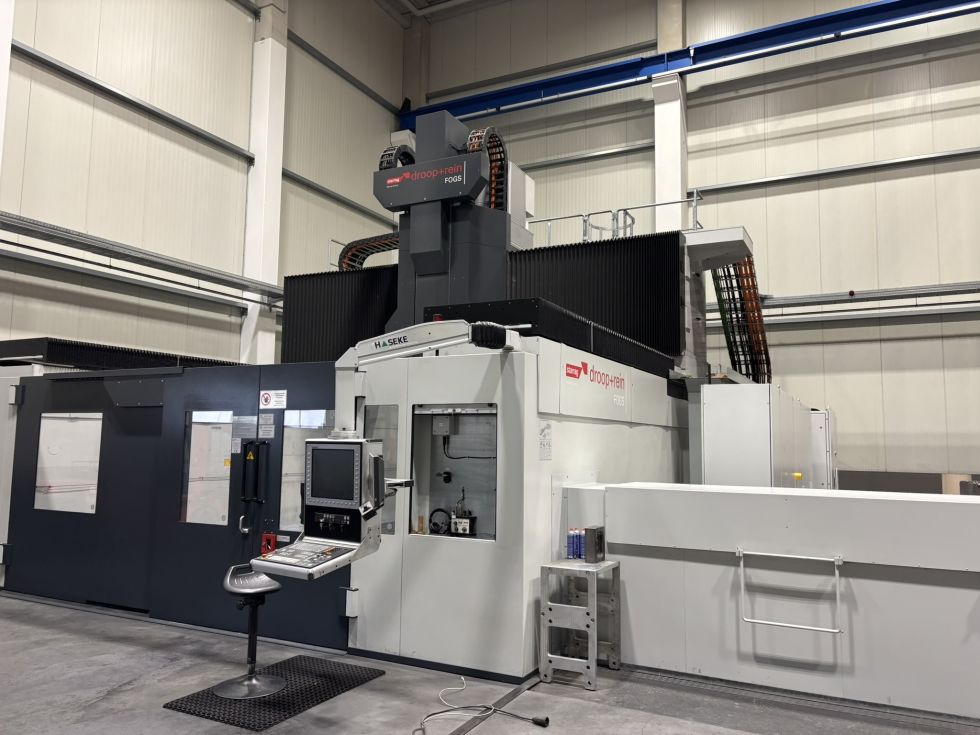

DROOP + REIN FOGS 40 60C High-Speed 5-Axis Machining Center

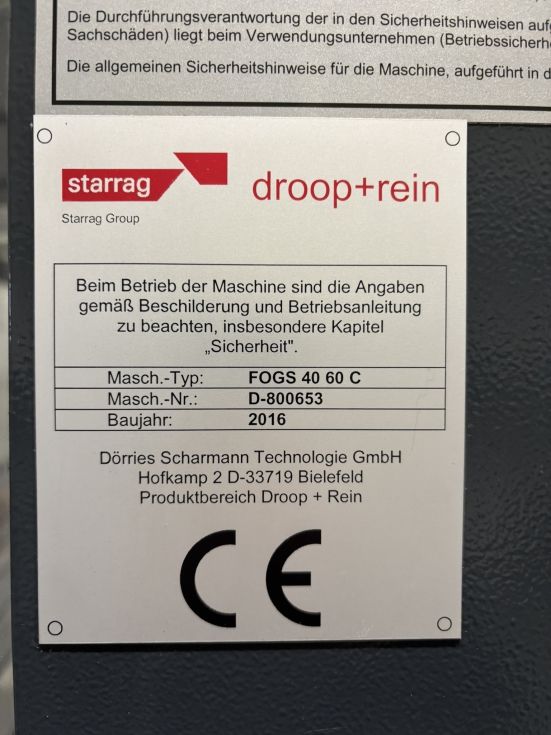

Serial Number, Year of Manufacture, and Control System

• Serial Number: D-800653

• Year of Manufacture: 2016

• Control System: HEIDENHAIN iTNC 530 HSCI

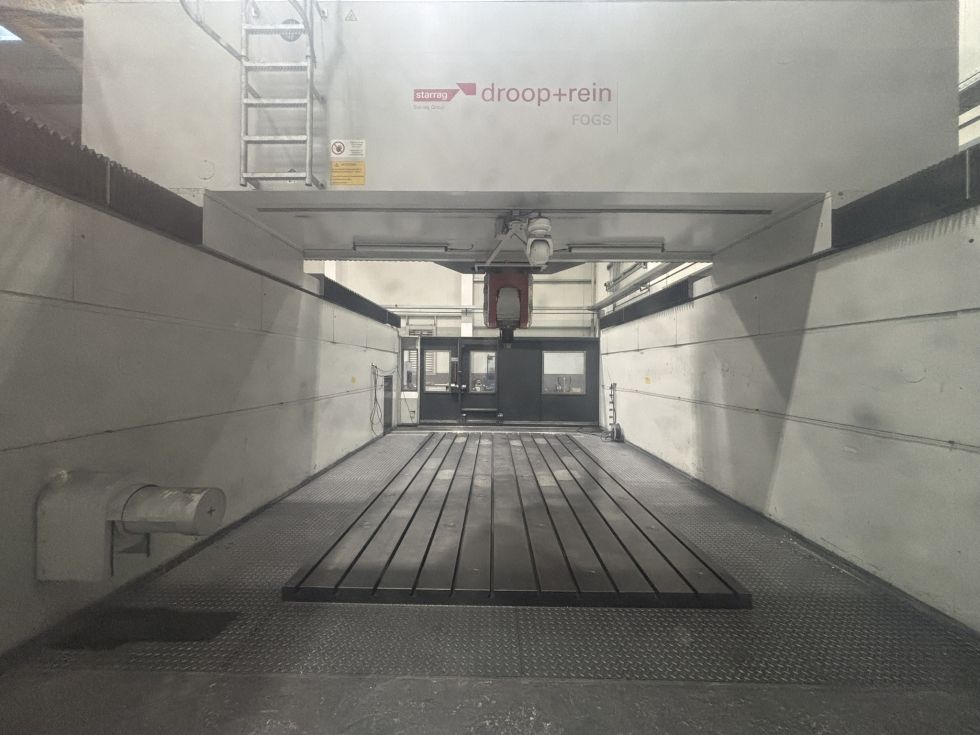

Working Area

• Clearance between the stands: 5,090 mm

• Clamping surface: 6,000 x 3,000 mm

• Max. load capacity: 50,000 kg

Travel Distances and Speeds

• X-axis travel distance: 6,800 mm

• Y-axis travel distance: 4,000 mm

• Z-axis travel distance: 1,500 mm

• B-axis movement: ± 115°

• C-axis movement: ± 200°

• Rapid traverse X, Y, Z-axis: 40,000 mm/min

• Rapid traverse B, C-axis: 4,320 °/min

• Feed rate X, Y, Z-axis: 30,000 mm/min

• Feed rate B, C-axis: 2,160 °/min

Fork Milling Head and Tool Changer

• Two motor spindles speed range: 10,000 rpm and 20,000 rpm

• Tool change capacity: 51 tools

Machine Dimensions Approx.

• Length: 12,500 mm

• Width: 10,500 mm

• Height: 6,300 mm
