X Travel ram in bridge 3000 mm
Motorized ram rotation 360.000 Gr
Day light length 1800 mm
Force pressure 215 kg/cm2
Power 125 kW
Oil tank 1800 Liter

Tooling package:

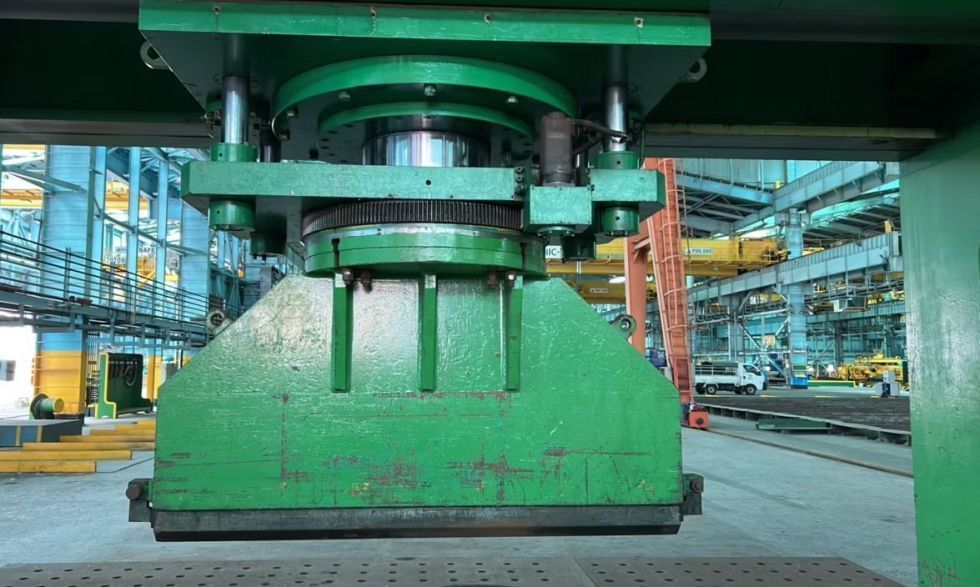

2 x Motorized upper ram L = 3000 mm
5 x Lower Mould with V-Square
Corrugatre shape L = 3500 mm
Die R 190 L  = 3500 mm

Capacity  1500T
Distance between column:6140mm
Table Length:          6100mm
Table Width:           2400mm
Table Height:          510mm
Ram stroke:            800mm
Approche speed:        100mm/min.
Working speed:         6mm/min.
Return speed:          130mm/min.
Length:                3150mm
Width:                 8900mm
Height:                8240mm

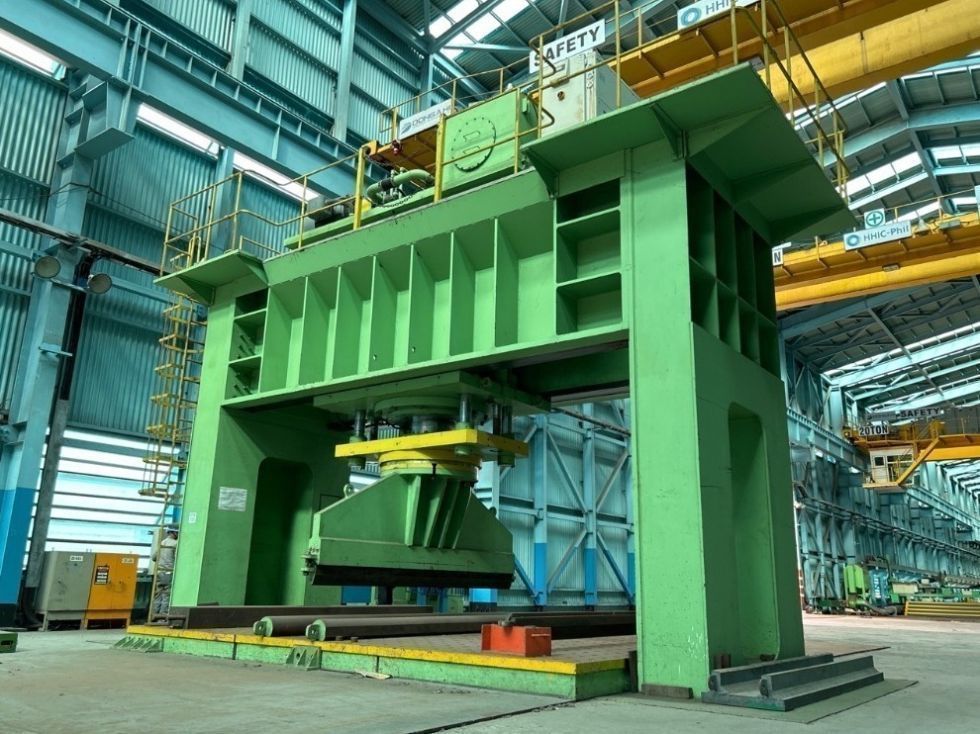

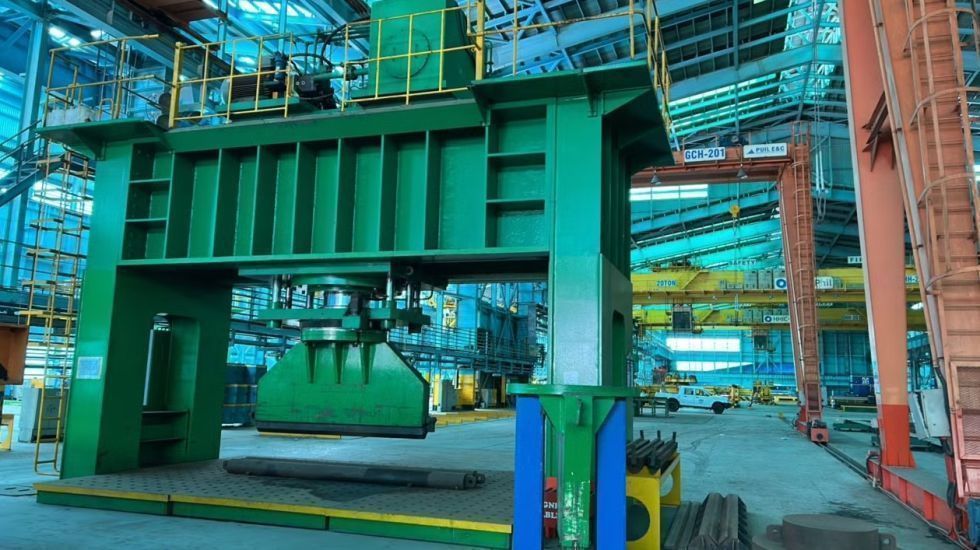

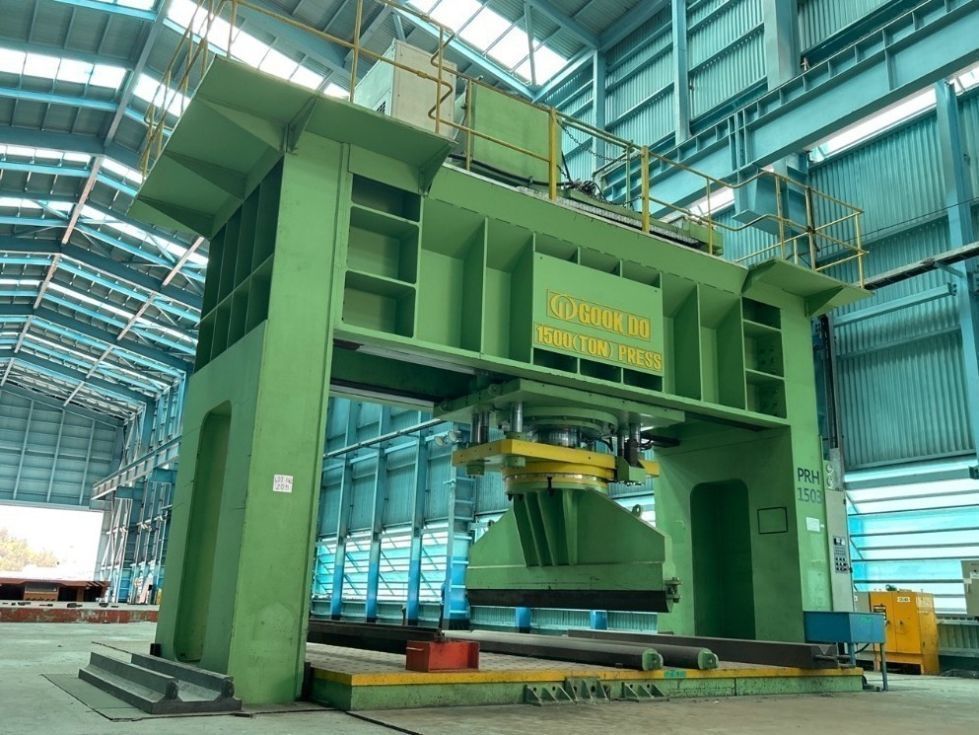

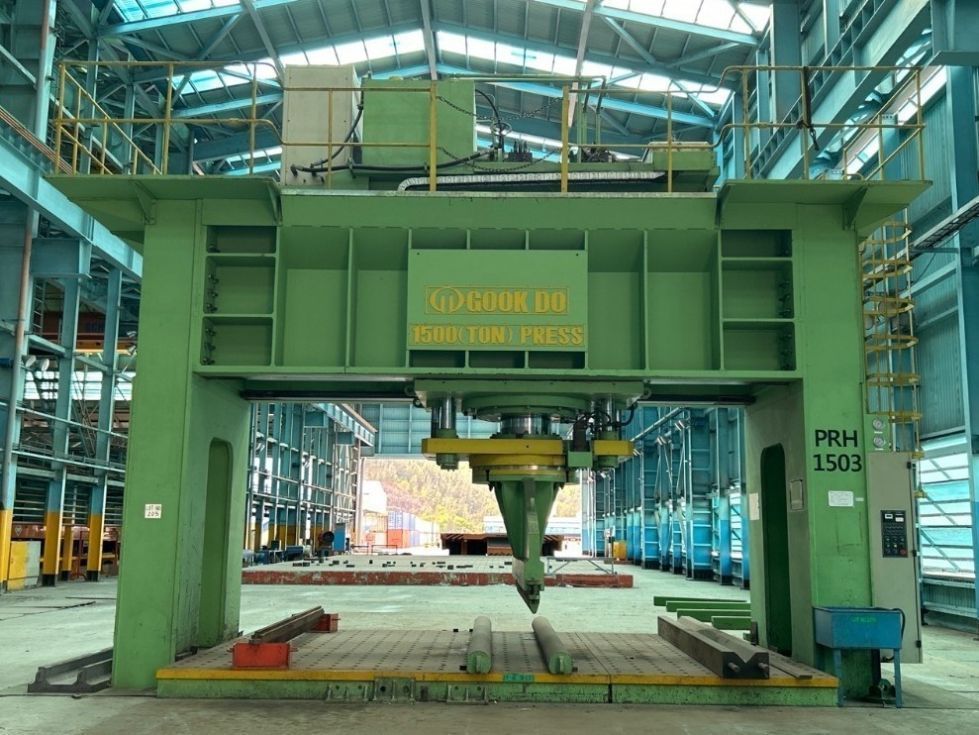

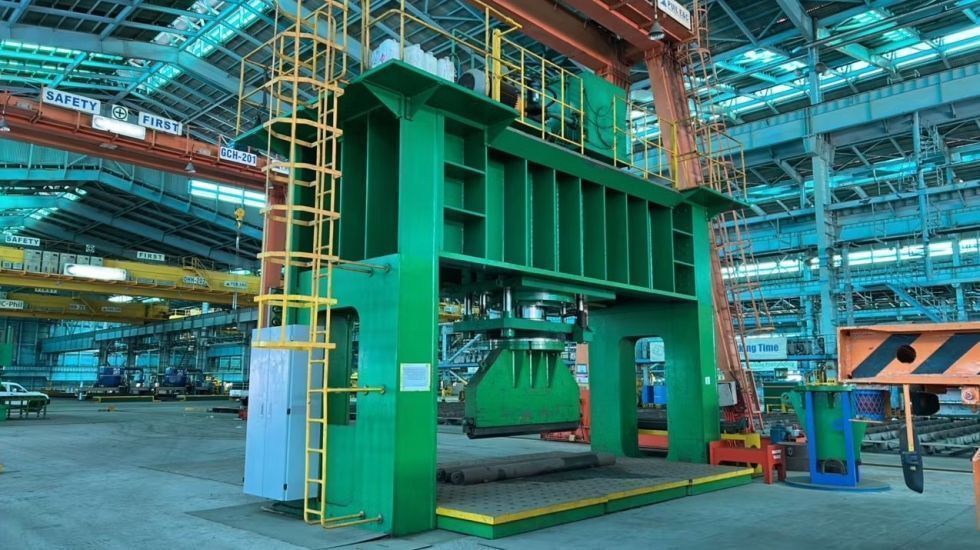

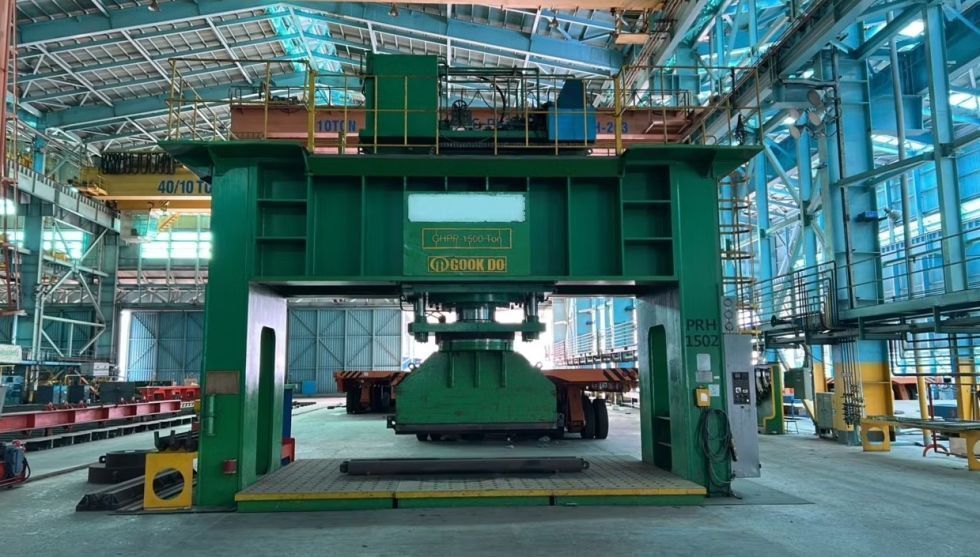

Universal shipyard press for coldforming
For parts like double curved panels and twisted panels for ship
Stamping and Bending jobs with 1 machine
