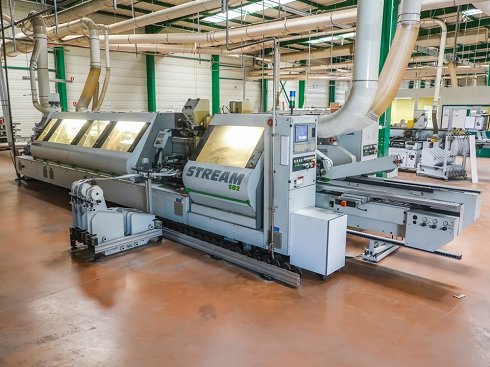

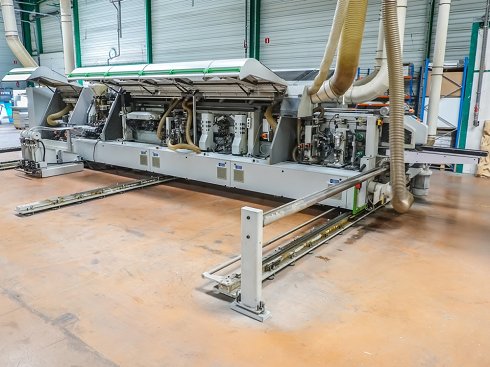

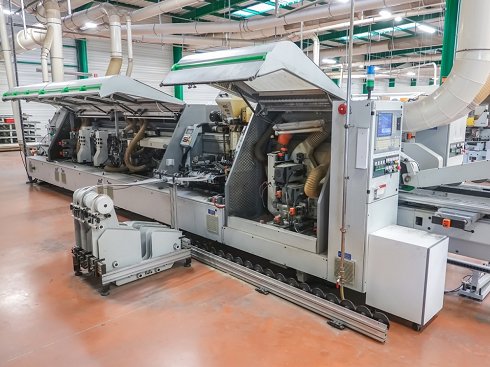

Double moulding-edgebanding machine biesse stream sb2 10.5 - c3086
BIESSE
98.000 EUR
Localización geográfica
Francia / Nevers
| Clasificación | Encoladoras |
|---|---|
| Nombre | Double moulding-edgebanding machine BIESSE STREAM SB2 10.5 - C3086 |
| Referencia cliente | C3086 |
| Marca | BIESSE |
| Modelo | |
| Año fabricación | |

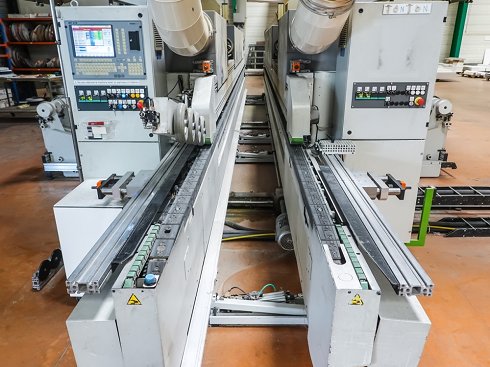

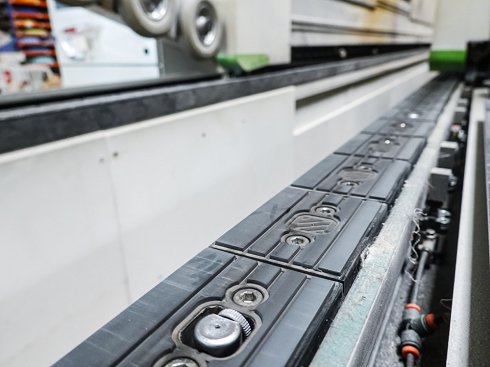

| Detalles | Technical characteristics Panel width : 240 mm to 1200 mmPanel length : 240 mm to 3000 mmPanel thickness : 10 mm to 60 mmBand thickness : 0,3 mm to 3 mmPin inner axis : 500 mm ENTRY / EXIT :Transfer realised with special chains covered in stainless long lasting rubberEntry pivoting guides adjustable depending on panel typeClosing device on above pressor to assure the pressing of the panel against the pinsDelaying device in entry for optimization of different width panel dimensions Single part rigid structural longitudinal chassisADVANCE CHAIN :Continuous speed tuning from 10 to 40 m/min by INVERTER CN direct numerical commandThe stop pins are automatically adjusted in height by CN and can have : height/thickness 12- 18-23 mm from the chain levelChain pin inner axis 500 mmBELT PRESSORSOUNDPROOF CABINSAll machining groups inside the machine are surrounded by soundproof material Internal lightingCN command placed at entry of the machine, fixed chassis sideNUMERICAL CONTROLVideo interfacePositioning axis controlChain advance speed tuningPressor height adjusting depending on panel thickness Automatic adjustment of band changing and band charger Moulding list managementSequenced motor startupPossibility of connection to a barcode readerModule NC410MILLING GROUPTimed pneumatical anti shard action for transversal milling Tool rotation speed : 6000 rpmMotor power : 5.8 kWTool Ø : 200 mmDOUBLE SUPERPOSED SPLINTERSSimultaneous displacement for thickness adjustment and independent adjustment vertical and horizontalCast iron bearing structureTool speed rotation : 6000 rpmMotor power : 5.8 kW Tool Ø : 205 to 250 mmEXTENSION MACHINE to 3200 mmAUTOMATIC CENTRAL SUPPORT 10.5This device allows support of parts that due to their dimensions or thickness can subdue central bendingFully automatic activationGLUING GROUP SP3Straight bands in resin, melamine, ABS, PVC, PP EVA basis thermoplastic glueIndependent Teflon covered changeable glue tank Glue level sensor inside the tankGlue input roller speed synchronized with the chain advance Breveted pre fusion deviceGlue granule container (8kg)Band presence detection deviceAutomatic band changing procedure6 POSITION MOBILE BAND CHARGERSEND CUTTINGEnd cutting unit for edge thicknesses up to 3 mmDevice for quick removal in strokeAutomatic exclusion of the unit when the motors are stoppedSpeed : 12000 rpmPanel projection : 35 mmEdge thickness : 0.3 to 3 mmPanel thickness : 10 to 60 mmInterval between 2 consecutive panels : 350 mmWHOLESALE TRIMMING UNIT2 superimposed motors with horizontal axisAutomatic pneumatic exclusion of the groupSpeed : 12000 rpmMotor power : 1.3 + 1.3 kwPanel thickness : 10 to 60 mmTool diameter : 80 mmANGLE TRIMMING GROUPThe adjustment of the position of the tool in relation to the material is automatic with predefined dimensions on 4 pre-adjustable in-line stopsThe in-line stops are automatically selected by the controlUse on the MULTIPROFIL tool group to change profile/shape without replacing the toolTools are equipped with 20° chamfer and 1.5-2-3 mm radiusSpeed : 12000 rpmMotor power : 0.65 + 0.65 kwPanel thickness : 10 to 60 mmTOP / BOTTOM ROUNDING GROUPRounding copier for the upper and lower stops of the panel with oscillating movement for the continuation of the panelQuick release system of the motor-holder groupsAutomatic exclusion of the tool with stopped motorsTool rotation speed : 12000 rpmMotor power : 0.3 kwEdge thickness : 0.3 to 3 mmRadius with concave profile : 40 mmMinimum distance between the tail of one panel and the head of the next (at 20m/min) : 500 mmUNIVERSAL MILLING MACHINEFor the execution of profiles, grooves and rebates on the edge and on the plane of the panels with pneumatic interventionMotor tiltable from 0 to 90° manuallyAutomatic exclusion group from the control panelSpeed : 12000 rpmMotor power : 5 kwTool diameter : 125 mmDOUBLE UNIVERSAL MILLING MACHINEFor the execution of grooves and rebates on the edge and on the plane of the panels with pneumatic interventionThe upper motor is manually adjustable from 0 to 90°.The lower motor is fixed horizontalAutomatic exclusion of the groups from the control panel Speed : 12000 rpmMotor power : 5+5 kwTool diameter : 125 mmEDGE SCRAPING UNITFor the finishing of ABS/PVC/PP edges of high thickness with radial tools and horizontal and vertical copiersEquipped with nebulizer for tool cleaningAutomatic exclusion from the control panelTool radius: 1 to 5 mmEDGE HEATERAllows to heat the edge of the panel during the passage of the latter to reactivate the original color when using PVC materialsGLUE SCRAPING UNITEDGE-CONTROL DEVICEElectronic-mechanical device for the control of the edge length by means of shears at 40m/minMinimum length of the edge to be applied: 350 mmBAR FOR NARROW PIECES SBMinimum width of panels: 35 mmKIT FOR NARROW PIECES WITH THIN EDGESIt allows to work pieces with minimum width 70 mm, only in case of thin edge applicationMinimum panel length 400 mmPREDISPOSITION FOR INSTALLATION KIT PU GLUING Power and Motors Pluging: Three-phasedPower: 95 Kw Overall dimensions Weight: 19000 Kg |
| Estado | Segunda mano |
| Última modificación de la información | 23/03/2025 7:52:01 |
