| Clasificación | Ensambladoras |
|---|---|

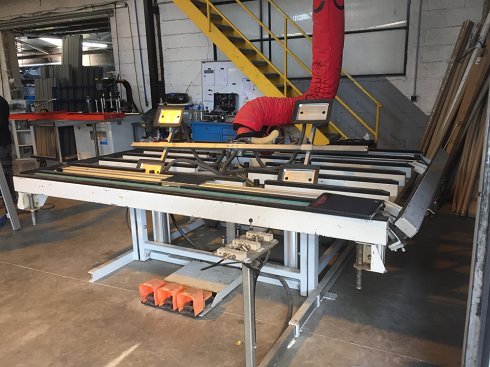

| Nombre | Glass assembly press - FOM S5000 - C2585 |
| Referencia cliente | C2585 |
| Marca | FOM |
| Modelo | |
| Año fabricación | |
| Detalles | Technical characteristics Glazing framingFitting of hardwareVertical roller support Height of fixed support surface: 900 mm Pneumatic tilt of the installation surface from 0° to 85°2 pressing beams (height: 80 mm) covered with ribbed rubber on the pressing sideMaximum frame dimensions: 2500 x 2500 mmMaximum load: 200 kgMinimum frame dimensions: 400 x 400 mmInstallation surface equipped with plastic profiles Indexable rotating crossCycle start by pedal Power and Motors Voltage: 400 VPluging: Three-phased Overall dimensions Lenght: 3000 mmWidth: 2400 mmHeight: 1000 mmWeight: 600 Kg |
| Estado | Segunda mano |
| Última modificación de la información | 14/09/2025 7:52:13 |
