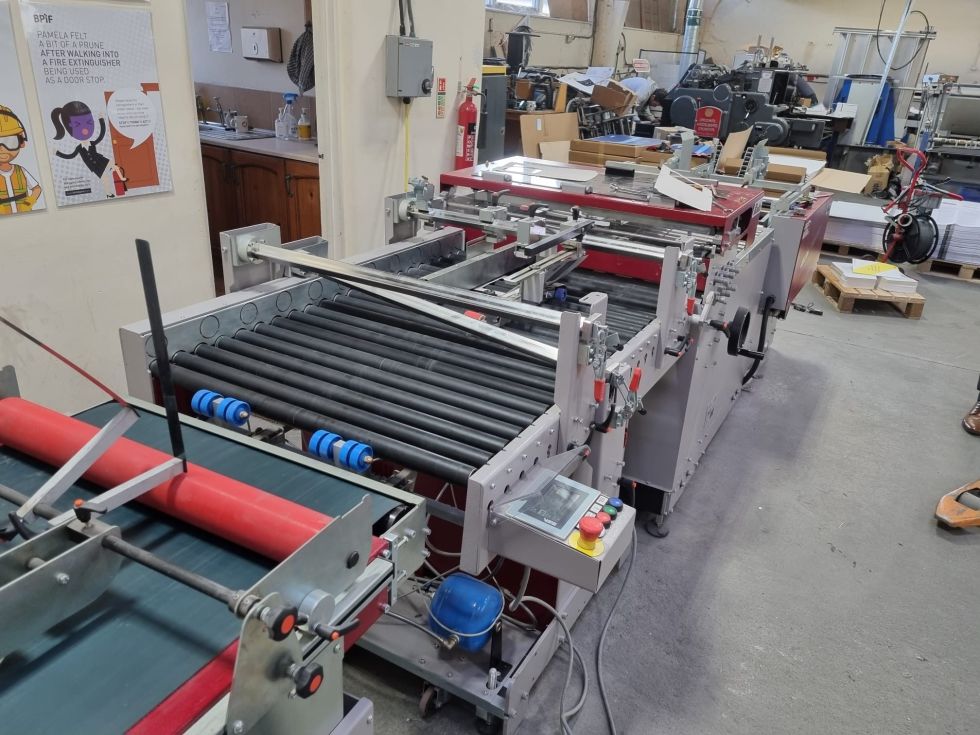

MINI METRO 78 FOLDER GLUER YEAR 2019

TECHNICAL SPECIFICATION

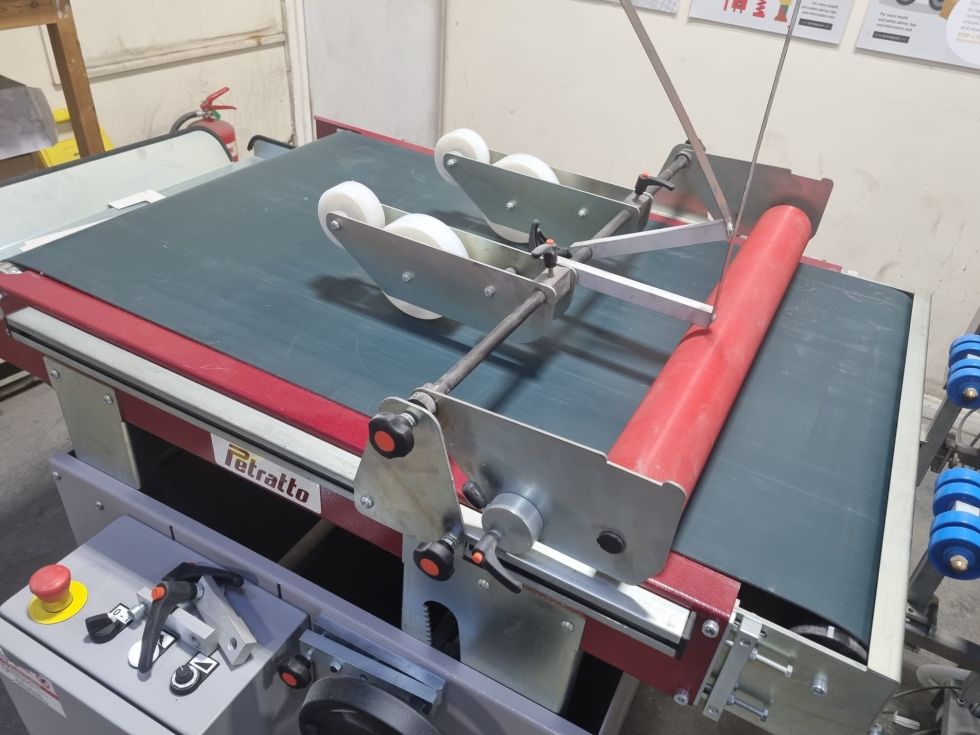

SD78A BELT FEEDER WITH VACUUM BELTS cm 78 (METRO LINE), continuous sheet feeder with the following features:
• Movable and indipendent machine
• Max. size: 78x78cm - min. size: 6x6cm
• Max. speed: 200 m/min
• Power consumption: kW 0.8
• Machine dimensions: 100cm length – 115cm width – 100cm height

WHAT CAN THE MINI METRO FOLDING GLUING MODEL DO
Straight-line boxes
Bands
Simple folders
Envelopes
Photo holders
CD Wallet
Double-sided adhesive tape application

SE782_ MODULO 1.3 |MINI METRO 78

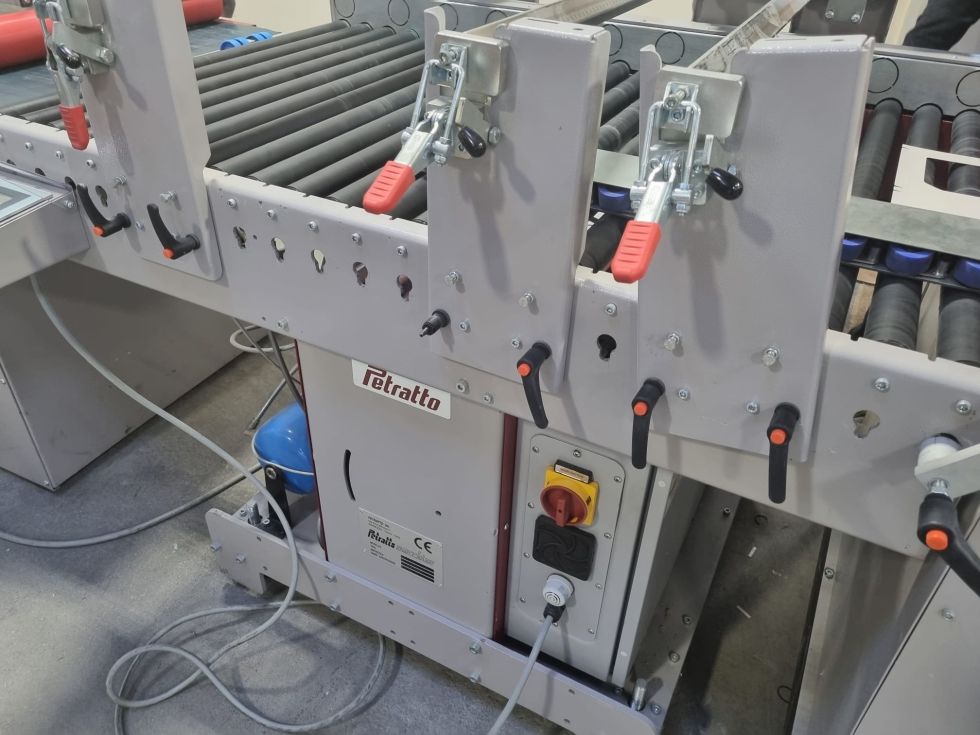

1.3 independent folding and gluing group (22 rollers)
• Working surface, width x length: 78 x 130cm
• Movable and independent machine
• 3 low bridges
• 2 complete sets of 4 self-aligning wheels device
• 3 complete sets of 7 self-aligning wheels device
• Rollers and free supports for various devices (10 extra spare sleeves)
• Max size: 78x78cm / Min size: 6x6cm, Max speed: 200m/min
• Power consumption: 1.5kW, compressed air consumption: 100 l/min
• Dimensions: 130L x 110W x 130H (cm)

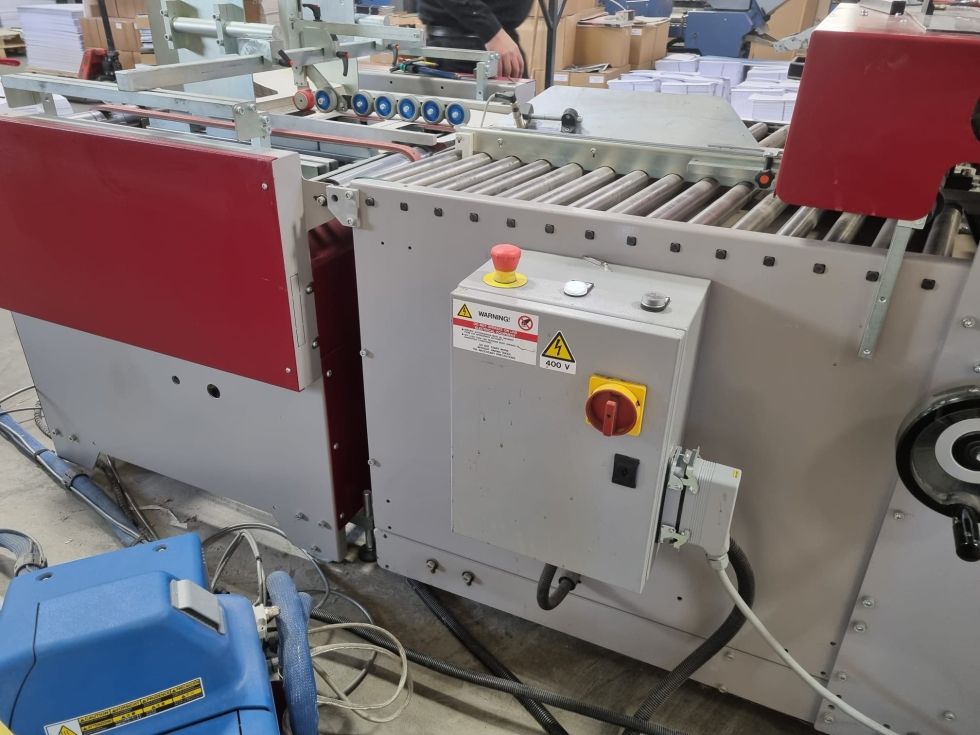

SETAS MINI METRO COMPLETE ELECTRIC CABINET FOR MINI METRO

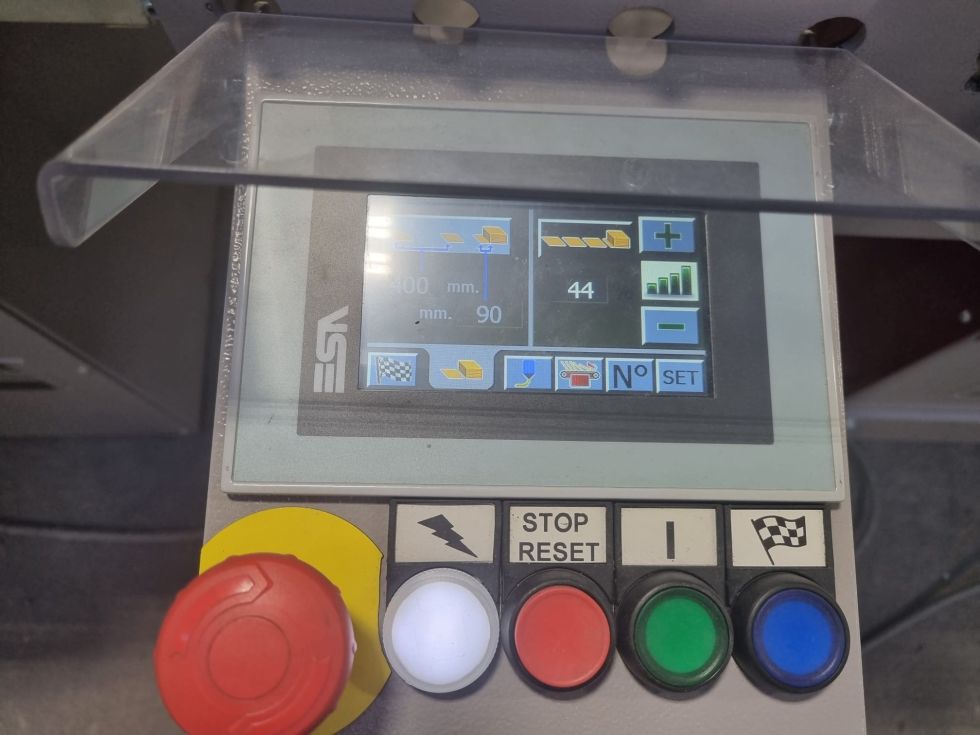

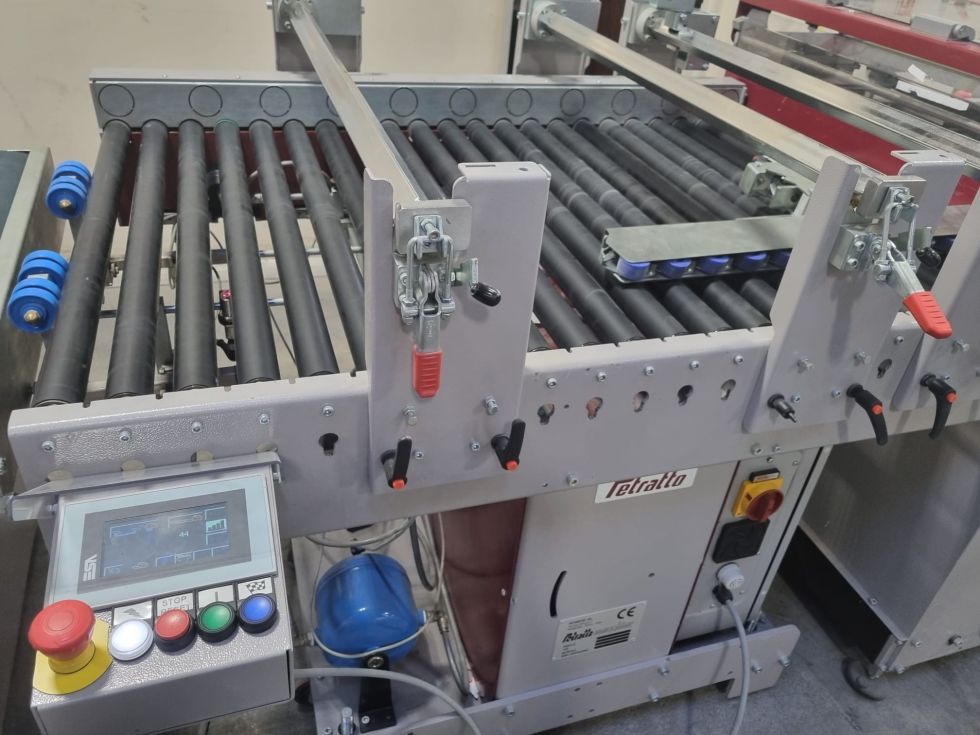

• Colour touch-screen to program all working functions and events
• 4 24V channels (4 programmable events for each channel)
• 3 photoelectric cells to set up events and check products
• Encoder
• Batch counter, batch separation through acceleration of the carpet
• Digital connection with linked machines (feeders, deliveries, extra modules)

SE04-2B Small folding right & left ploughs with 2 complete transport sets of 7 self-aligning wheels
• Flap size: min 1cm / max 10cm
SE04-9
Middle folding right & left ploughs with complete transport belts
• Flap size: min 1.5cm / max 15cm

SE05-1 Blower folds discriminator size 78
SB05-D Standard Tipper – Upper folding buckle plate for hseet/cardboard from 150-550gr – Size 52cm
• Min fold height: 3cm
Max fold height: 30cm
SE20B: Independent tool holder equipped with wheels
SC10L Shingle Delivery Unit 700 with the following features:
• Movable & independent machine
• Upper and understacking stream
• Programmable batch counter from the panel machine connected
• Max size: 70x78cm / Min size: 15x20cm
• Max speed: 40 m/min (1575 ipm)
• Power consumption: 0.5kW
• Machine Dimensions: 160L x 90W x 80H (cm) adjustable
IC-40 Nordson: Hotmelt gluing system, 2 exits (option 4) 5kg electrical consumption 2kW, Mod. Nordson
SE12: Double adhesive tape applicator
• Tape max width: 25mm (1”)
• Tape min width: *10mm / for tear strip 4.5mm (*smaller sizes available upon request)
• Max Speed: 45 m/min
• Solenoid valve: 12/24V
• Blade movement controlled by pneumatic cylinder
• Compressed air: 2.5/3 bar
• Max external diameter of the coil: 350mm (+/- 500 metres)
• Internal diameter of the coil: 75mm
• Min length application: 10mm
• Application tolerance: +/- 1mm
• Weight: 5.8kg

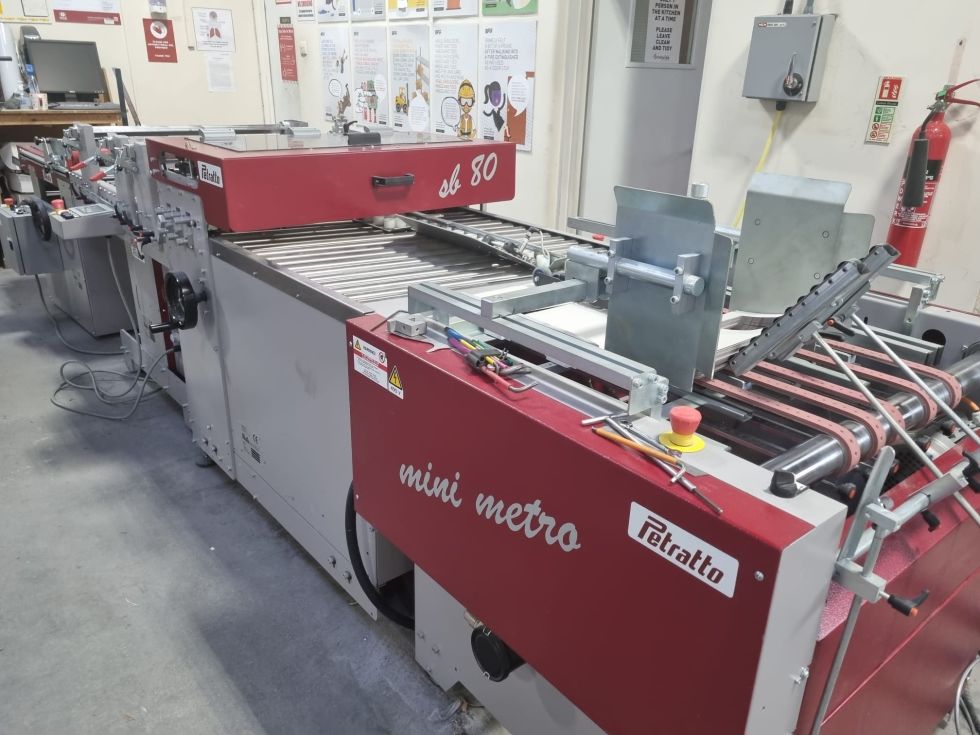

SB80 Rollers registering attachment for creasing, perforation & cut,
Max size: 800mm
• Max Speed: 80 m/min
• Min Size: 12x12cm
• Max Size: 80x80cm
• Machine Dimensions: 130L x 110W x 100H cm
